85-40-30 Belt Tensioner – Roller
85-40-31 Removal of the Belt Tensioner – Roller
1. Remove the v-ribbed belt - refer to Chapter 85-40-11.
2. Remove the screw [1] from the roller.
3. Remove the roller.
85-40-32 Installation of the Belt Tensioner – Roller
1. Install the new roller
2. Torque the screw [1] with corresponding torque (see picture below) using Loctite
243.
When using Loctite, make sure, that the thread is free of grease and apply only a thin
film of Loctite.
3. Install the v-ribbed belt - refer to Chapter 85-40-12.
4. Perform an engine ground run according to Chapter 71-00-03.

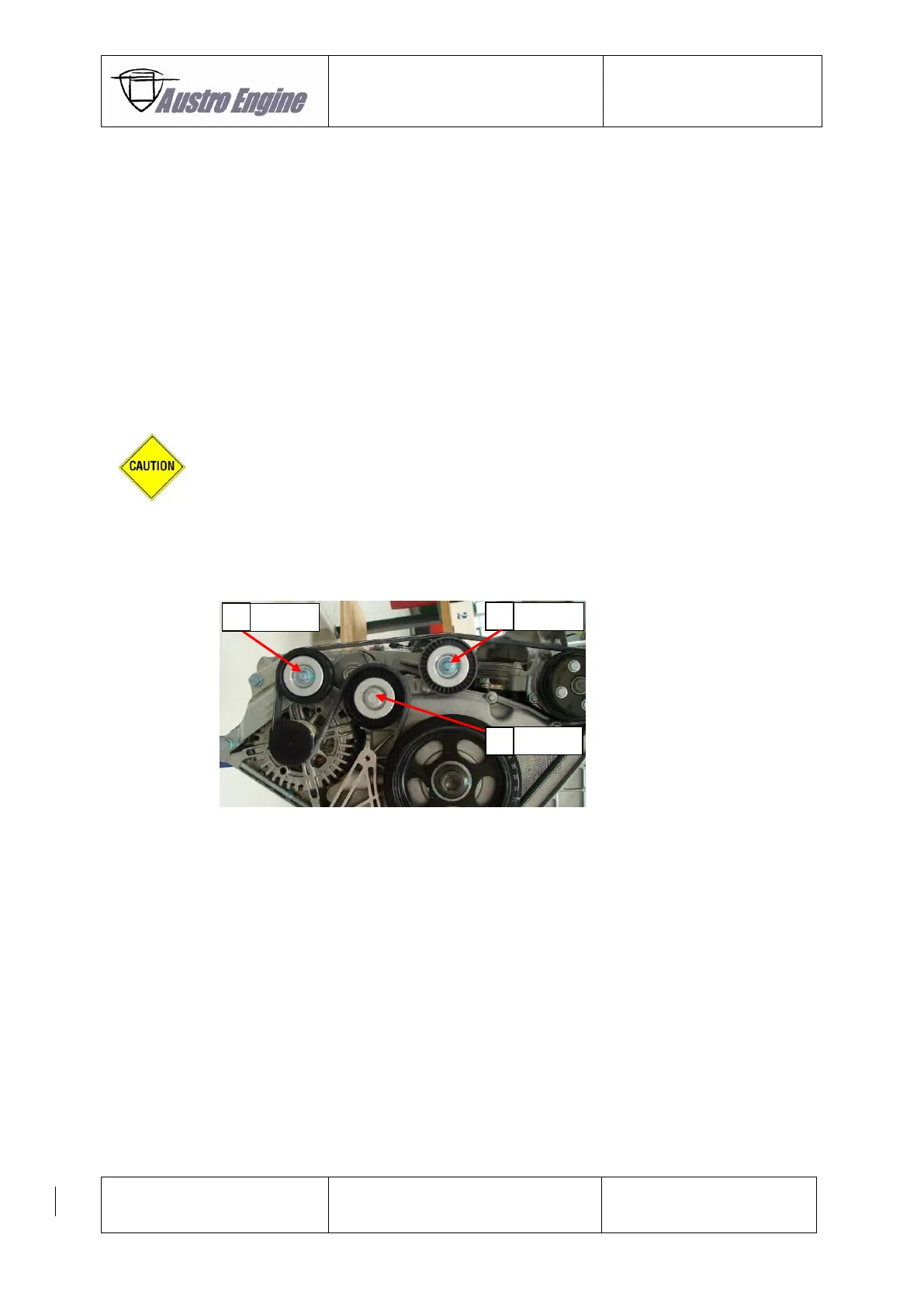

Fig. 85 - 96
