85-10-65 Inspection
Overview:
To describe the investigation points an overview of the two-mass-flywheel is given in the following
picture. The flywheel is build up out of two discs (masses) which are connected together with springs
at the inside of the bigger disc. The bigger disc with the starter and pick up ring is called primary
mass and sign with the number 1 (E4A-73-300-201-002) in the following figure. The smaller disc
signed with the number 2 (E4A-73-300-202-010) is named secondary mass.

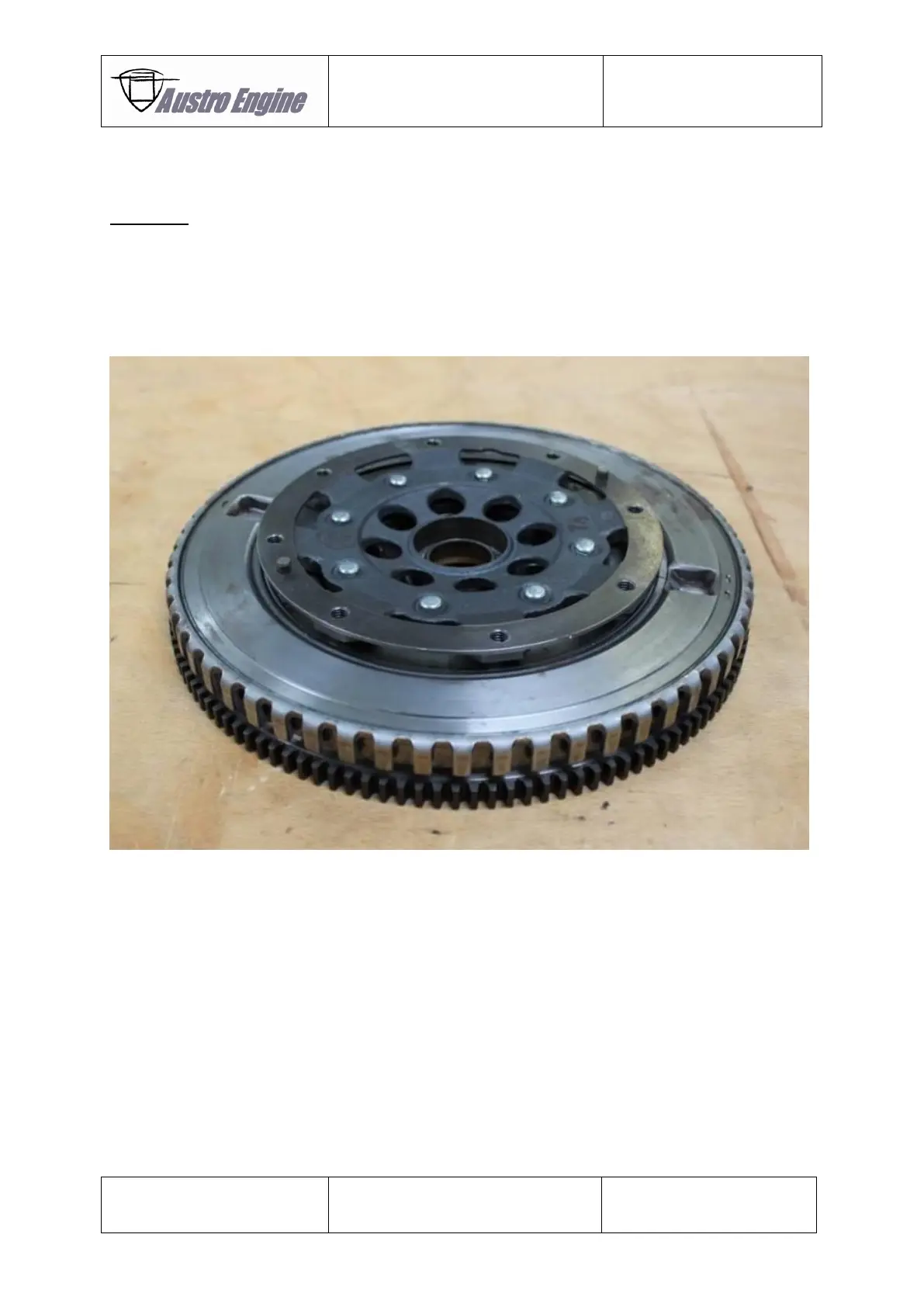

Fig. 85 - 35 Two-Mass-Flywheel (Front side)
