Austro Engine AE330 User Manual

Maintenance Manual
E4.08.04
Issue date: 14-Apr-2015
Page: 85-23
Revision no: 25

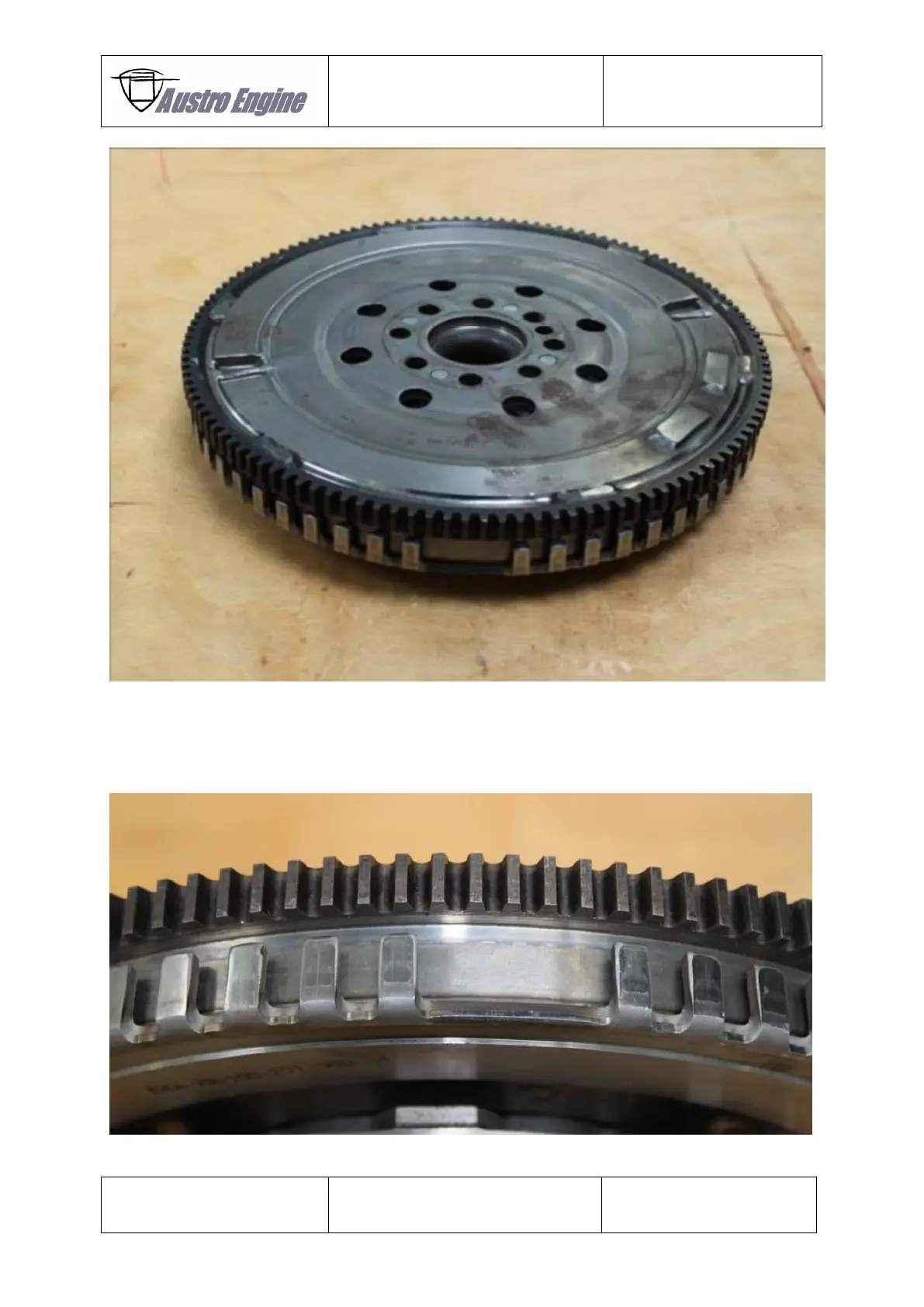

Fig. 85 - 36 Two-Mass-Flywheel (Back Side)
Starter and Pick-up ring:
Starter and Pick-up ring are located at the outside contour of the primary mass. The pick-up ring has
a gap of two teeth which are required for engine speed measuring.
Fig. 85 - 37 Starter (1) and pick-up ring (2, with gap) at the outside contour of the primary mass.
1
2
