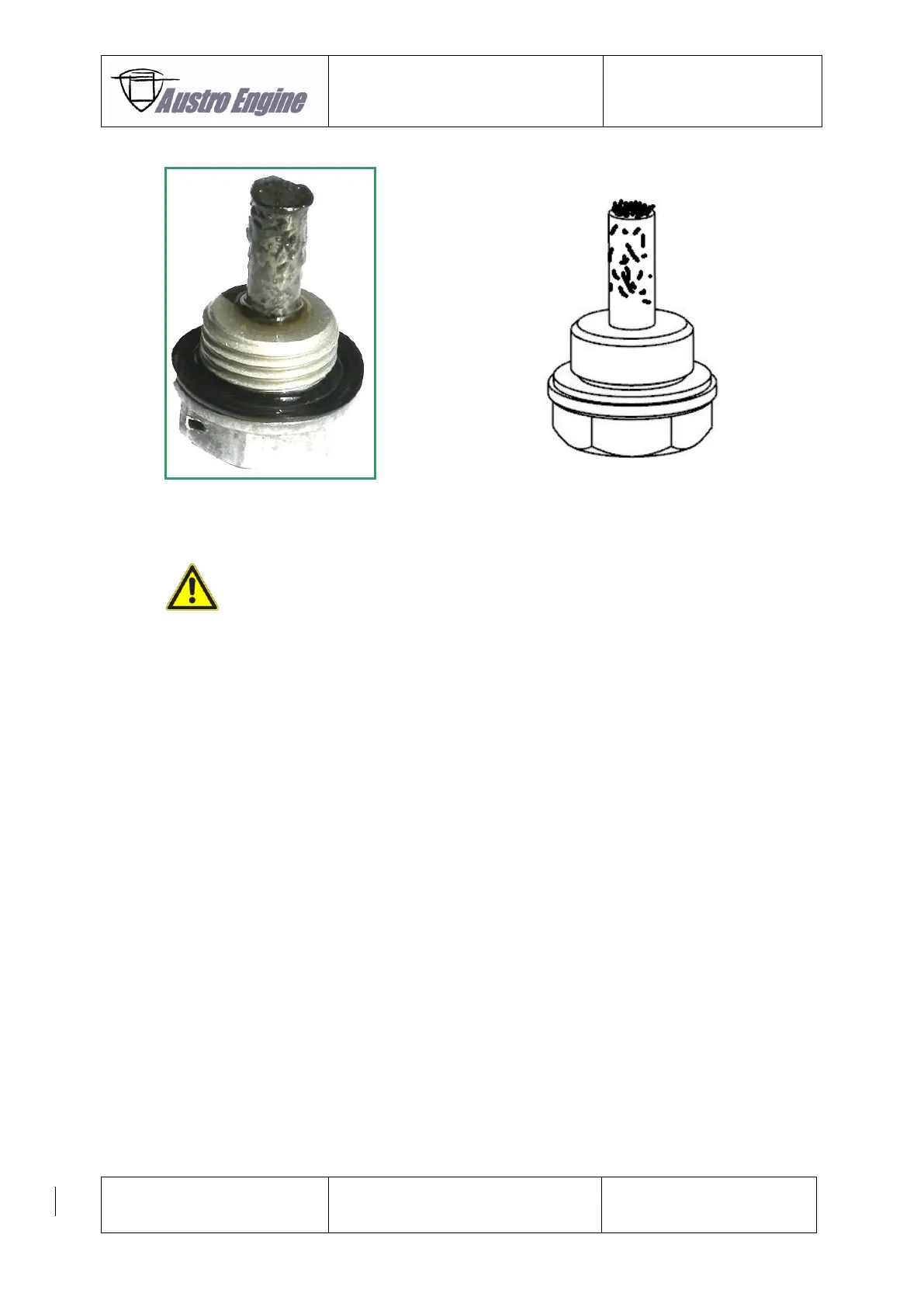

Fig. 85 - 21
Accumulation of allowable debris
Following types of particles are allowable:
- Small quantities that are like thin pieces of hair (see Fig. 85 – 20).
- Small quantities that are like powder (see Fig. 85 – 21).
Following types of particle are not allowable:
- Large quantities that are like thin pieces of hair.
- Large quantities that are like powder.
- Particles that are like flakes.
- Particles greater than the above mentioned.
9. Clean the magnet drain plug [2].
85-10-22 Installation of the Gearbox Magnet-Drain Plug
1. Inspect the gaskets, if worn, use a new gasket.
2. Lubricate the gasket.
3. Install the magnet drain plug and torque the plug with 12 Nm.
4. Secure the magnet drain plug with safety wire.
5. Refill the gearbox oil – refer to Chapter 85-10-53.
6. Screw on the gearbox filler plug with 12 Nm [1] and secure it with safety wire.
