Austro Engine AE330 User Manual

Maintenance Manual
E4.08.04
Issue date: 14-Dec-2015
Page: 24-5
Revision no: 26
24-30-31 Tools necessary
Number
Description
Dimensions
1
Screw Driver
Slotted Screw Driver (~2mm)
2
Thin Metal
Sheet
~0,3mm x ~8mm
3
Sliding Caliper
---
4
Multimeter
---
5
Wrench
(hexagonal)
Size 8
6
Wrench
(hexagonal)
Size 7
24-30-32 Removal of the Brush Holder Assembly
Remove the two screws G and G2.
Remove the black plastic cover on the back side of the alternator with wrench size 8.

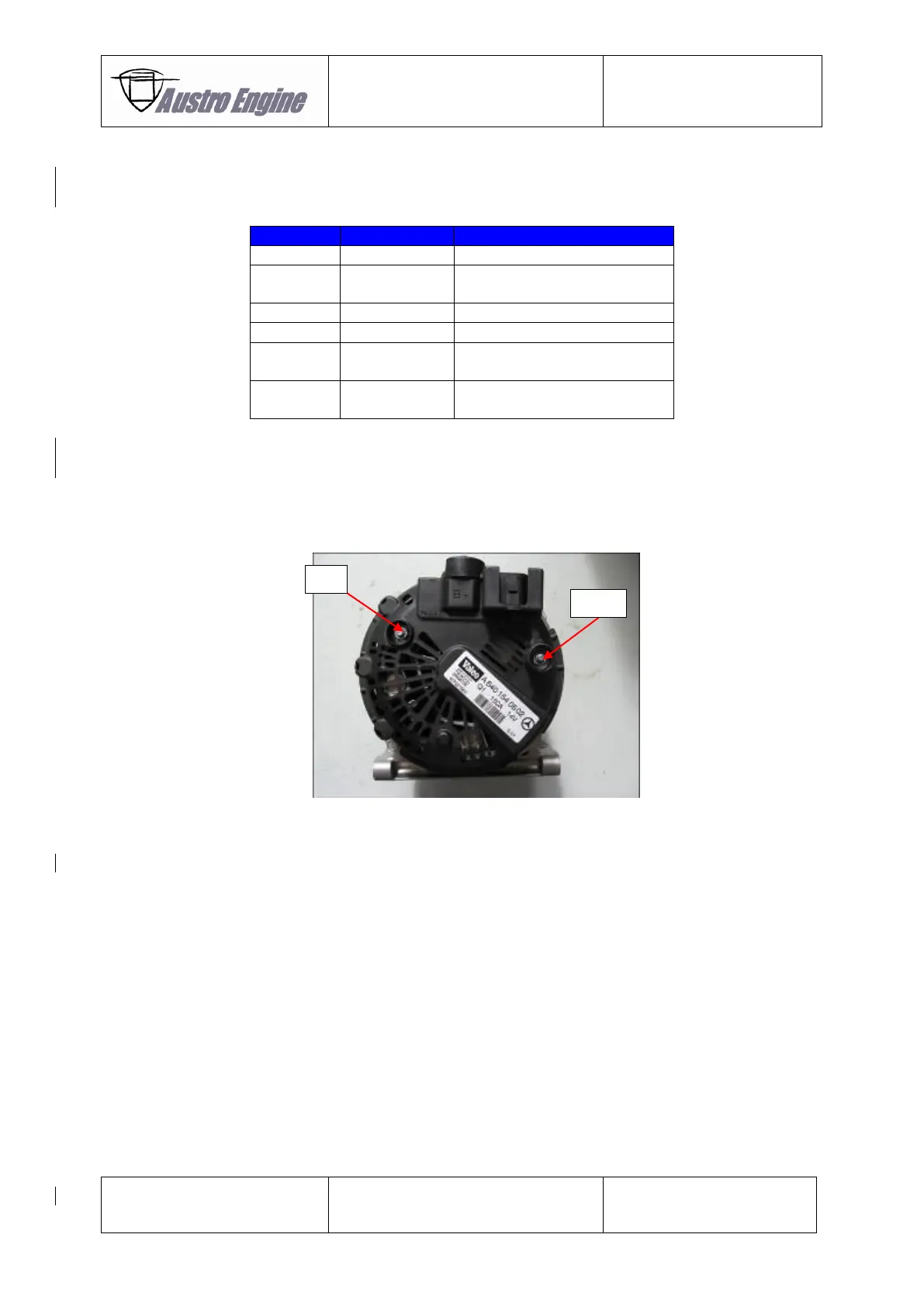

Fig. 24 - 4 Alternator back side
Remove R1, R2 and R3 with wrench size 7.
Remove brush holder assembly E4A-91-300-000 carefully.
G
G2
