Maintenance Manual
E4.08.04
Issue date: 14-Dec-2015
Page: 24-12

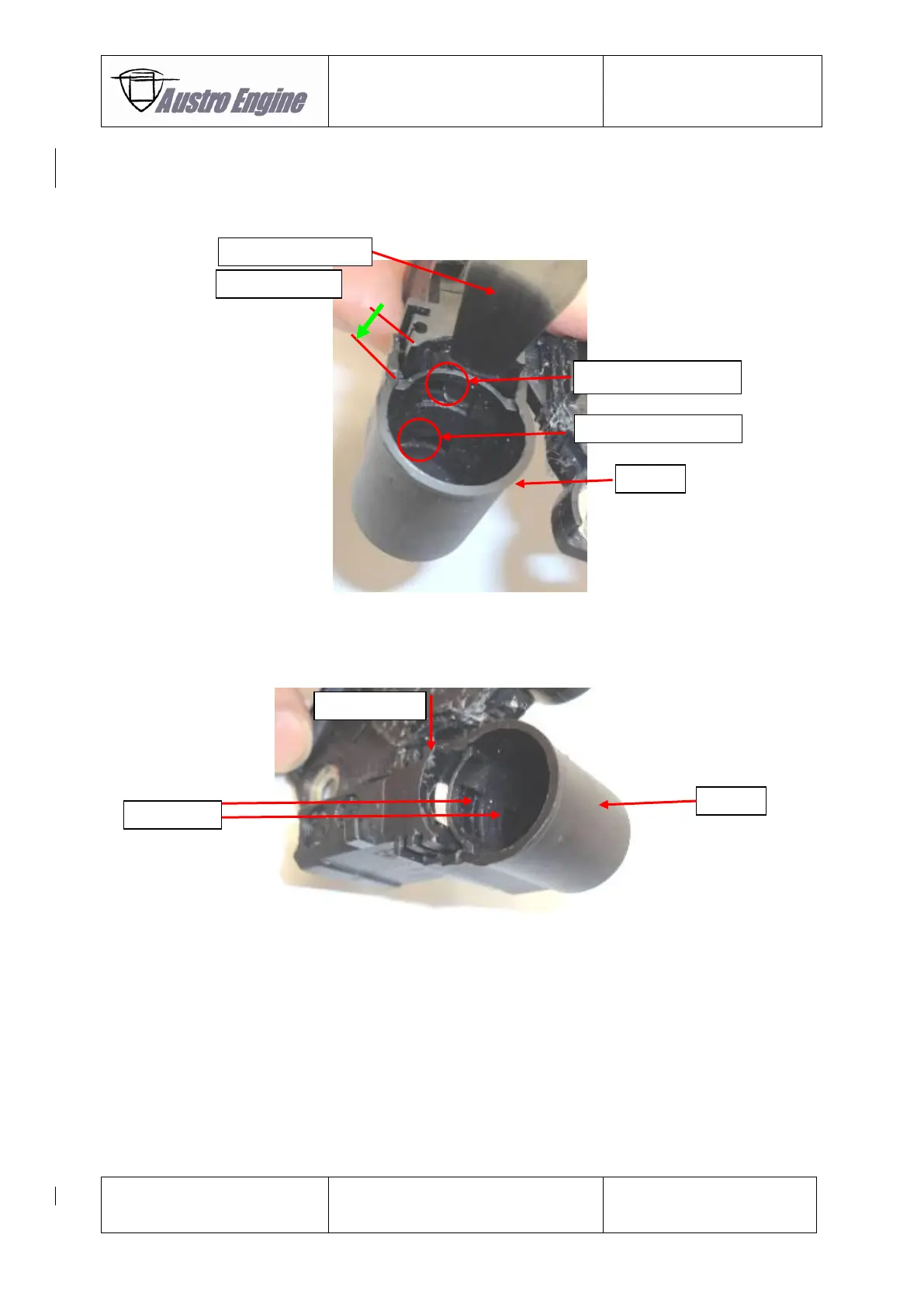

24-30-38 Completion of Brush Holder
Press down the brushes with metal sheet and place the cover into the brush holder.
Fig. 24 - 14 Brush holder
Don’t push the cover down to the end position. Cover rib must hold the brushes down in mounting
position.
Fig. 24 - 15 ASSY Brush holder E4A-91-300-000
with brushes pushed back in mounting position
Cover Rib
Cover
End Position
Thin Metal Sheet
Push Direction
Cover
Upper Brush Position
Lower Brush Position
