85-30-57 Installation of the camshafts
Pairing of a standard camshaft with an alternative camshaft is not permitted!

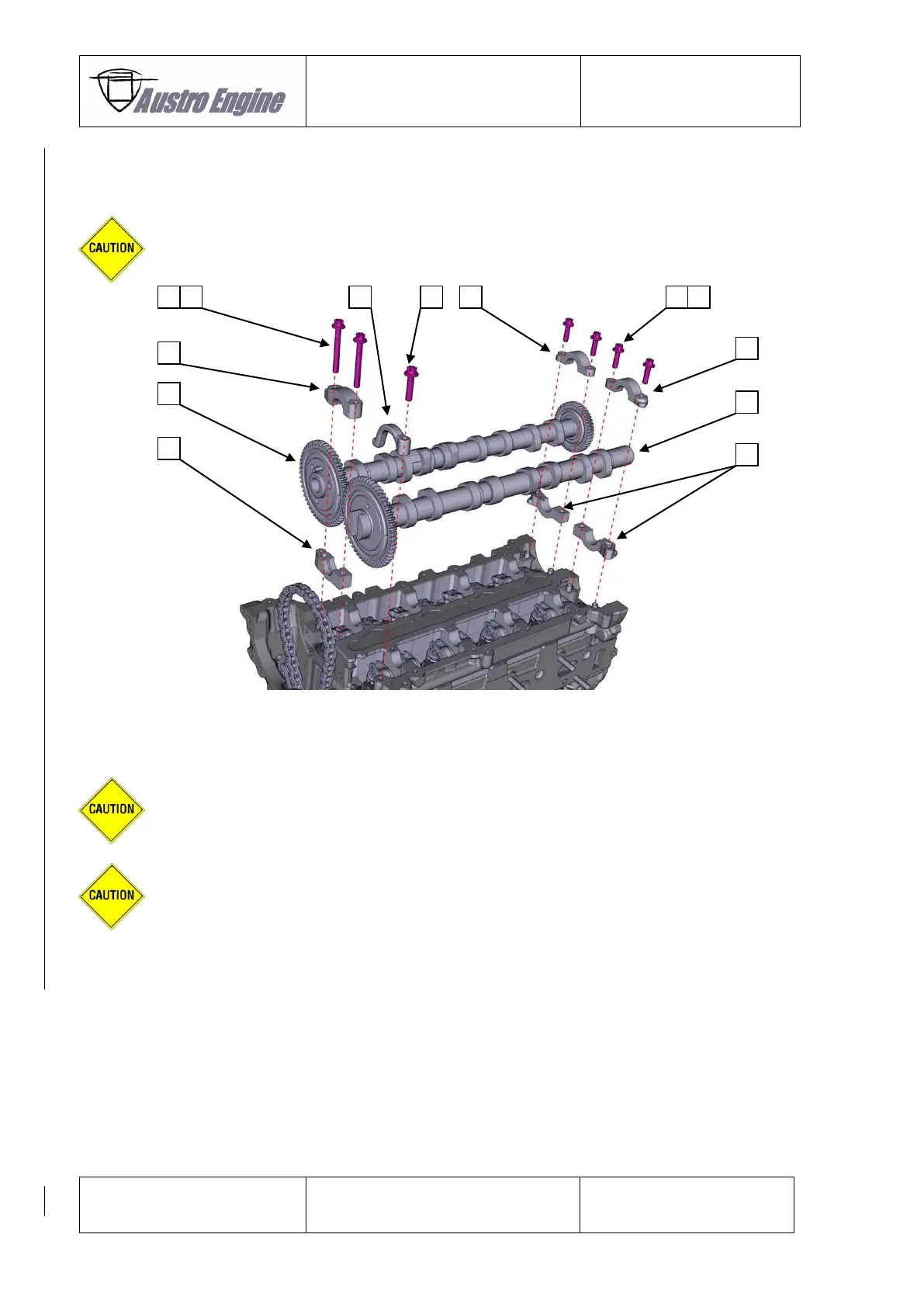

Fig. 85 - 81
1. Insert the front [01] and back camshaft bearing brackets [05] in the cylinder head.
2. Carefully put the camshafts [09] and [10] in position.
The camshafts are very breakable!
The camshafts must be positioned using the marks on their gears. The markings on the gears
must be exactly opposite. Therefore for the cylinder #1 the ignition is set to top dead center.
3. Insert the camshaft locking tool (tool number AE300T-009).
