85-10-32 Installation of the Gearbox Oil Filter

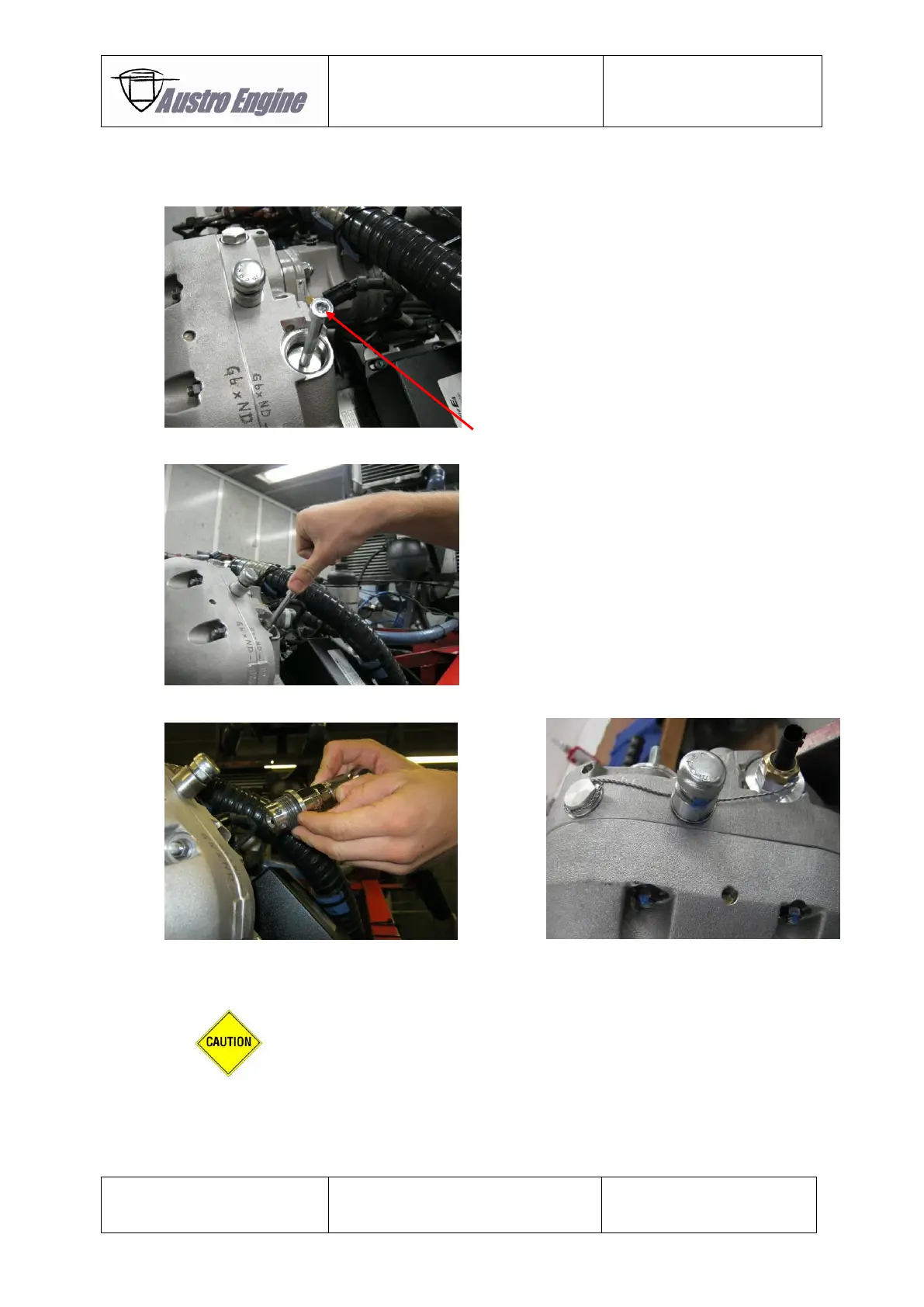

Fig. 85 - 24 Filter [2] installation with screw (e.g. M8x50 or longer)
Fig. 85 - 25 Check for tightness
Fig. 85 - 26 Plug screw [1] Fig. 85 - 27
1. Install the oil filter [2] with the tool
Check the filter for tightness -> Risk of damage!
2 Screw the plug screw [1] with 25 Nm and secure it with safety wire.
If gearbox Rev. 70 to Rev. 90 is installed on an E4-B or E4-C engine, install gearbox
temperature sensor according to chapter 85-10-40 instead of plug screw.
