Maintenance Manual
E4.08.04
Issue date: 14-Dec-2015
Page: 24-14
24-30-39 Completion of Alternator (Integration of Brush Holder)
If the brushes are not pushed back into the assembly position, it is not possible to
mount the brush holder assembly E4A-91-300-000.

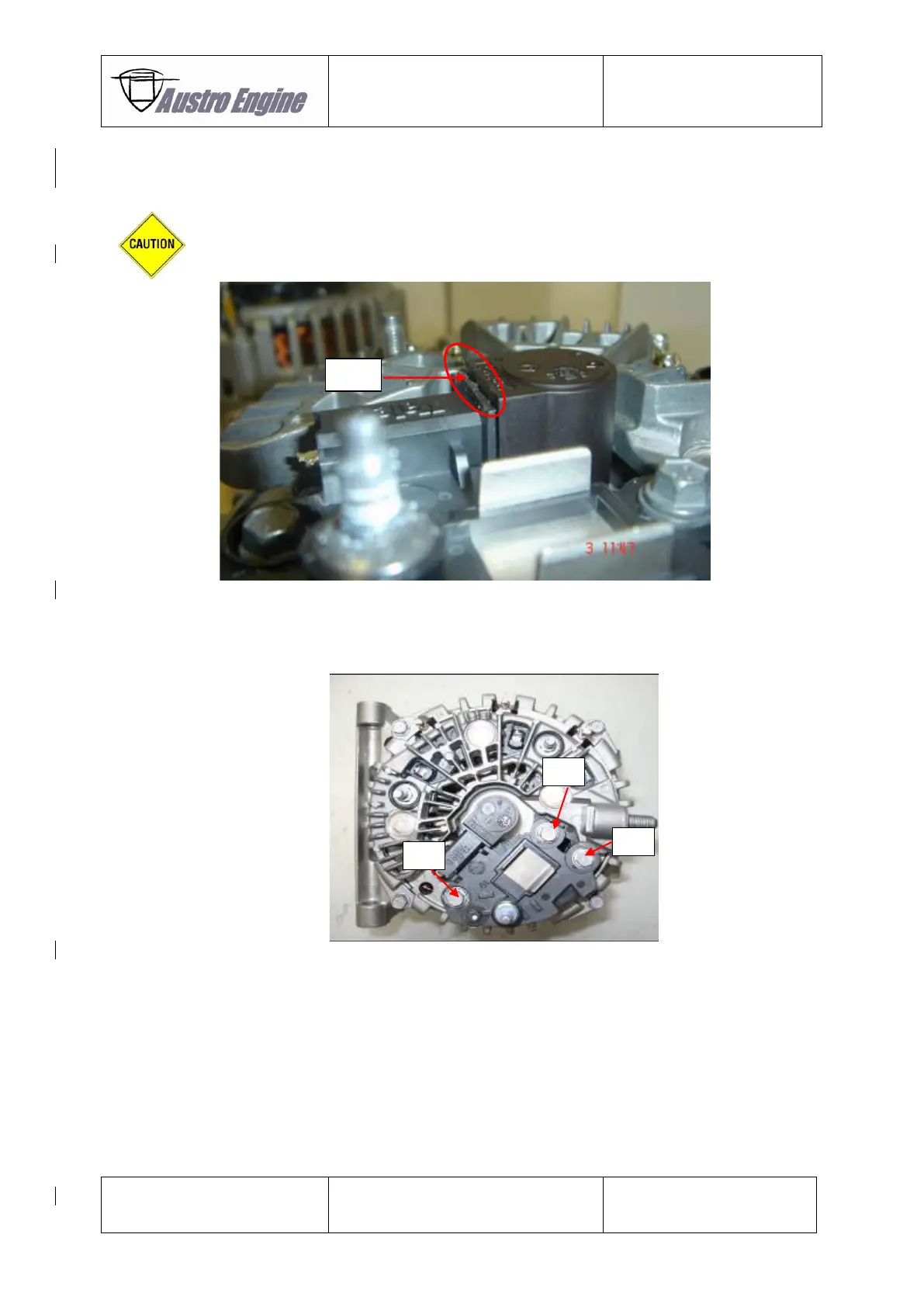

Fig. 24 - 17 Brush holder assembly mounted onto the alternator
(brushes are not released)
Assemble the brush holder with screws R1; R2 and R3 using fastening torque 4Nm +/-0,5.
Fig. 24 - 18 Alternator with brush holder assembly fixed
R1
R2
R3
Gap
