Push down the cover to its end position.
Brushes are released only if the cover reaches the end position.
If the cover is not pushed down to its end position, the carbon brushes won’t be released.

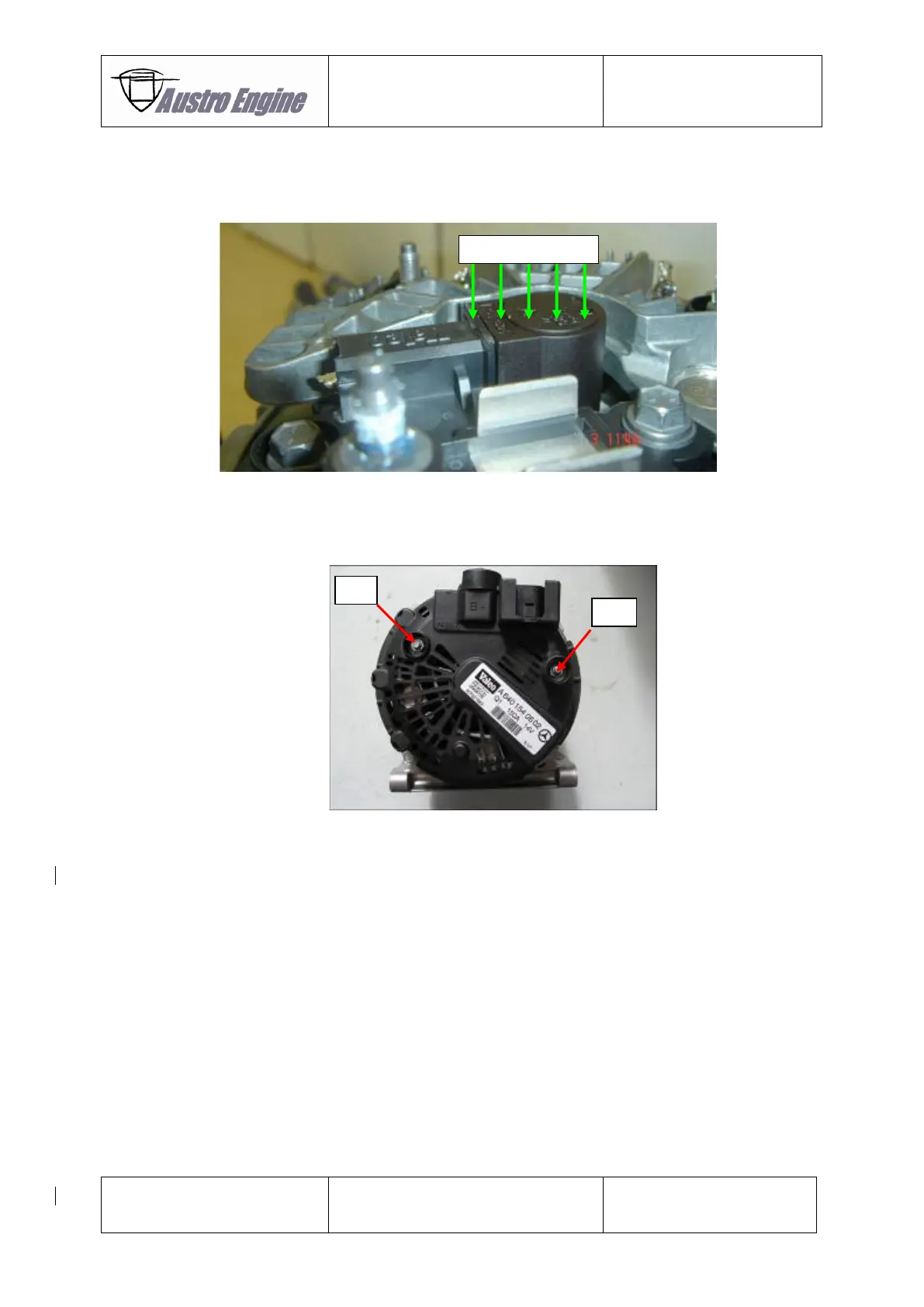

Fig. 24 - 19 Cover at end position
Place the black plastic cover of the alternator on the alternator backside.
Screw down the hexagonal screws G and G2 using fastening torque 4Nm +/-0,5Nm.
Fig. 24 - 20 Cover at end position
After reassembly the alternator has to be functional checked. Therefore continue with chapter
24-30-40 Functionality Check.
