Austro Engine AE330 - Repair of the Engine Wiring Harness E4 A-90-000-000; Exchange of Connector to Intake Air Temperature-Sensors

Maintenance Manual
E4.08.04
Issue date: 14-Apr-2015
Page: 71-49
Revision no: 25

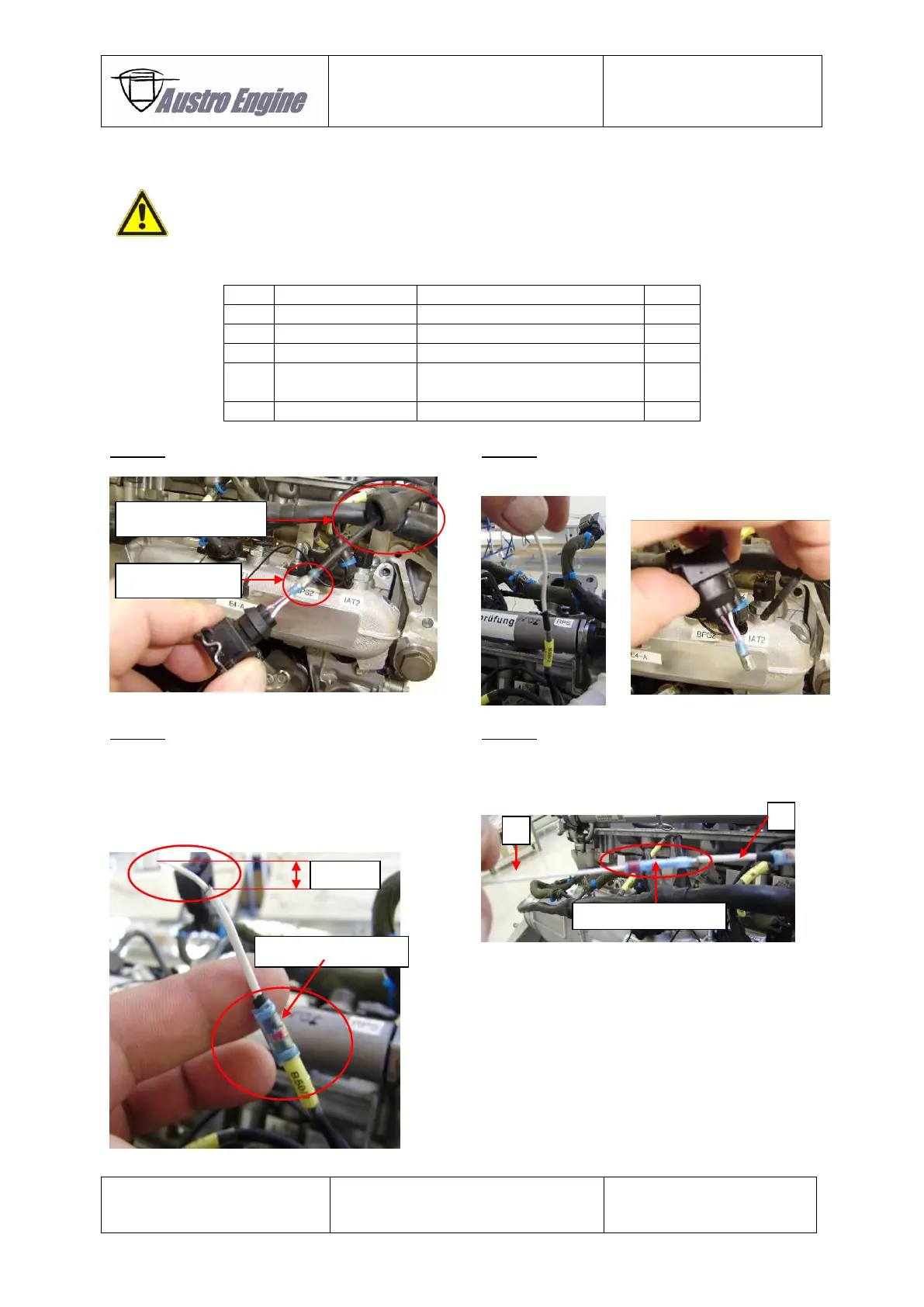

71-50-800 Repair of the Engine Wiring Harness E4A-90-000-000
Herein described repair procedures for exchange of connectors can only be conducted once.
71-50-801 Exchange of Connector to “Intake Air Temperature”-Sensors
Pos.
Partnumber
Description
Qty.
1
E4A-90-R16-000
Assy Repair Kit Cable
1
2
-
Cutter
1
3
-
Hot Air Gun
1
4
-
Crimp Tool for
TE (Tyco) D-436-36 crimp
1
5
-
Multimeter
1
Step 1:
Remove the protective sleeve.
Step 2:
Cut off the “damaged” part at the solder sleeve. The
old connector will not be used for repair.
Step 3:
Remove approx. 10mm (± 2mm) of the insulation
with shielding of the remaining wire. Put the solder
sleeve over the cable of the remaining engine
harness. The solder sleeve will be needed for
electrical connection as described at step 6.
Step 4:
The inline crimp shall be used to connect the single
wire (2) of the remaining engine harness, and the
white single (1) wire of the repair kit cable E4A-90-
R16-000.
Protective Sleeve
Solder Sleeve
Inline Crimp
1
2
Solder Sleeve
10mm
