Austro Engine AE330 User Manual

Maintenance Manual
E4.08.04
Issue date: 14-Apr-2015
Page: 71-57
Revision no: 25

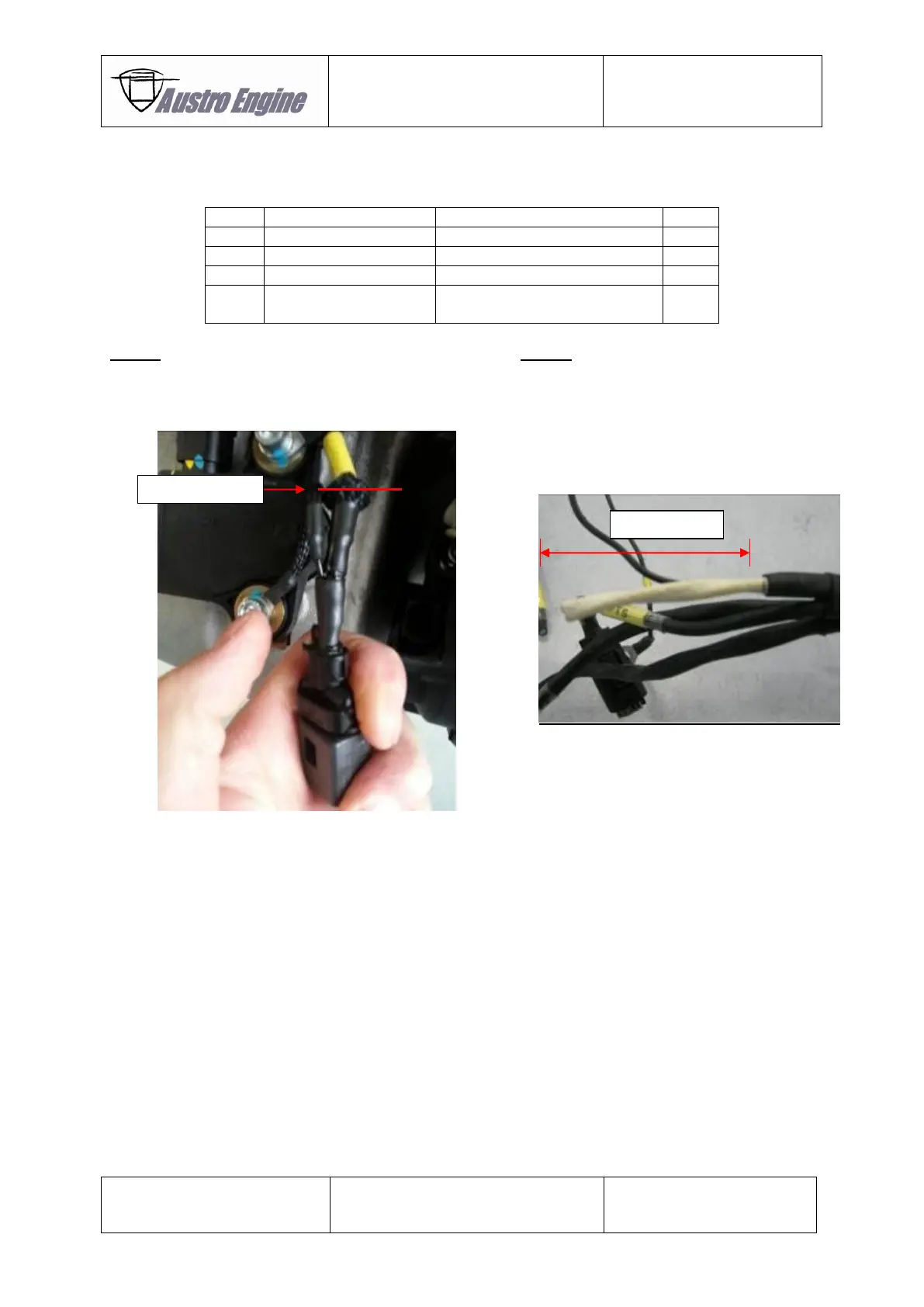

71-50-805 Exchange of Connector for Alternator E4A-91-000-000
Pos.
Partnumber
Description
Qty.
1
E4A-90-R22-000-000
Assy Repair Kit Cable
1
2
-
Cutter
1
3
-
Hot Air Gun
1
4
-
Crimp Tool for
TE (Tyco)D-436-37 crimp
1
Step1:
Cut off the “damaged” part at the solder sleeve of the
engine harness. The old connector will not be used for
repair.
Step2:
(The following pictures are example pictures, to
detail the repair instruction)
Remove the black insulation as shown in the
picture below. (~50mm from remaining
harness).
Solder Sleeve
50mm (+5)
