1. Install the bracket with the M6 bolts [2] and torque them with 7 Nm.
2. Chose a suitable air pressure device (see Fig. 81 – 4) as described in
Chapter 81-00-32.
3. Attach the chosen device to the top of the waste gate controller and apply pressure
till the rod starts to move. Do not excess a pressure level of 3,5 bar.
4. Connect rod to waste gate lever.
5. Adjust waste gate controller – refer to Chapter 81-00-32.

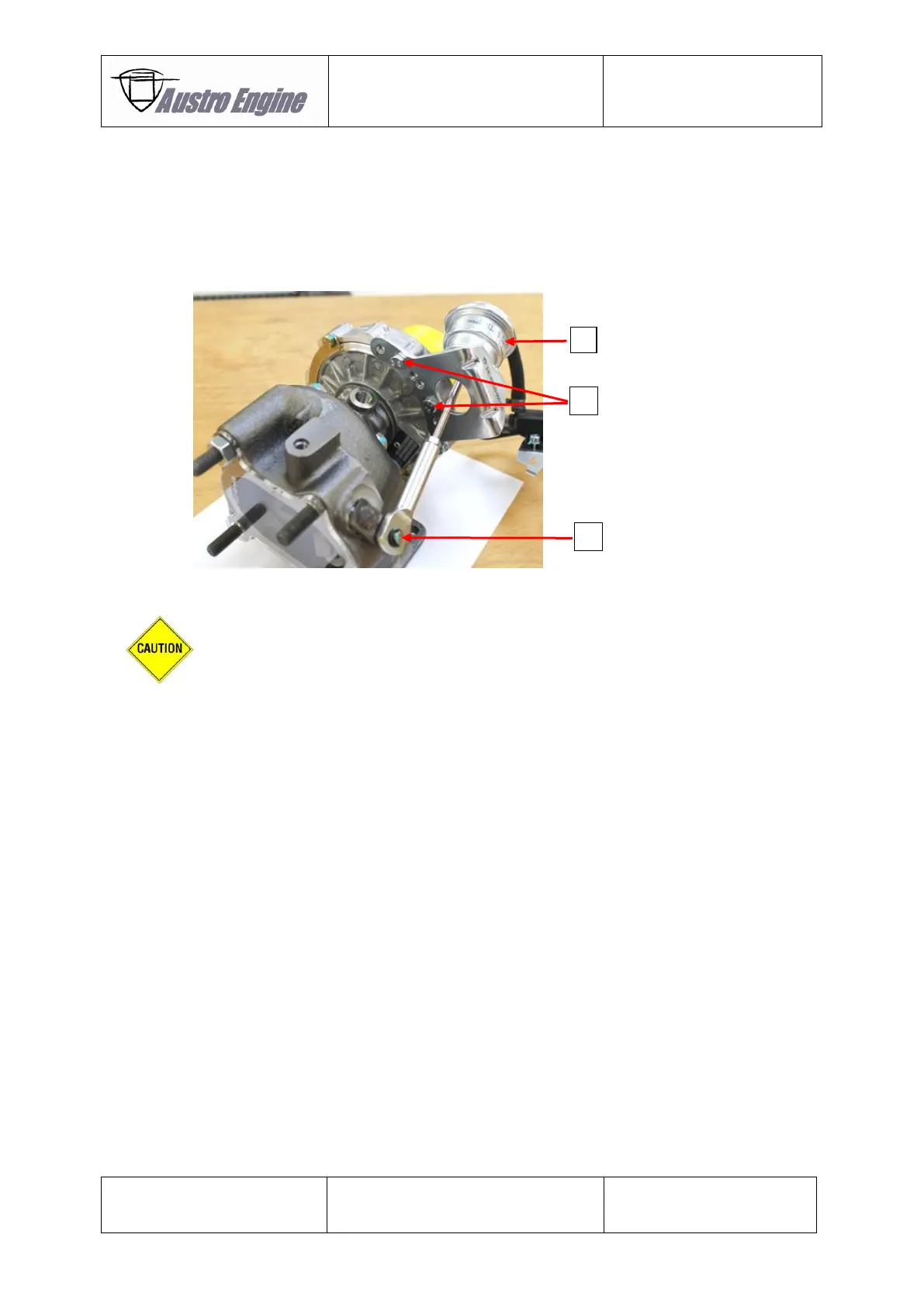

Fig. 81 - 2 E4A Turbo Charger
Note: For fixing of the rod on the waste gate lever use new circlip.
