Maintenance Manual
E4.08.04
Issue date: 14-Apr-2015
Page: 71-32
Revision no: 25

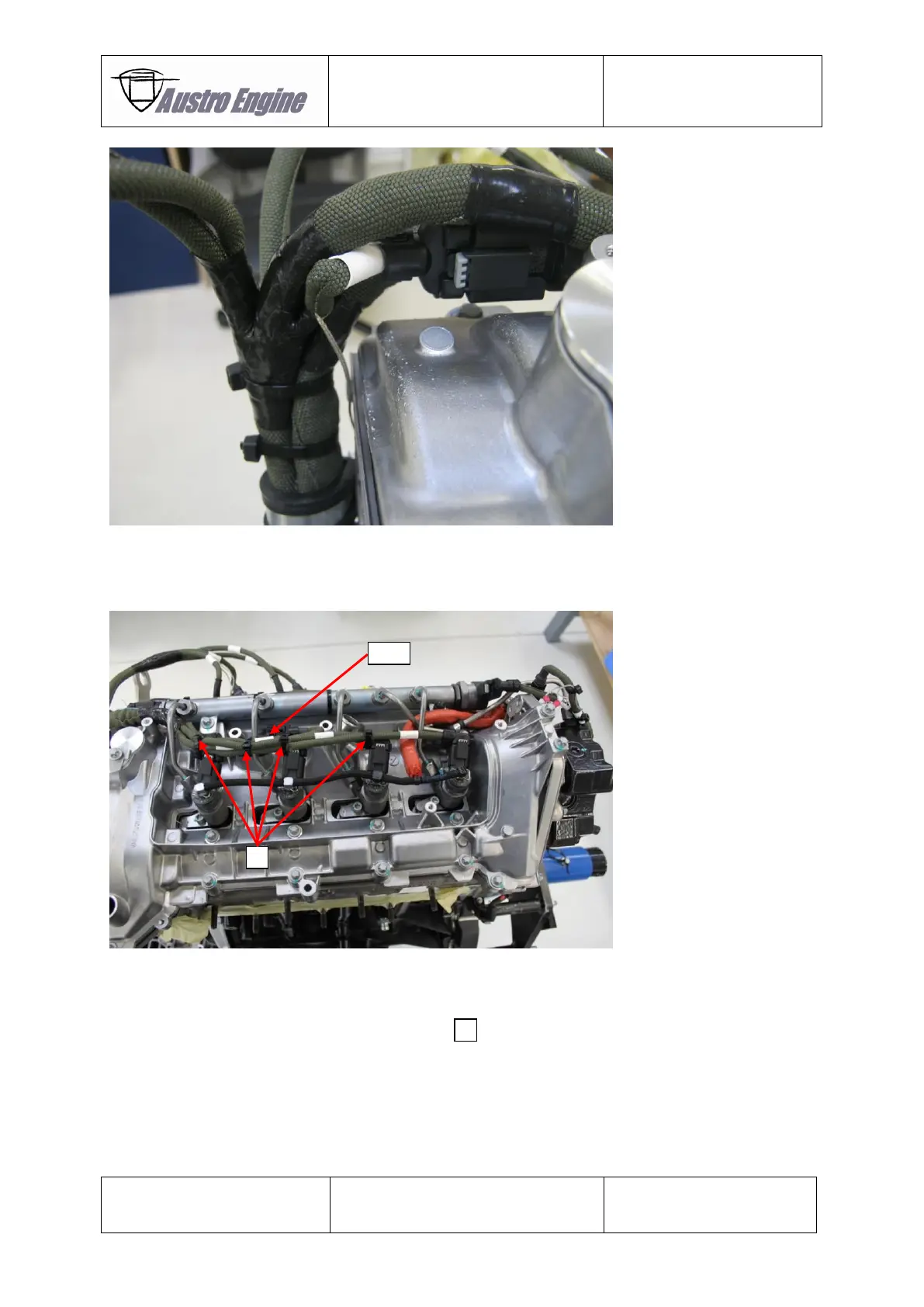

Fig. 71 - 38
A clamp which is mounted to the lifting eyelet (12 Nm) is used for fixation wiring harness and RPS
pigtail as shown at Fig. 71 -35.
Fig. 71 - 39
The wiring harness has to be placed above the pipes for each injector. CAS1 pigtail has to be
connected to the fastening screw (14 Nm) of CAS1.
The wiring harness has to be fixed with cable ties in the near of injector plug.
03
03
CAS1
