For the engine harness E4A-95-000-000 and E4B-95-000-000 the fuel pressure sensor
(FPS) and fuel pressure sensor cable have to be covered by an additional shielding (E4A-
95-100-000), which is provided with the engine if applicable.
If the engine harness E4A-90-000-000 is installed this procedure is not applicable.

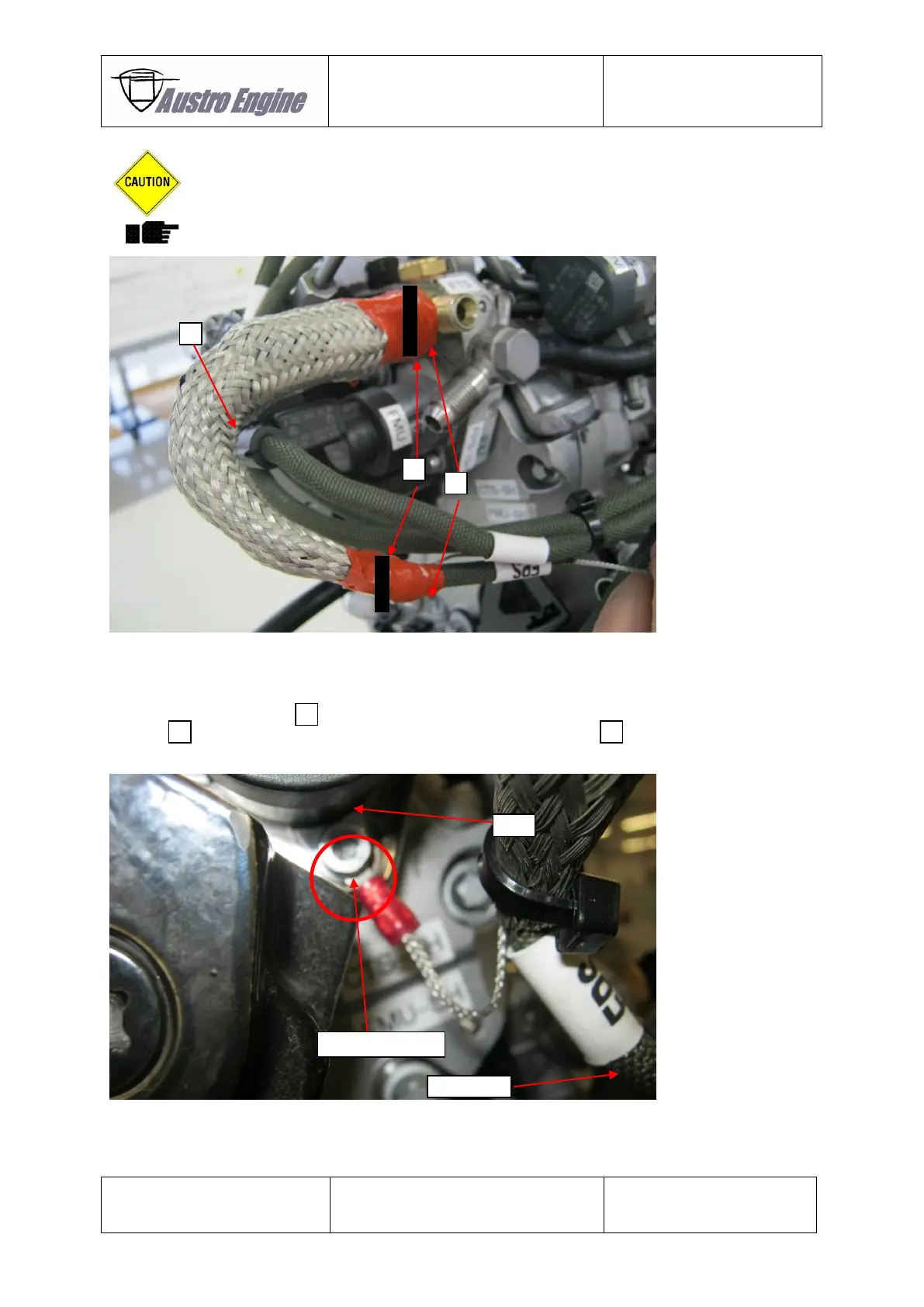

Fig. 71 - 48
Fuel pressure sensor and the fuel pressure sensor cable have to be equipped with an additional
shielding as shown in picture Fig. 14. 2. Therefore cover the fuel pressure sensor and fuel pressure
sensor cable with a netting , RAY-90-25.0 with the length of 180mm. At each end of the netting a
cable tie is used to fix the netting. At each end of the netting a tape can be used to avoid
splicing.
Fig. 71 - 49
The pigtail connector of FPS has to be connected to the mounting screw of the FMU as shown at Fig. 71 – 49
