Maintenance Manual
E4.08.04
Issue date: 14-Dec-2015
Page: 85-78
Revision no: 26

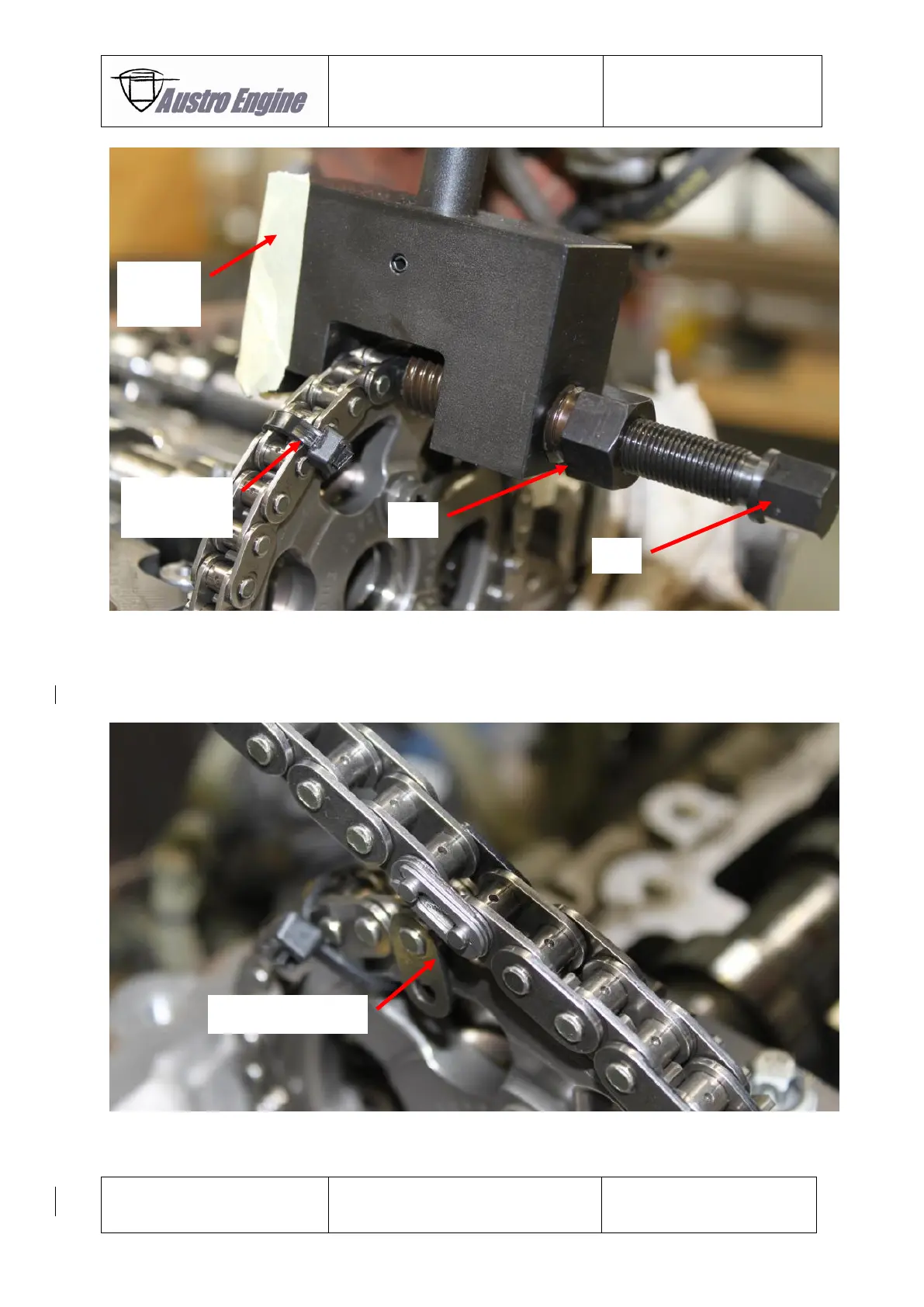

Fig. 85 - 105 Position of the chain opening tool at the chain wheel
ï‚· Connect the new timing chain with the replacing timing chain by use of a chain coupling
(AEP-00160). Position the chain in a way that the holes in the pin sleeves of the link are
on the outside of the chain as shown in Figure 85 - 106.
Fig. 85 - 106 Connection of both chains via link
Cable
retainer
1
2
Duct
tape
AEP-00160
