Chapter 7. PARAMETER SETUP
No. Item Code Item
Factory
Setting
User
Setting
Setting
21
T -B . a
Input linearization table
approximation B10
1000U
22
T -B . B
Input linearization table
approximation B11
1000U


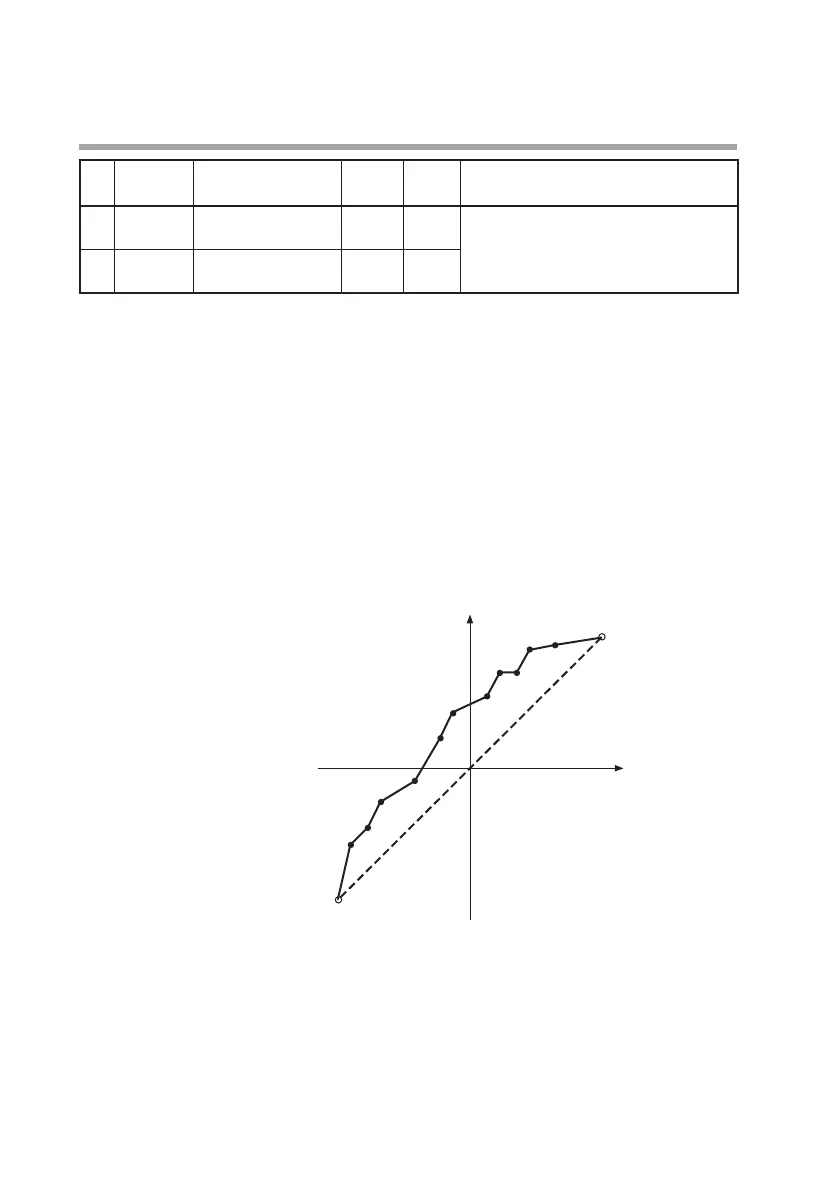

Description of table data settings

t -A . 1
to
t -A . b

t -b . 1
to
t -b . b
•ThesesettingsarefortheA-axis(input)andB-axis(output)set-
tingsofinput1linearizationtableapproximation.
•Bothendsofthelinearizationtablearefixedat-2000U,-2000U
and10000U,10000U.
Thelinearizationtableisformedbyconnecting11pointsoftable
datasettingsbetweenthetwoends.
•Tabledataissetnotbypercentagesbutdirectlybyengineering
unit.Whentherangetypeissettolinear,setscaledvalues.
1
2
3
4
5
6
7
98
10
11
B-axis (output)
Fixed value
(10000, 10000)
A-axis (input)
Fixed value
(-2000, -2000)
