Azbil DCP31 User Manual

(106x104)
(18)
15
159.5
137
A B
A B
Unit: mm
Mounting bracket 81405411-003
Soft dust-proof cover set (sold separately)
81446087-001
Hard dust-proof cover set (sold separately)
81446083-001
Terminal cover set (sold separately) 81446084-001
96
96
Mountingbracket
B-B
37
78.4
110.5
A-A
90.2 91.5
Back plate
Add-on terminal base
Terminal screw
3-1
Chapter 3. MOUNTING

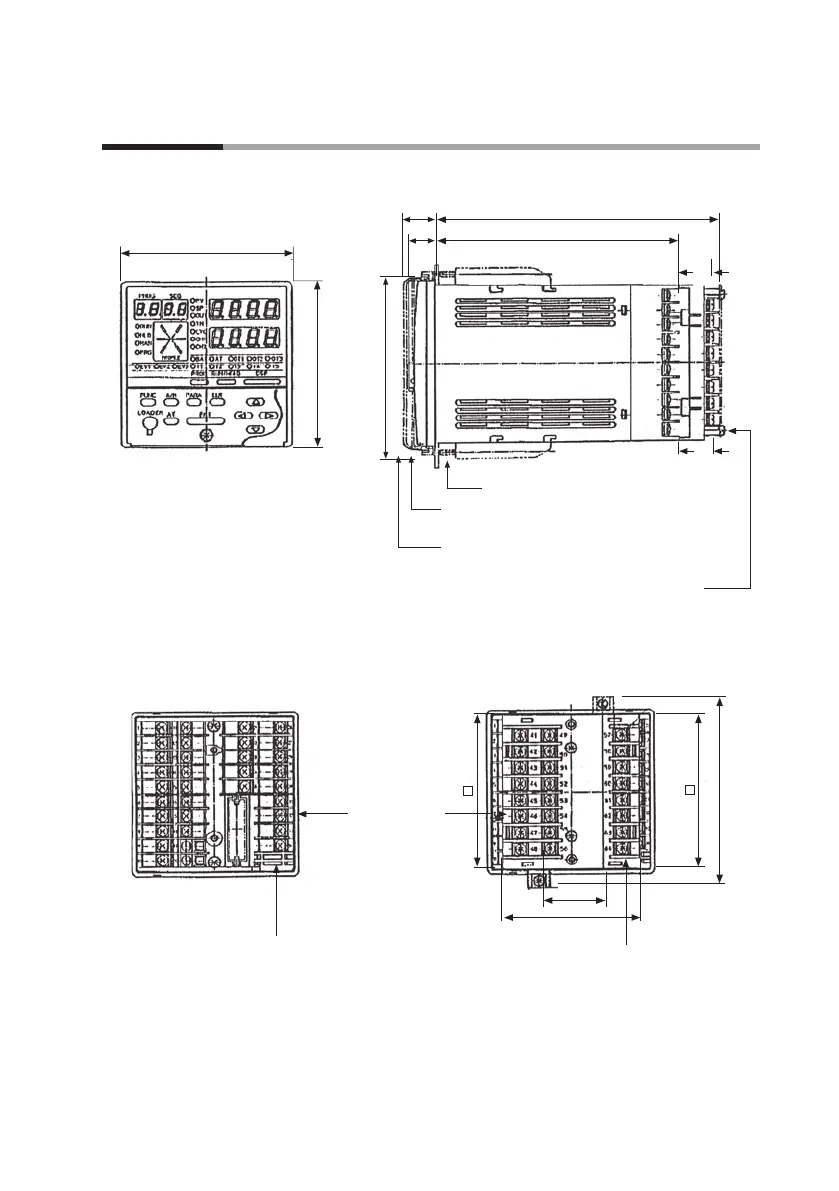

3 - 1 External Dimensions

Azbil DCP31 Specifications

General

Type	Digital Indicating Controller
Control Method	PID control
Input Type	Thermocouple, RTD, DC voltage, DC current
Display	LED display
Communication	RS-485
Output Type	Relay, Voltage pulse, Current
Power Supply	100 to 240 VAC
Control Output	Relay contact, Voltage pulse, Current
Operating Temperature	-10 to 50°C
