Barco DP2K SLP Series Service Manual

R5906848 /04 DP2K SLP Series174
16.1 Introduction Lens Holder
Lenses and Lens Holder
Next to securing the Lens, the Lens Holder makes it possible to shift, tilt and swing the lens plane with respect
to the DMD plane of the projector. This adjustment mechanism ensures that the projected image can be
perfectly aligned with the screen. The motors required for horizontal and vertical shift are built-in in the Lens
Holder. The Lens Holder has an electrical socket for the zoom and focus functionality of the motorized Lens.

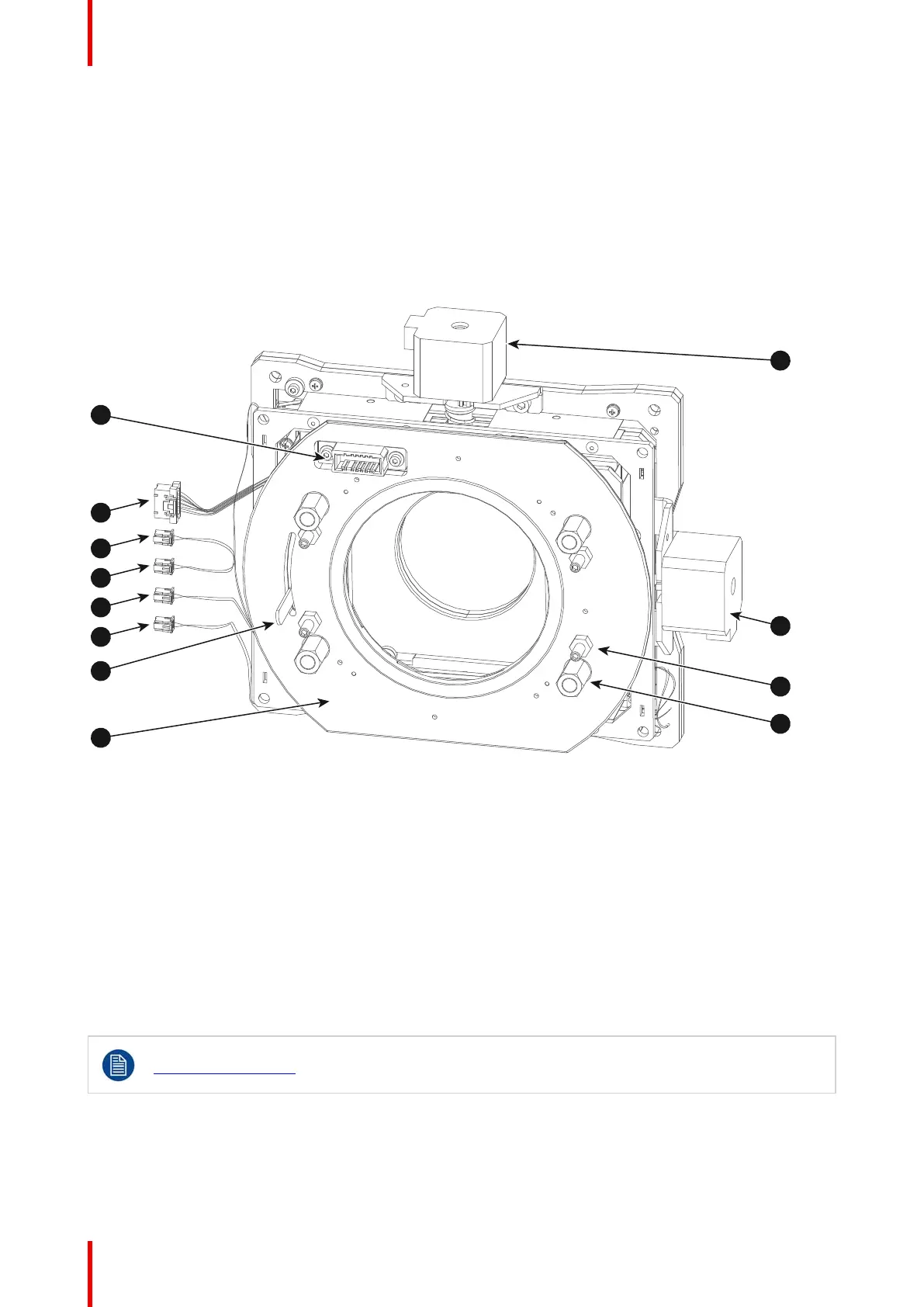

Parts identification of the Lens Holder
2
1
3
4
5
6
7
8
10
11
9
12
Image 16-1
1 Electrical socket lens connection.
2 Wire lens connection (zoom & focus) (orange
wires).
3 Horizontal-Left end loop wires (yellow/black).
4 Vertical-Top end loop wires (red/black).
5 Vertical-Bottom end loop wires (brown/black).
6 Horizontal-Right end loop wires (orange/black).
7 Lens lock handle.
8 Lens Holder front plate.
9 Lens Holder Vertical Shift motor.
10 Lens Holder Horizontal Shift motor.
11 Scheimpflug set screw + lock nut.
12 Scheimpflug adjustment nut.
16.2 Available lenses
Which lenses are available?
For the DP2K-SLP Series the 0.69” DC2K lens family is used.
The table below is subject to changes and was last updated on 09 January 2018. Consult
https://my.barco.com for the most recent information about available lenses for the DP2K-SLP
Series.
Lens Holder
