20.1 Replacement of the Rear Exhaust
Required tools
• Flat screwdriver
• Allen wrench 3 mm
How to replace the Rear Exhaust?
1. Remove the top cover of the projector.
2. Replace the rear exhaust as illustrated. Use a 3 mm Allen wrench to release or tighten the four screws
(reference 2 Image 20-1).
2

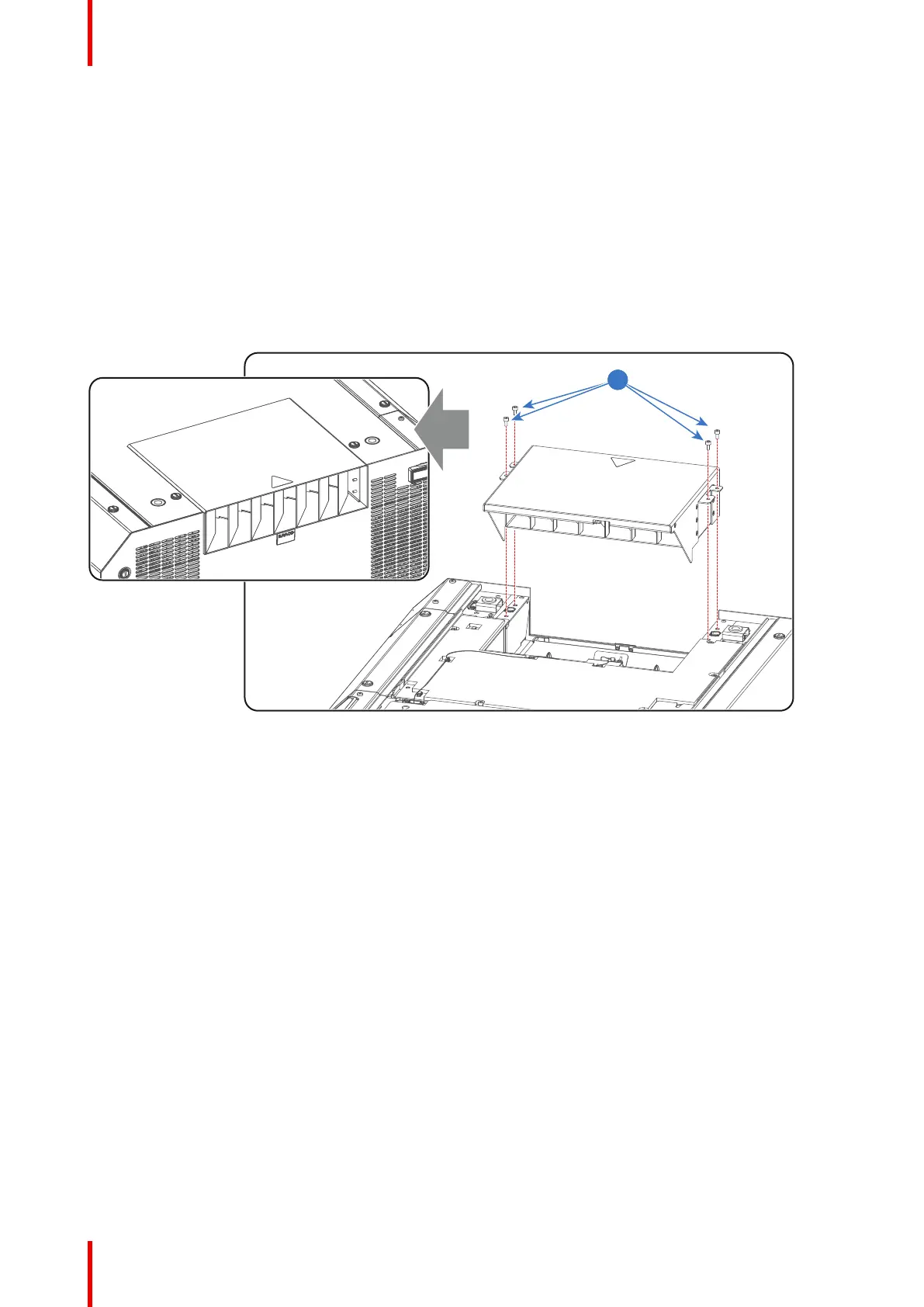

Image 20-1
3. Install the top cover of the projector.
