How to replace the Cinema Controller of the projector
1. Loosen the two screws (reference 1) at the front of the Cinema Controller. Use a PH2 Phillips screwdriver.
2. Pull the Cinema Controller out of its compartment.
3. Gently insert the new Cinema Controller in the guides of the Cinema Controller as illustrated. Push it
completely in.
Caution: Ensure that the both sides of the Cinema Controller are captured by the guides inside the
Cinema Controller compartment, as shown in the detail of the illustration.
4. Fasten the two screws at the front side of the Cinema Controller (reference 1). Use a PH2 Phillips screwdriver.

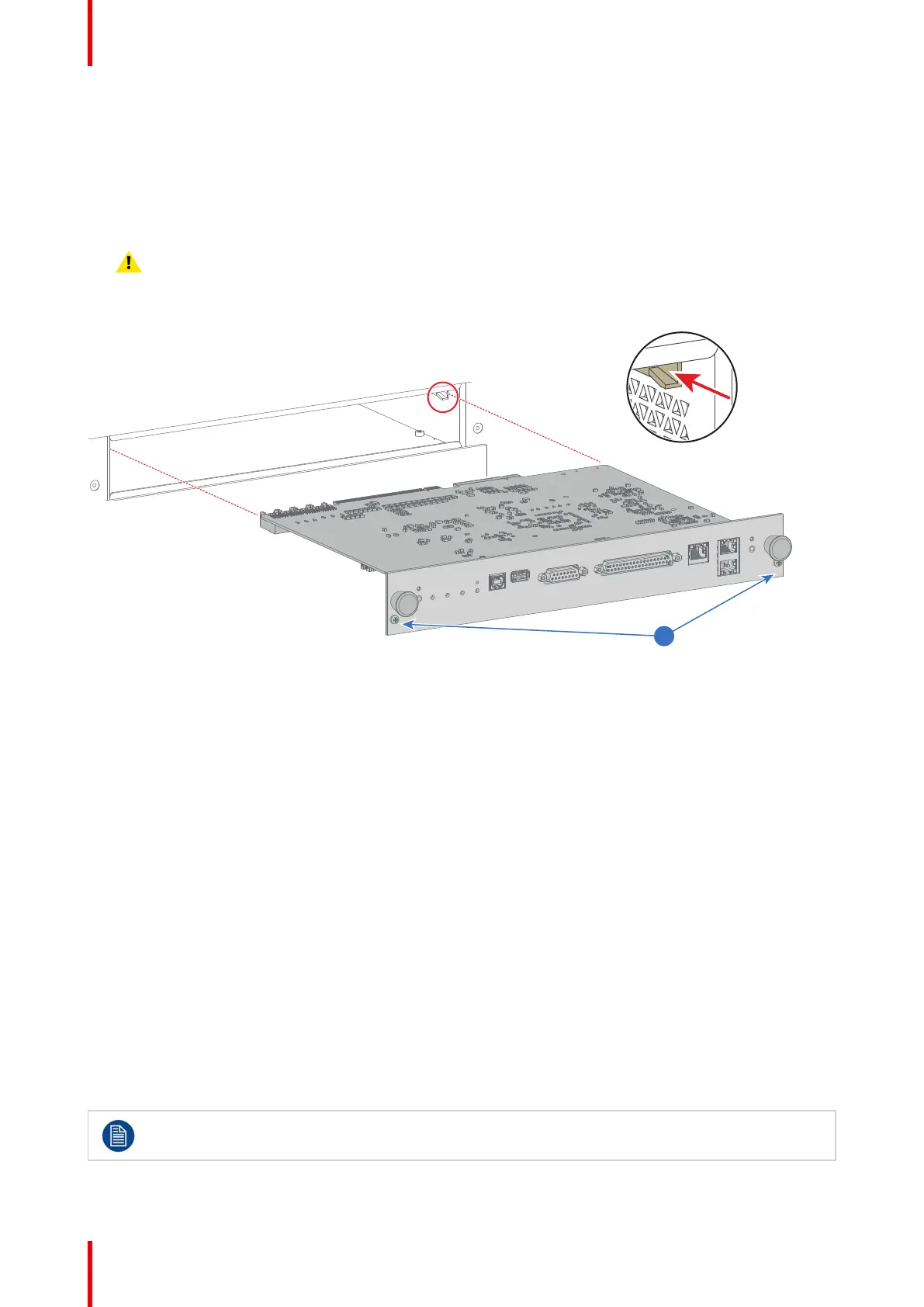

Image 18-7
5. Reconnect the power cord and switch on the projector.
6. Check if the latest firmware of the Cinema Controller is installed. If not, upgrade to the latest version. See
Communicator User Guide.
7. Is there a full backup clone or backup including the Cinema Controller specific files available?
1. If available reinstall the clone file. See Communicator User Guide chapter “Installation” where 'cloning' is
explained.
2. If NOT available install the base clone package for DP2K-SLP Series and modify the Cinema Controller
configuration files as desired. The base clone package can be downloaded from the secured Barco
website. Make a projector clone package (full backup) after the files are modified and saved. See
Communicator User Guide.
18.9 Battery replacement on the Cinema Controller
Board
About an empty battery
There is no error indication in Communicator when the battery is almost empty. Only when opening the error
logging after powering on the projector, you will see that some time stamps in the beginning of the list are
missing or that these time stamps are still old timings. That is due to an empty battery on the Cinema
Controller Board.
There is no battery kit available. The customer has to buy a new battery himself.
Battery type used : CR1220 (3V, 0.03AH, Li)
Card Cage
