R5906848 /04 DP2K SLP Series 227
Image 18-22

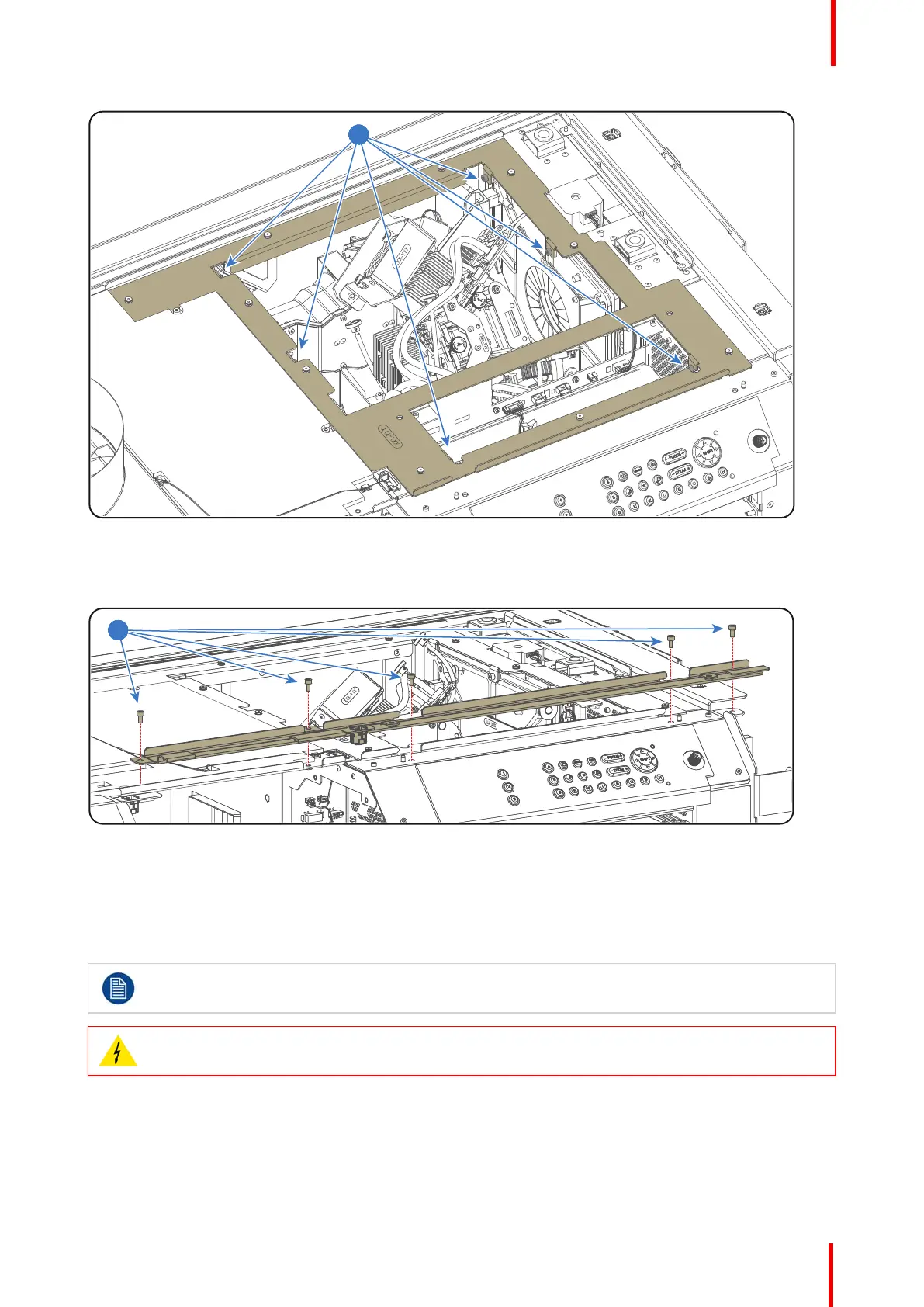

11. Install the rail on the top of the projector as illustrated. Use a 3mm Allen wrench to fasten the 5 screws
(reference 4 Image 18-23).
Image 18-23
12. Install all projector covers.
18.14 Signal Backplane replacement process
The process described below is a high level process for the replacement of the Signal Backplane.
Most stages refer to a detailed step-by-step procedure included in this document.
WARNING: Disconnect the power cord of the projector from the power net and wait a few minutes
(to discharge the capacitors) prior to starting this procedure.
Replacement process
1. Switch off the projector and disconnect the power cord of the projector from the power net. Wait a few minutes
(to discharge the capacitors) prior to proceed with the next stage of this process.
2. Remove the large dust filter from the projector front. See page 284.
