R5906848 /04 DP2K SLP Series276

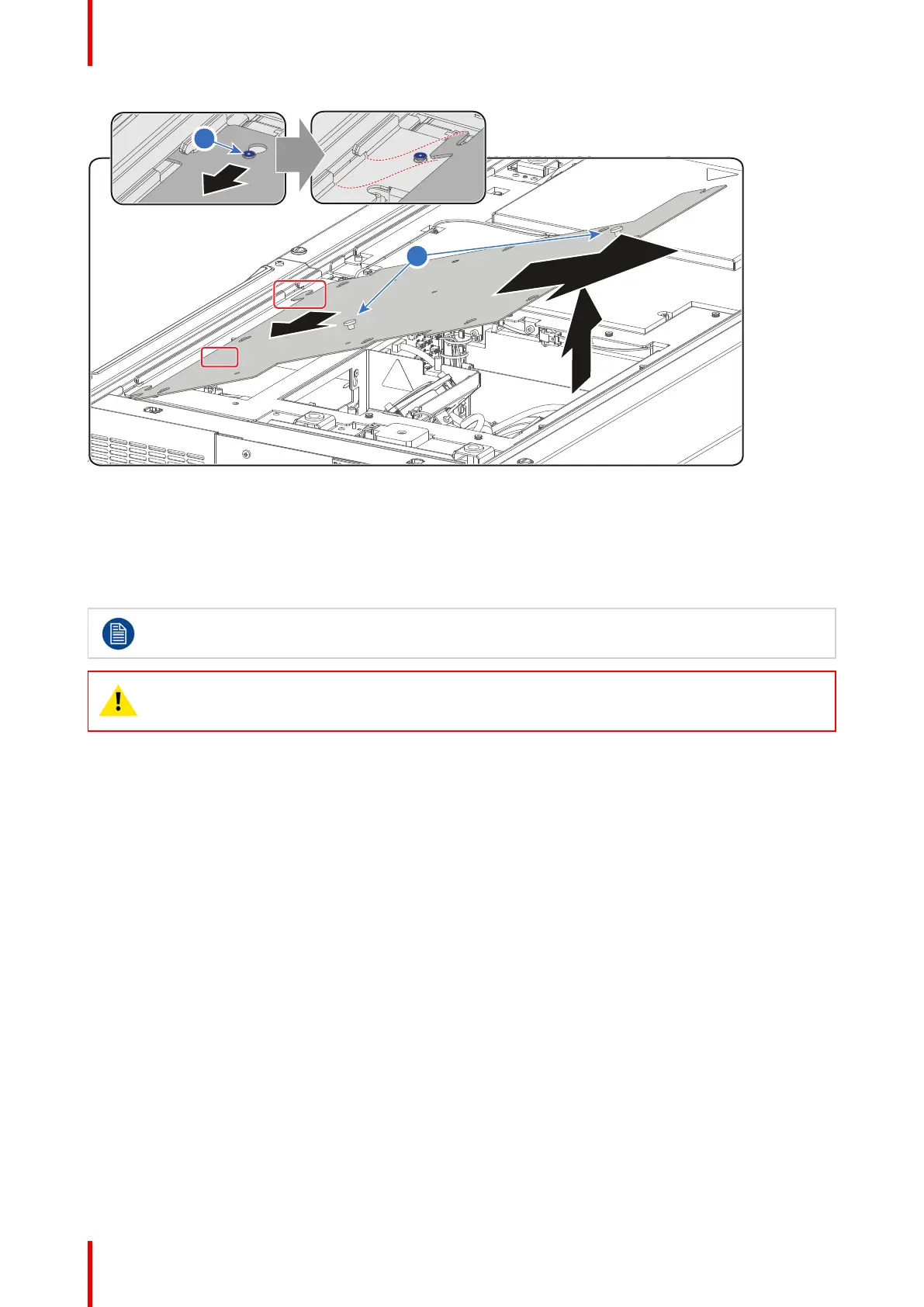

Image 22-7
22.6 Removal of the side cover plate of the Light
Processor compartment
To access the side cover plate of the Light Processor compartment, the projector left side cover has
to be removed first. This procedure assumes that the projector left side cover is already removed.
CAUTION: Opening the Light Processor compartment by removing the top cover plate or side cover
plate will result in a tamper event. An authorization to clear the security warning on the projector,
after closing off the Light Processor compartment, will be needed!
Required tools
3mm Allen wrench.
How to remove the side cover plate from the Light Processor compartment?
1. Remove the screw at the top of the cover plate (reference 1 Image 22-8) and the two screws at the bottom of
the cover plate (reference 2 Image 22-8). Use a 3mm Allen wrench.
2. Remove the side cover plate left (A) then up (B) then away (C).
Removal and installation of the projector covers
