R5906848 /04 DP2K SLP Series 127

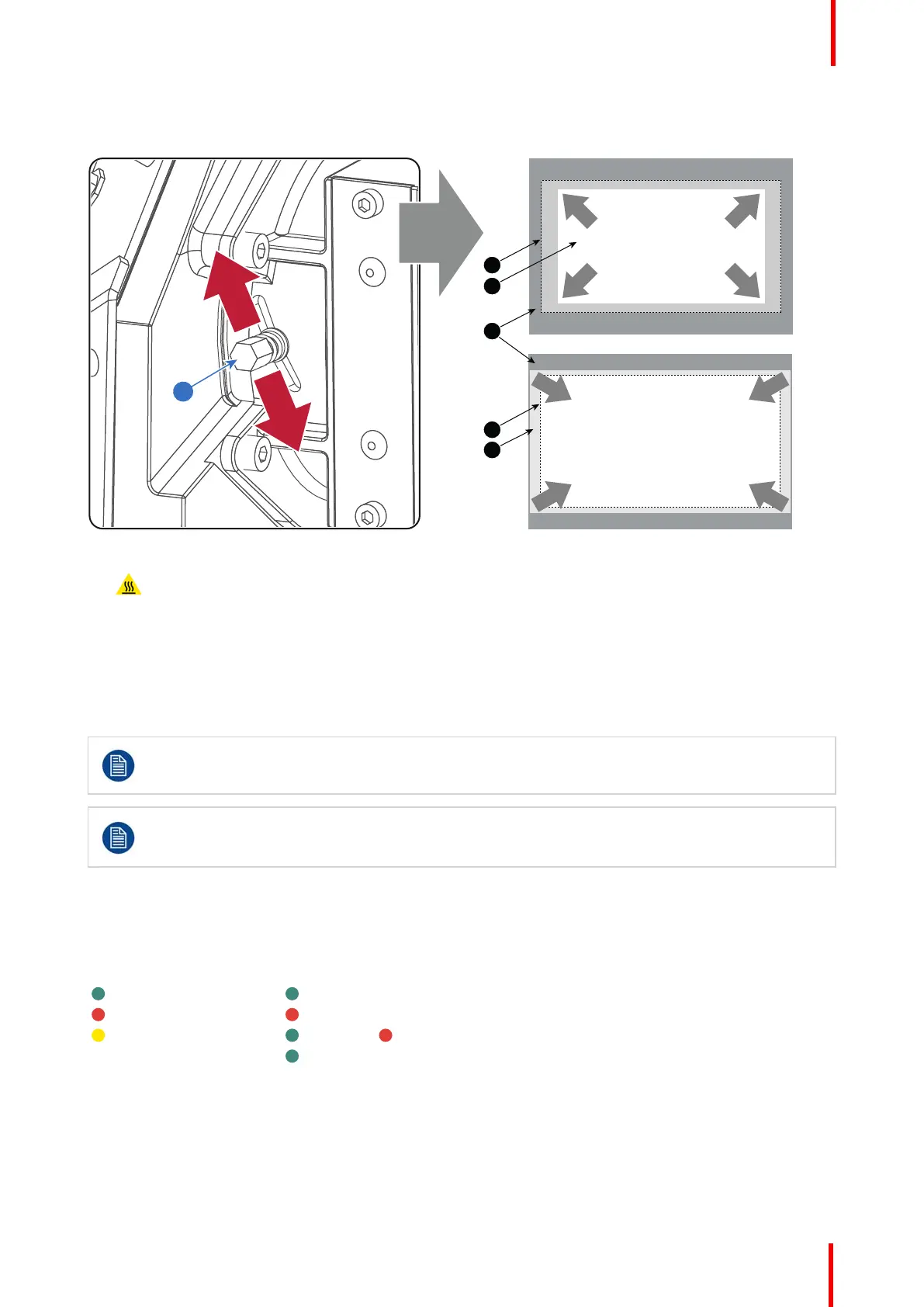

the screen (reference 4). Use a 5.5 mm nut driver as an extension bar of the adjustment screw. This allows a
more precise adjustment.
2
3
3
2
4
5
Image 10-19
Warning: The adjustment screw of the Light Pipe focus lens is hot. To prevent burn injuries use 5.5mm
nut driver for moving the Integration Rod.
6. Fasten the adjustment screw (reference 5 Image 11-9) which you released in step 1. Use a 5.5 mm Allen
wrench.
10.13 Replacing the Notch Filter
The Light Processor and the Notch Filter are matched. When replacing the Light Processor the
Notch Filter needs to be replaced as well. The Light Processor spare part kit contains the matched
Notch filter.
To access the old Notch Filter, installed inside the projector, the left side cover and side cover plate
has to be removed from the projector. This procedure assumes that the left side cover and side
cover plate are already removed from the projector.
Matching Notch Filter
On the front side of the Light Processor either a Green, Red, Yellow or no colored dot is applied. (green, red or
yellow). The Notch Filter has only a Green or a Red colored dot.
Light Processor
→
Matching Notch Filter
GREEN
→
GREEN
RED
→
RED
YELLOW
→
GREEN or RED
No colored dot. →
GREEN
Required tools
2.5mm Allen wrench.
Light Pipe
