R5906848 /04 DP2K SLP Series212
Contains a real time clock, which must be synchronized with the GMT/UTC time stored in the link decryptor
module or Integrated Media Block (see Communicator software)
Handles unpacking of special video formats
The ICP board spare part kit is not default programmed for a DP2K-SLP Series projector. When
using this board in a DP2K-SLP Series projector the software must be re-installed after installation
of the board.
When installing a new ICP board in a DP2K-SLP Series projector the Spatial Color Calibration file
must be reloaded and activated.
CAUTION: Make sure not to short circuit the battery on the board. That will destroy the board
completely !
18.3 Cinema Controller

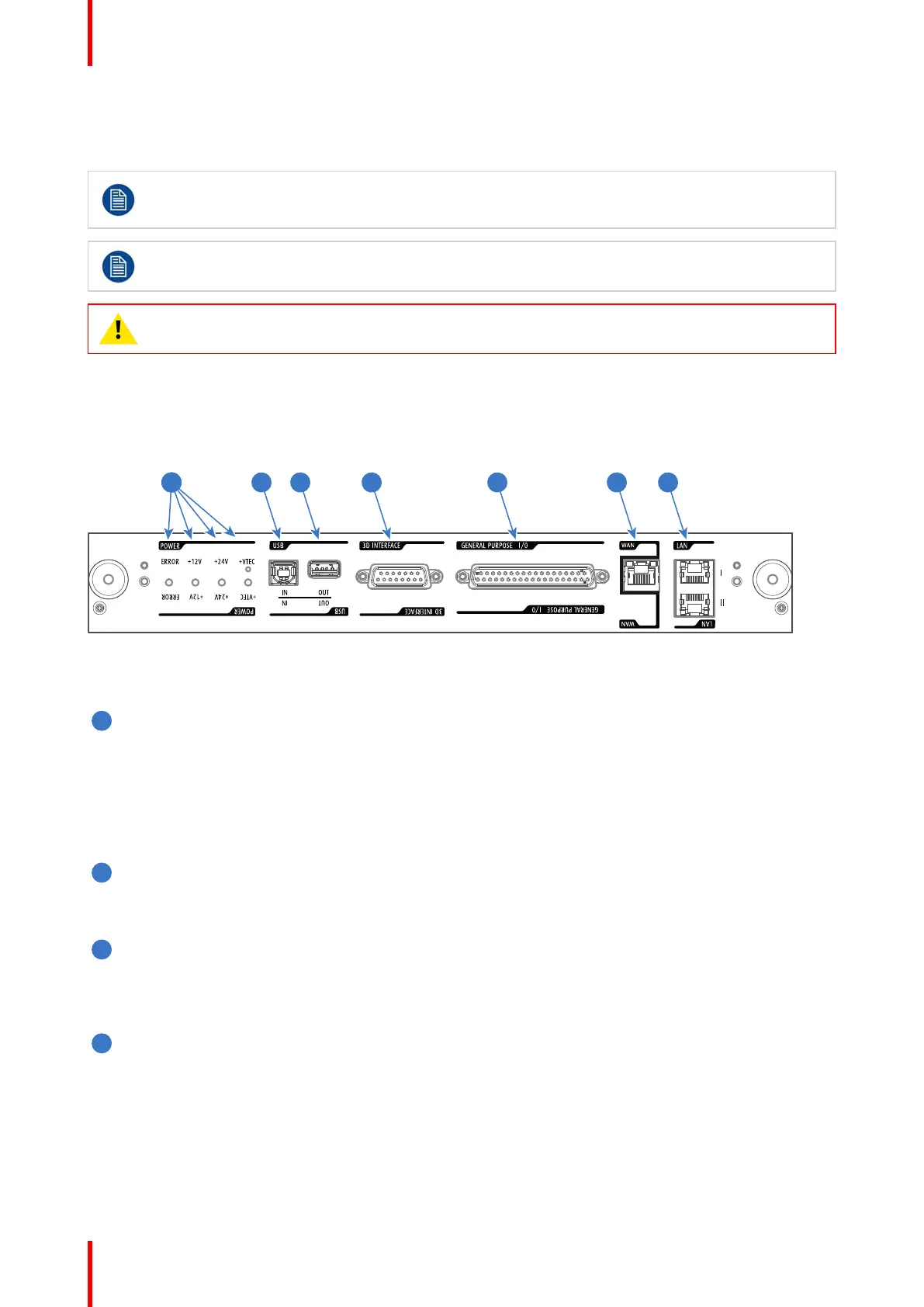

Location of the communication ports
5 6 74321
Image 18-2
Functionality
1
Diagnostic LEDs
The front plate of the Cinema Controller contains 4 diagnostic LEDs to display the status of the power
supply:
+VTEC supply (not used on DP2K-S series projector).
+24V supply.
+12V supply.
general power supply (ERROR).
2
USB IN port
The Cinema Controller is equipped with a USB port, type B connector to connect upstream devices (E.
g. PC). This USB port is used to communicate with the projector via RS232 commands (Virtual comport).
3
USB OUT port
The Cinema Controller is equipped with a USB port, type A connector which can be used to power
handheld devices within USB spec (MAX 500mA/5V]. No other functionality supported (Future
expansion).
4
3D INTERFACE
3D interface port can be used to connect external 3D devices to the projector. All signals necessary for
3D projection can be provided via this connector.
Card Cage
