Barco DP2K SLP Series Service Manual

R5906848 /04 DP2K SLP Series 211
18.1 Introduction Card Cage
Card Cage
The Card Cage is located at the right side of the projector. The upper compartment of the Card Cage contains
the Button Interface and below this there are three slots wherein the Barco Cinema Controller board can fit,
together with either the ICMP board, or the ICP board + the IMB or IMS board.
The Card Cage can be removed from the projector chassis as a whole.
Card Cage parts
18.2 Integrated Cinema Processor (ICP)
In case the projector is equipped with a Barco ICMP no ICP board is inserted. All ICP functionality is
integrated in the Barco ICMP.

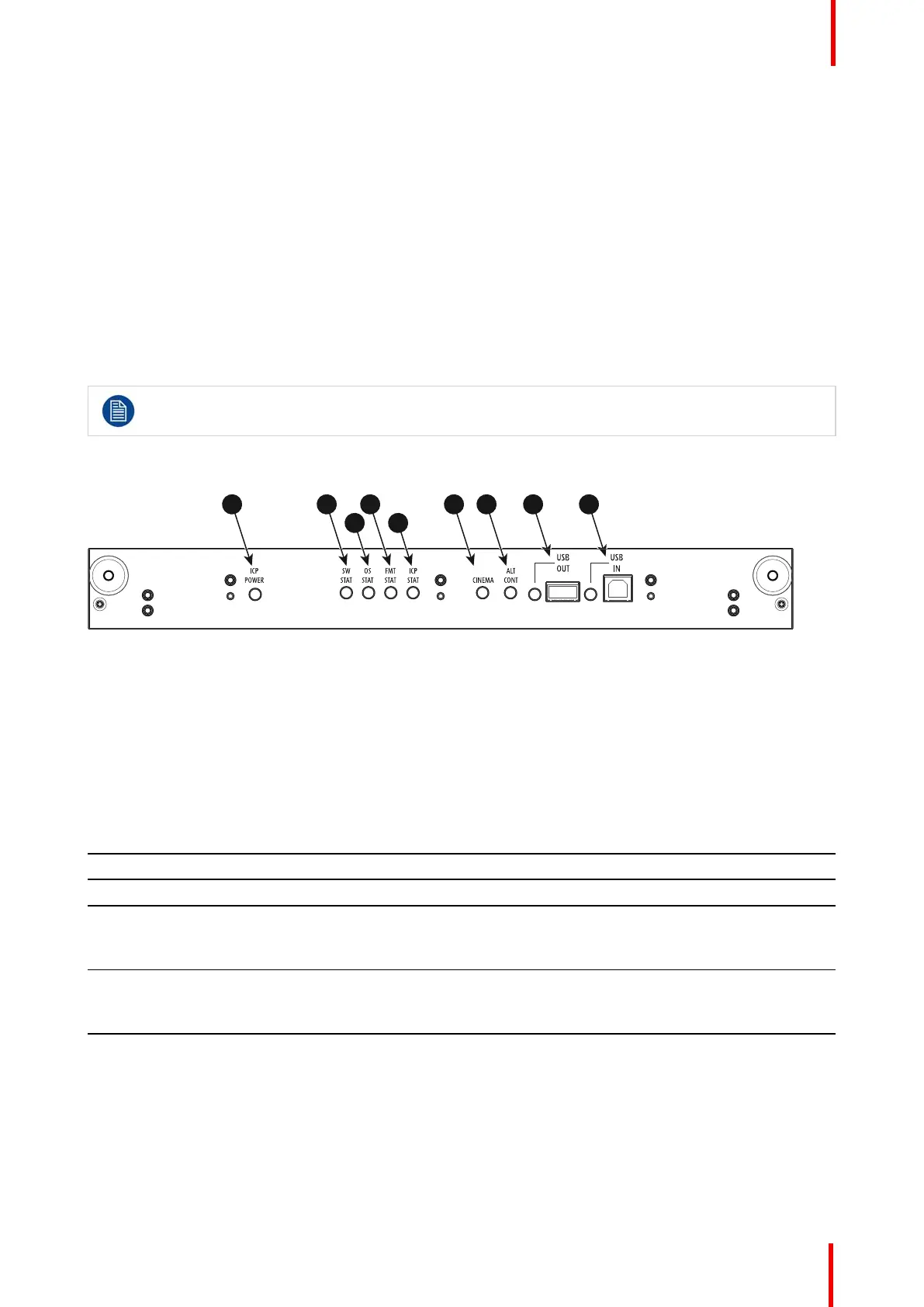

LEDs and ports on the Integrated Cinema Processor
USB
OUT
USB
IN
ICP
POWER
SW
STAT
OS
STAT
FMT
STAT
ICP
STAT CINEMA
ALT
CONT
1 2
3
4
5
6 7 8 9
Image 18-1
1 ICP is powered.
2 ICP software state, normal operation is green
blinking.
3 ICP operating system state, normally full green .
4 ICP FMT configuration state, normally full green.
5 ICP MAIN configuration state, normally full
green.
6 CINEMA port selected. When on, LED 7 will be
out.
7 ALTERNATIVE port selection. When on, LED 6
will be out. (note that this function is disabled.
Led never lights up)
8 USB, for future use.
9 USB, for future use.
LED diagnostic
State description Normal operation
Error state
Software state (LED reference 2) flashing green red or orange
Operating System state (LED reference 3) green off, red or yellow
FMT FPGA state (LED reference 4) green red : unable to configure the FPGA
yellow : FPGA is loaded with the Boot
application
ICP FPGA state (LED reference 5) green red : unable to configure the FPGA
yellow : FPGA is loaded with the Boot
application
ICP functions:
• Stores all projector files. When board is replaced; clone package must be reloaded.
• Stores and generates test patterns.
• Scaling to native resolution, re-sizing, masking, line-insertion de-interlacing, subtitle overlay, color space
conversion, de-gamma, color correction
• Source Selection between alternative content and cinema content.
• Stores a Certificate and Private Key needed for Playback validation
Card Cage
