R5906848 /04 DP2K SLP Series 281

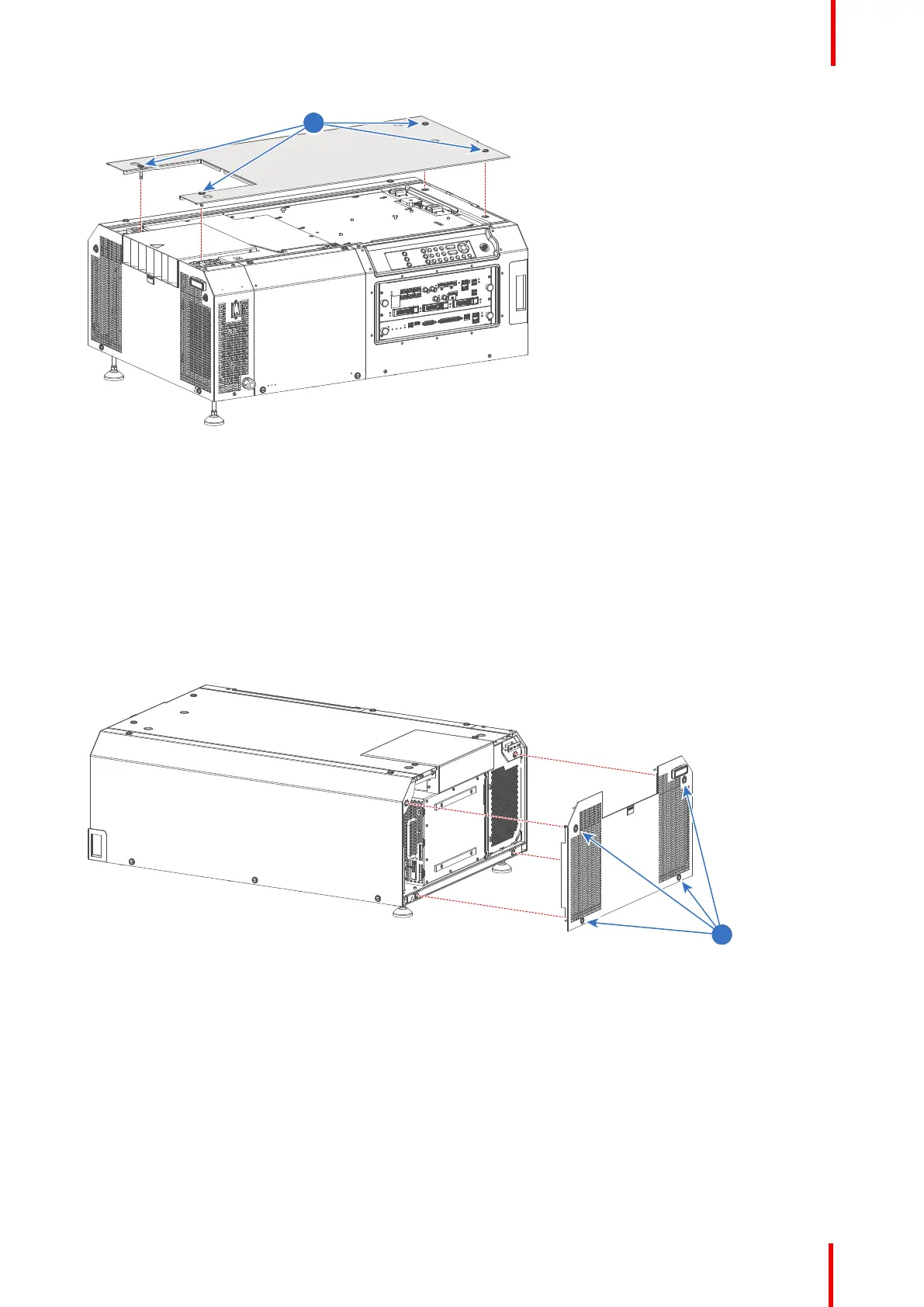

Image 22-14

22.11 Installation of the rear cover

Required tools

Flat screwdriver 7 mm

How to install the rear cover?

1. Install the rear cover on the projector.

2. Fasten the four captive screws (reference 1 Image 22-15) of the rear cover using a 7 mm flat screwdriver.

Image 22-15

22.12 Installation of the Light Source cover

Required tools

Flat screwdriver 7 mm

How to install the Light Source cover?

1. Install the Light Source cover on the projector.

Removal and installation of the projector covers
