R5906848 /04 DP2K SLP Series 65
2. Release the wire unit between the LCB and Peltier Controller.
3. Replace the Peltier Controller as illustrated. Use a T10 Torx screwdriver to release the 5 Torx screws.

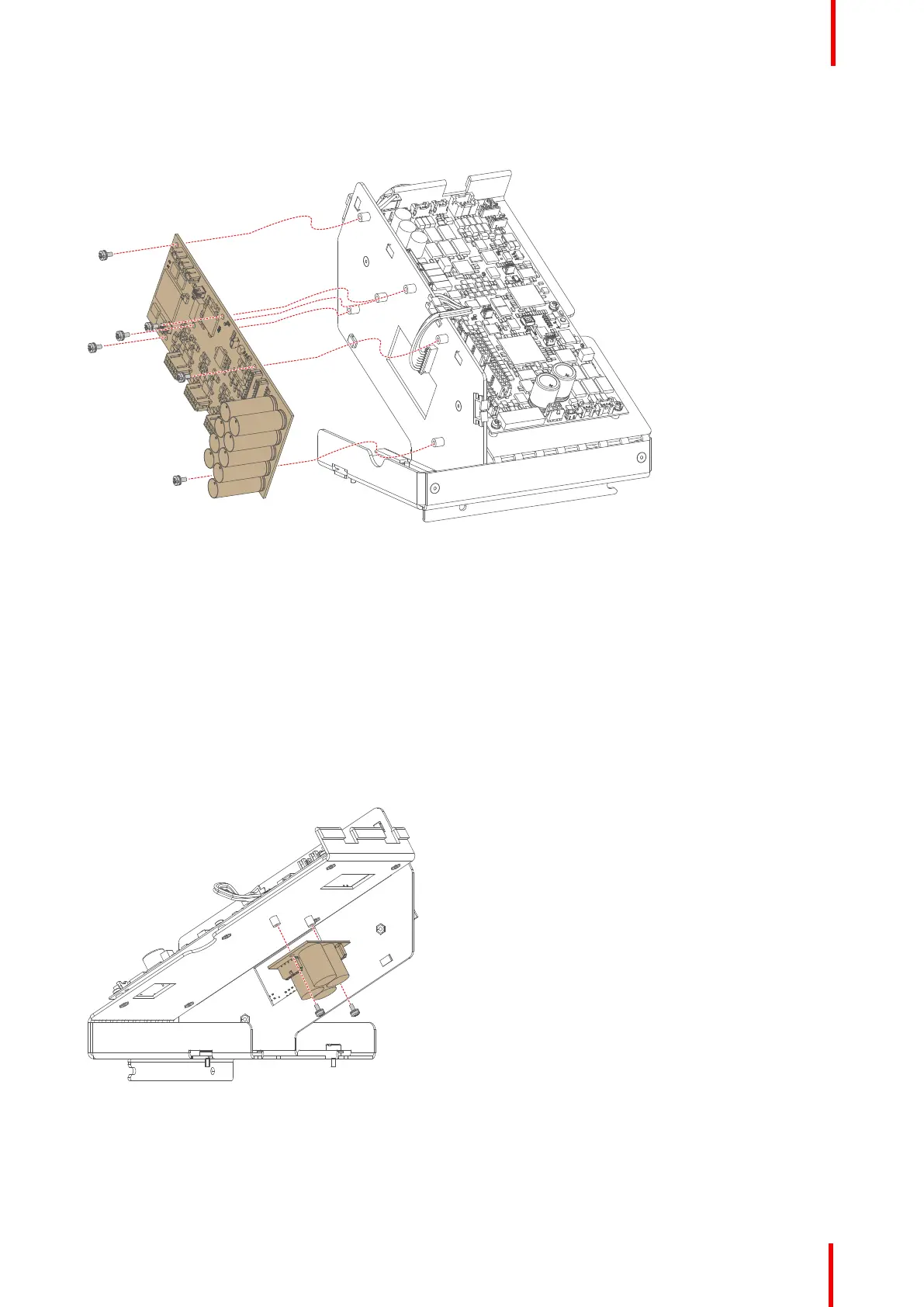

Image 7-11
4. Reconnect the wiring between LCB and Peltier Controller.
5. Mount the Controller assembly back onto the Light Source.
7.6 Replacing the 24V Filter board
How to replace the 24V Filter board
1. Remove the Controller assembly from the projector. See “Removal of the Controller assembly”, page 62.
2. Release the wire unit between the LCB and the Filter board.
3. Replace the Filter board as illustrated. Use a T10 Torx screwdriver to release the 2 Torx screws.
Image 7-12
4. Reconnect the wiring between LCB and the filter board.
5. Mount the Controller assembly back onto the Light Source.
