Barco DP2K SLP Series Service Manual

R5906848 /04 DP2K SLP Series64
2

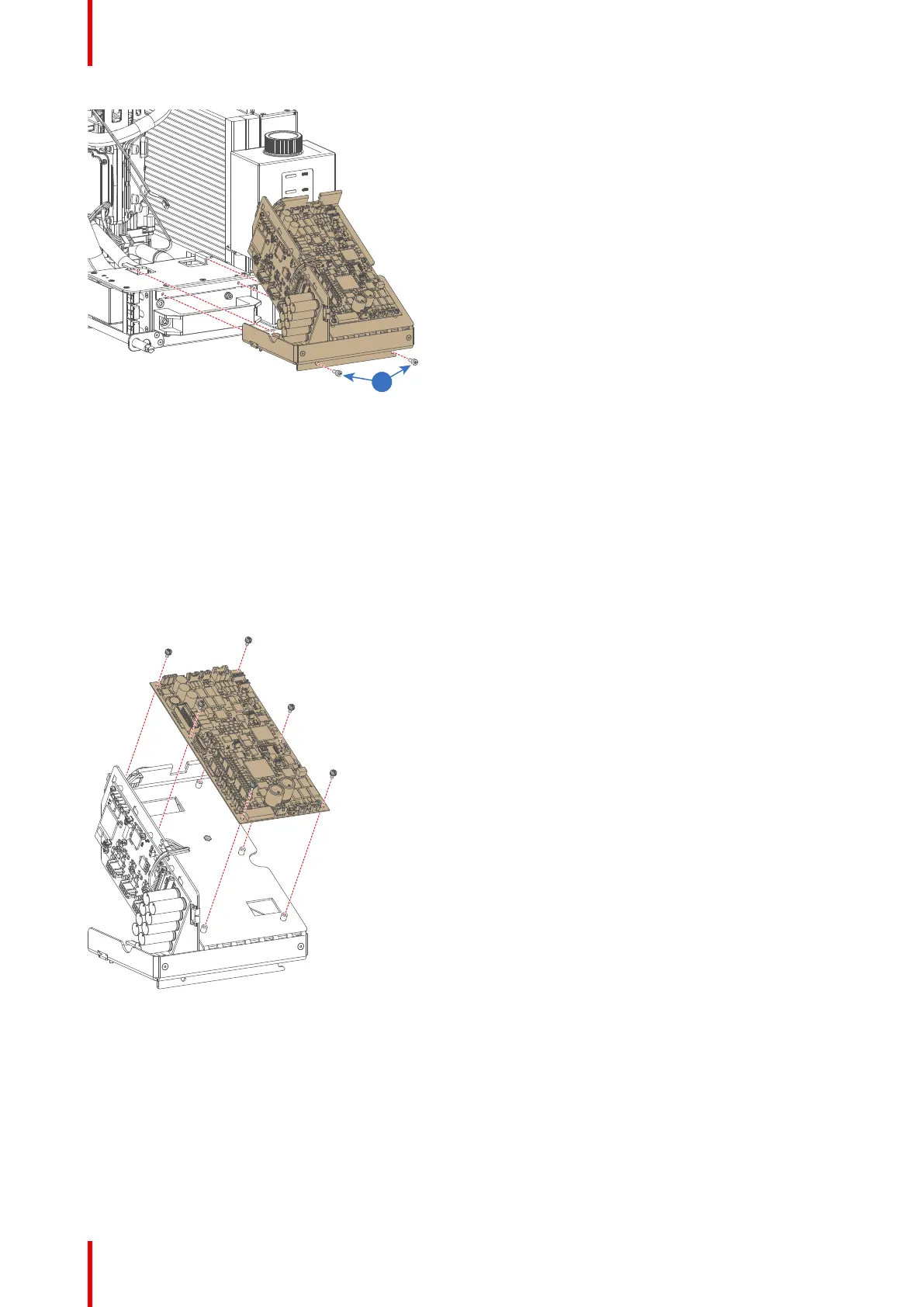

Image 7-9
7.4 Replacing the Laser Control Board (LCB)
How to replace the LCB?
1. Remove the Controller assembly from the projector. See “Removal of the Controller assembly”, page 62.
2. Release the wire unit between the LCB and Peltier Controller and the wire unit between the LCB and the
Capacitor Board.
3. Replace the LCB as illustrated. Use a T10 Torx screwdriver to release the 6 Torx screws.
Image 7-10
4. Reconnect the wiring between LCB and Peltier Controller and between LCB and Capacitor Board.
5. Mount the Controller assembly back onto the Light Source.
7.5 Replacing the Peltier Controller
How to replace the Peltier Controller?
1. Remove the Controller assembly from the projector. See “Removal of the Controller assembly”, page 62.
Laser Phosphor Light Source
