Barco DP2K SLP Series Service Manual

R5906848 /04 DP2K SLP Series 185
5
6
7
8
9

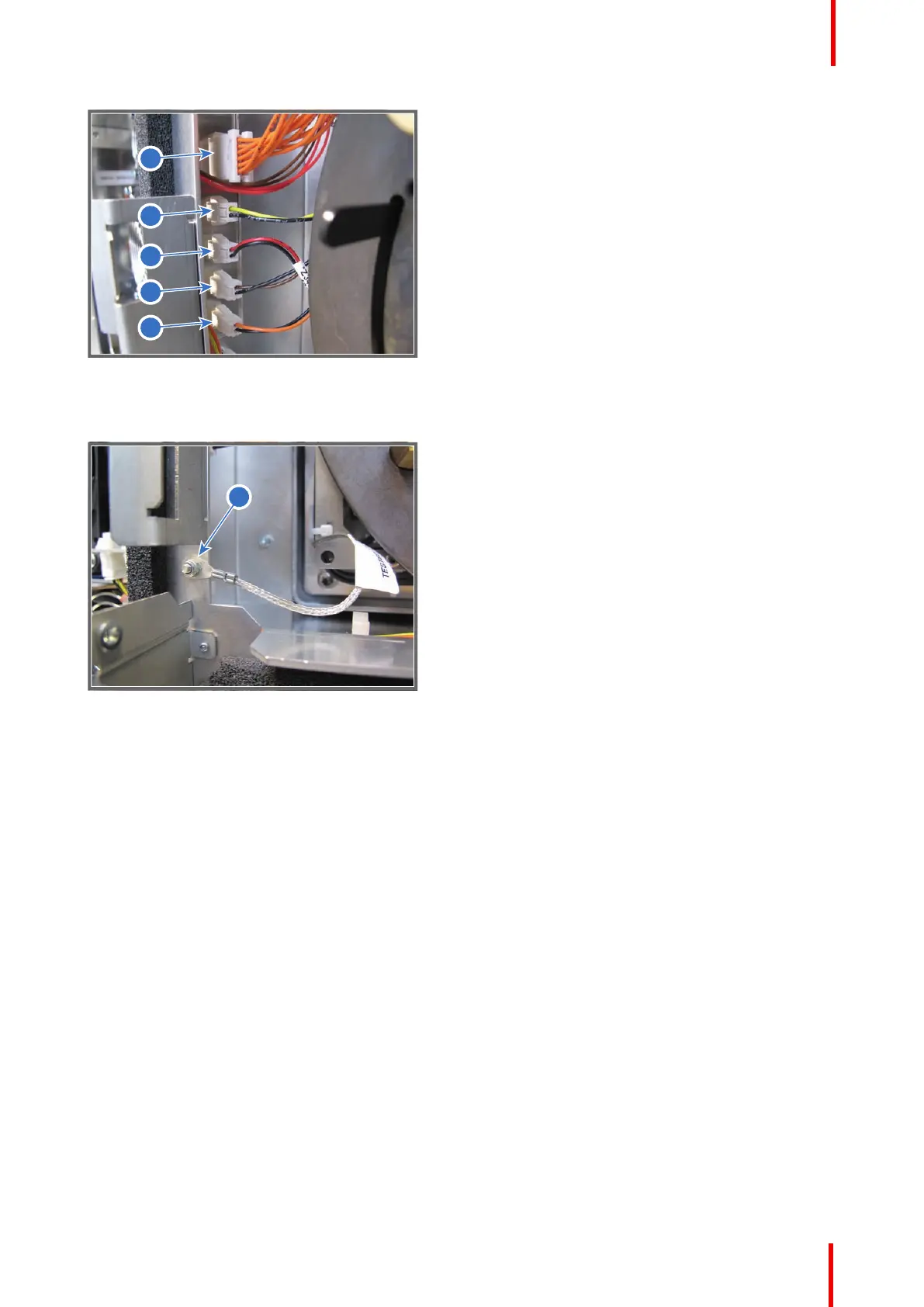

Image 16-23
4. Connect the EMC wire (reference 10 Image 16-24) with the projector chassis as illustrated. Use a 5.5mm nut
driver.
10
Image 16-24
5. Install all projector covers and lens.
6. Check for Sheimpflug misalignments and adjust if necessary. See “Scheimpflug”, page 199.
16.10 Installation of the Lens Holder cover plate
Required tools
Phillips screwdriver PH2.
How to install the cover plate of the Lens Holder?
1. Place the cover plate of the Lens Holder in its place.
2. Fasten the cover plate with three screws (reference 2 Image 16-25). Use a Phillips screwdriver PH2.
3. Insert the screw (reference 1 Image 16-25) at the lower left side of the cover plate (seen from the front of the
projector). Use a Phillips screwdriver PH2.
Lens Holder
