2.3 Projector Status
About the projector Status Light
The projector Status Light is located at the rear end of the projector (Tail Light). The projector Status Light is
real time indicator of the projector condition.

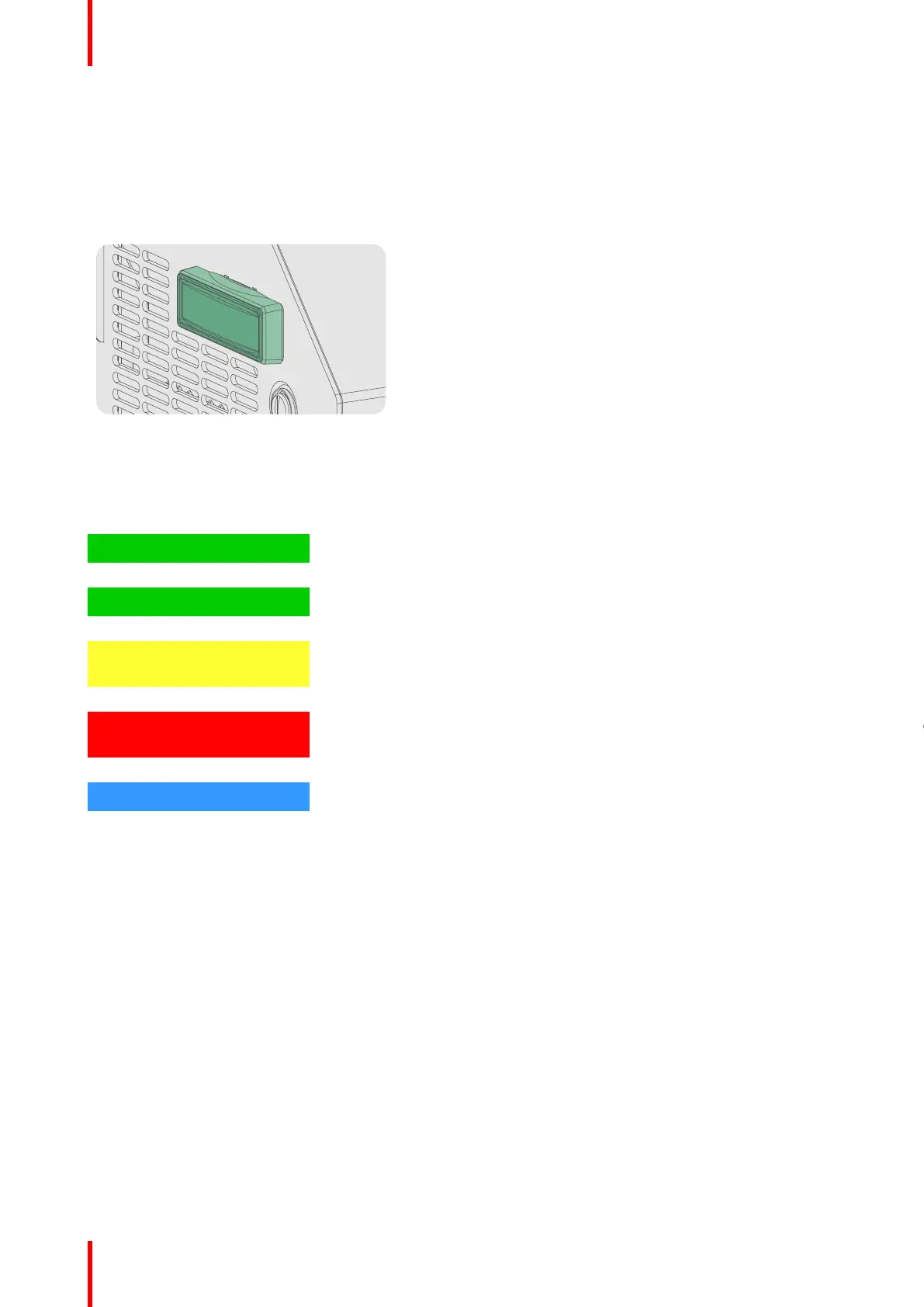

Image 2-7
Status overview
Depending on the condition of the projector the status light may have 4 colors: Green, Yellow, Red or Blue.
Each color represent a different state:
Blinking Green Projector is booting up. (Fully booted up when Test Pattern button is green as well)
Full Green Projector is running normally.
Yellow Projector is running with warnings. Event can go on, but a technical intervention will be necessary in the near future
to prevent a complete stop of the projector.
Red Projector is in error state. Problem can prevent normal operation. Solve the problem before continuing with the
projector.
Blue Projector runs in notification state. Maintenance action required.
Standby mode
In Standby mode the light source of the projector is turned OFF, but all the electronics of the projector remain
fully operational. The projector is ready to start up the light source and project the image. The status light is not
different between Standby mode and light source ON mode (fully operational).
Sleep mode
If the projector is in Sleep mode then the status light flashes every ten seconds. The color of the flash
depends on the state of the projector. In other words, the color of the flash will be green in normal state (no
warnings, no errors, no notifications).
In Sleep mode the total power consumption of the projector is less than 15 W. No fans are turning and the
Light Source is switched OFF. Only the following functionalities of the projector remains active:
• Cinema Controller
• Local Keypad
• Router and external switch fully functional
• USB IN port type “B” (Virtual comport RS232)
• USB OUT port type “A” (To power handheld devices [500mA MAX]. No other functionality supported)
• GPIO port on the Cinema Controller
