Barco DP2K SLP Series Service Manual

R5906848 /04 DP2K SLP Series 19
5
4
2
1
3
6 7

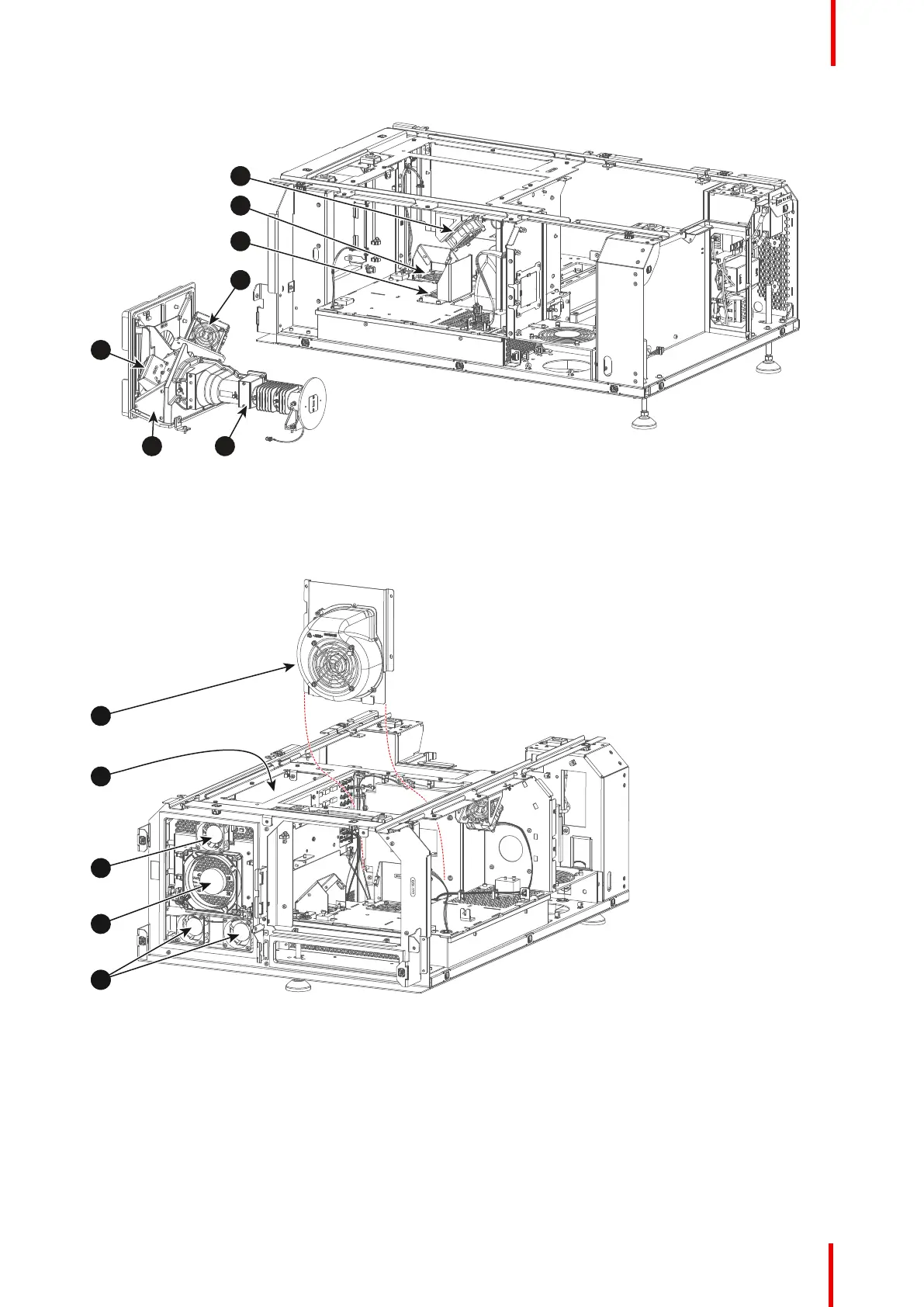

Image 2-5
1 Fan Light Pipe entrance (Rod entrance).
2 Fan Red DMD.
3 Fan Green DMD.
4 Fan Blue DMD.
5 Light Sensor Module (CLO functionality).
6 Light Pipe Corner Block (contains Fold Mirror).
7 Light Pipe (contains Light Pipe Lenses and Rod
assembly).
5
4
3
1
2
Image 2-6
1 Anode Fan assembly.
2 Fan ICP top.
3 Fan ICP board.
4 Fan Card Cage compartment.
5 Fans SMPS compartment.
