R5906848 /04 DP2K SLP Series 177
5. Gently insert the lens in such a way that the lens connector matches the socket. To prevent collision of the
lens with the critical electronics inside the projector, ensure you centre the lens and keep it on-axis while
approaching.
Caution: Do not accidentally bump with the lens against the electronic boards inside the Lens Holder.
Warning: Do not release the Lens yet, as the Lens may fall out of the Lens Holder.
6. Push the lens completely against the Lens Holder front plate. An audible click should be noticed. Once
seated, there may be no airgap between lens flange and Lens Holder front plate.
Caution: Ensure that the lock handle remains in the “locked” position.

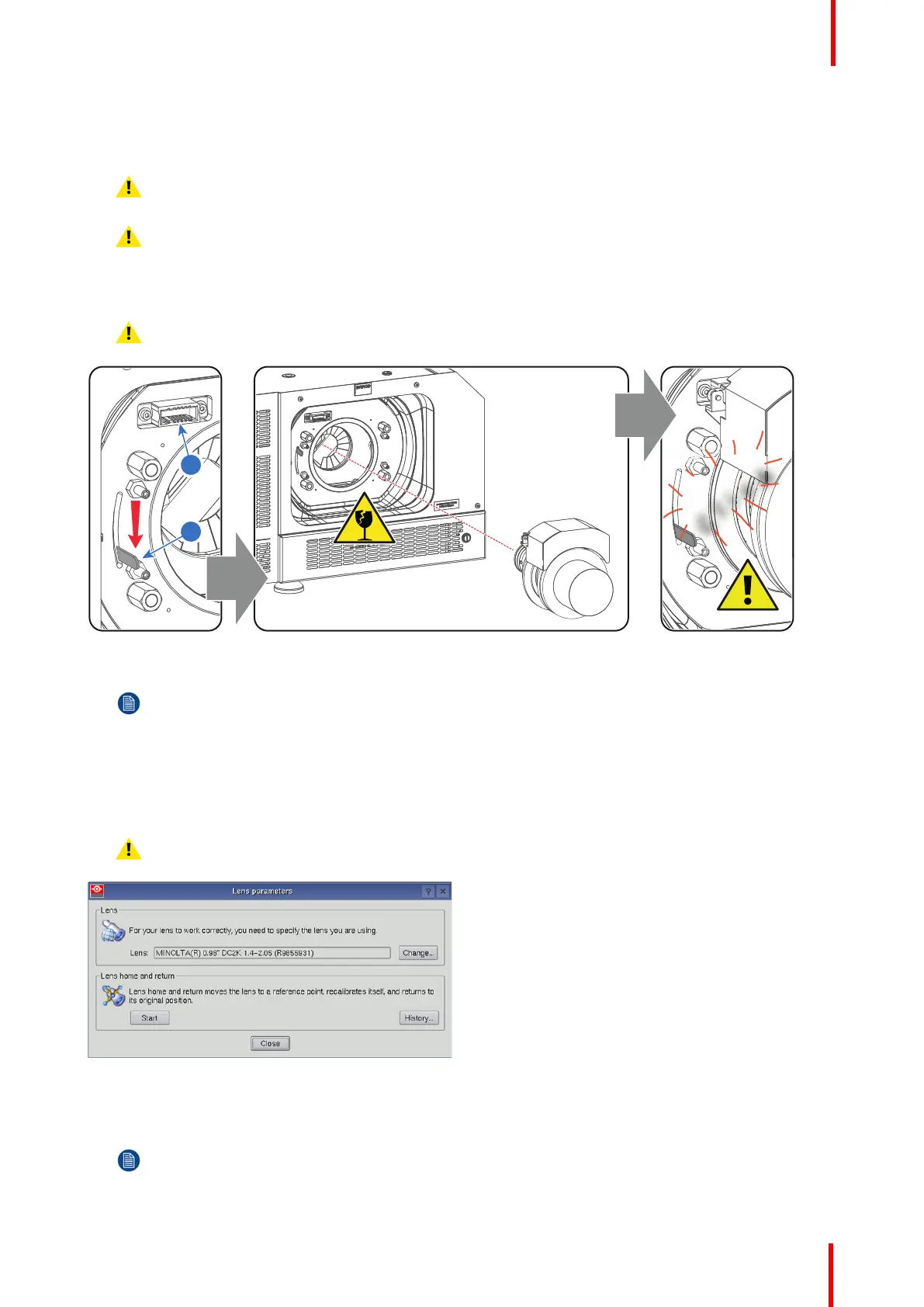

Image 16-8
Note: For frequent installation and removal of the lens it is recommended to install the lens while the
lock handle is in “open” position (upwards) and put the lock handle in “locked” position once the lens is
inserted. Then check if the lens is properly installed by trying to pull the lens out of the Lens Holder.
(this alternative procedure result in less wear of the Lens Holder)
7. Check if the lens is really secured by trying to pull the lens out of the Lens Holder.
8. Activate the corresponding lens parameters for the installed lens. (See user guide of the “Communicator”
chapter Installation > Advanced > Lens parameters)
Caution: Not using the correct lens parameters could result in lens damage.
Image 16-9
9. Perform a lens HOME & RETURN operation. (See user guide of the “Communicator” chapter Installation >
Advanced > Lens parameters)
Note: The HOME & RETURN operation enables the projector to determine the reference positions of
the motorized ZOOM and FOCUS barrels of the installed lens.
Lens Holder
To Next Page
