Barco DP2K SLP Series

R5906848 /04 DP2K SLP Series52

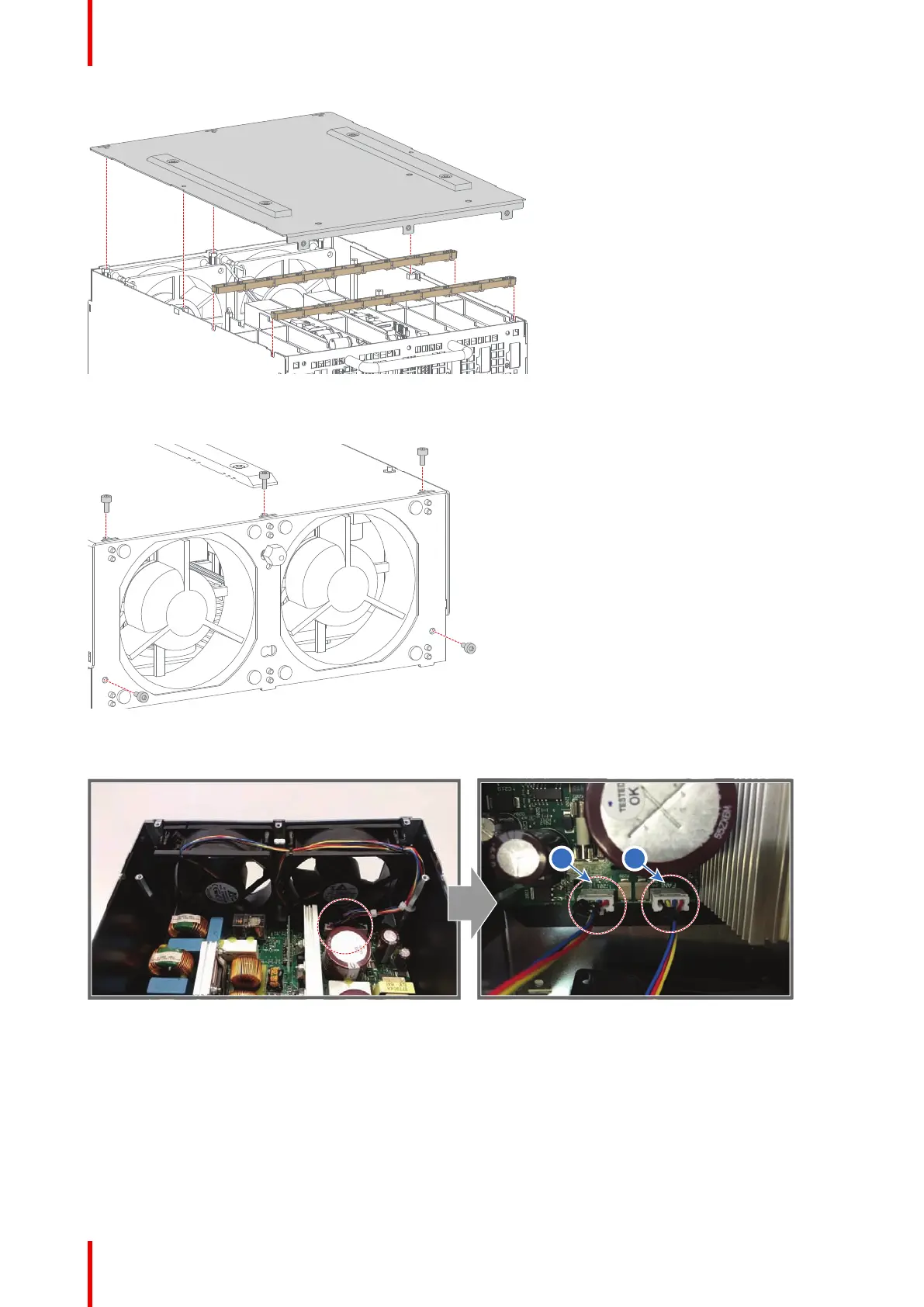

Image 6-14
4. Remove the five screws, holding the fan assembly onto the module. Use a 2.5 mm Allen wrench.
Image 6-15
5. Unplug the fan cable of the desired fan.
2 1
Image 6-16
1 Fan 1
2 Fan 2
6. Remove the fan assembly.
Laser Driver Module (LDM)
