R5906848 /04 DP2K SLP Series54

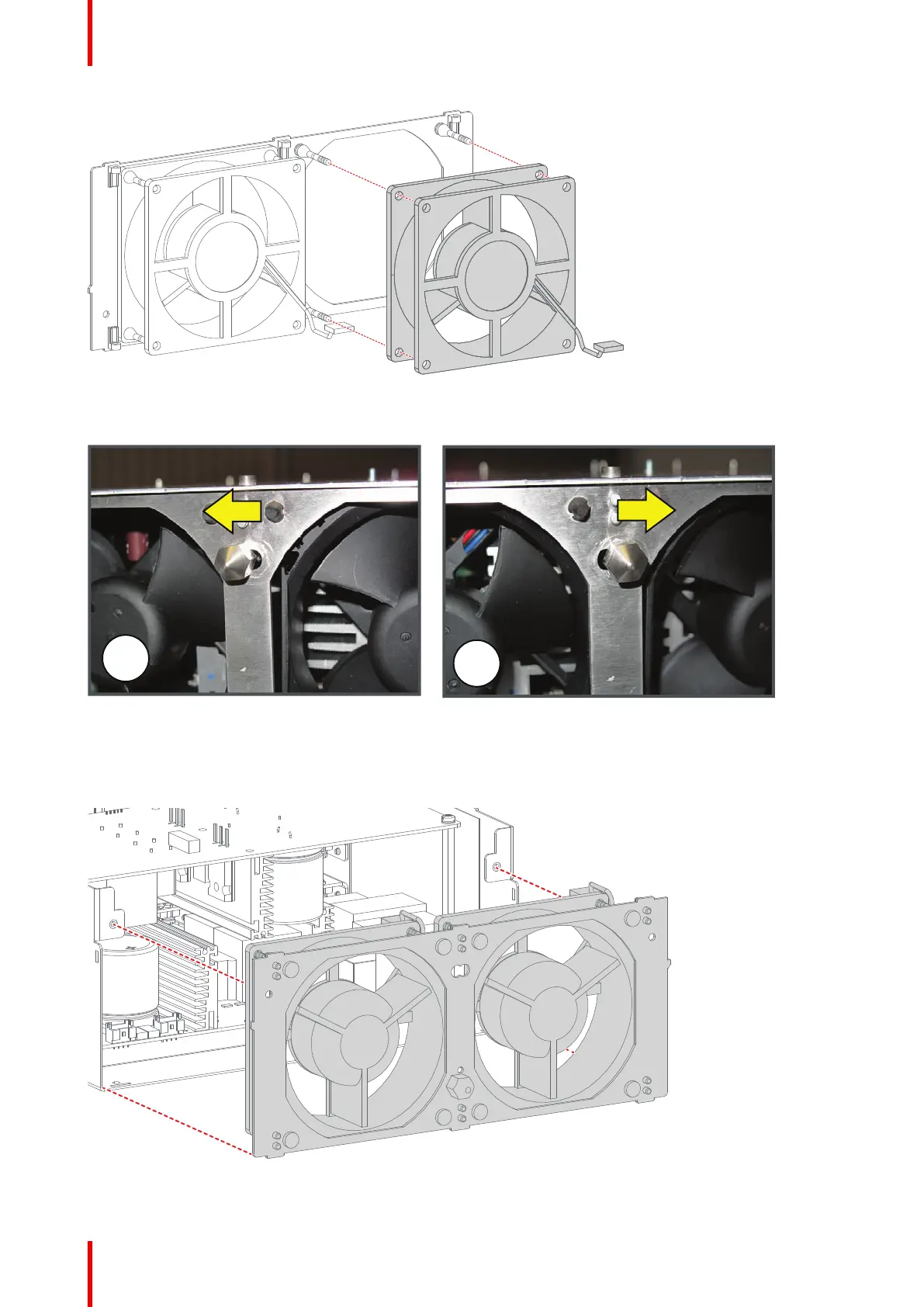

Image 6-19
2. Check if the mounting pin is set at its correct position.
Image 6-20: Mounting pin
A Position for the Driver Module
B Position for the Power Module
3. Place the fan assembly back into the LDM.
Image 6-21
Laser Driver Module (LDM)
