Barco DP2K SLP Series

R5906848 /04 DP2K SLP Series 73

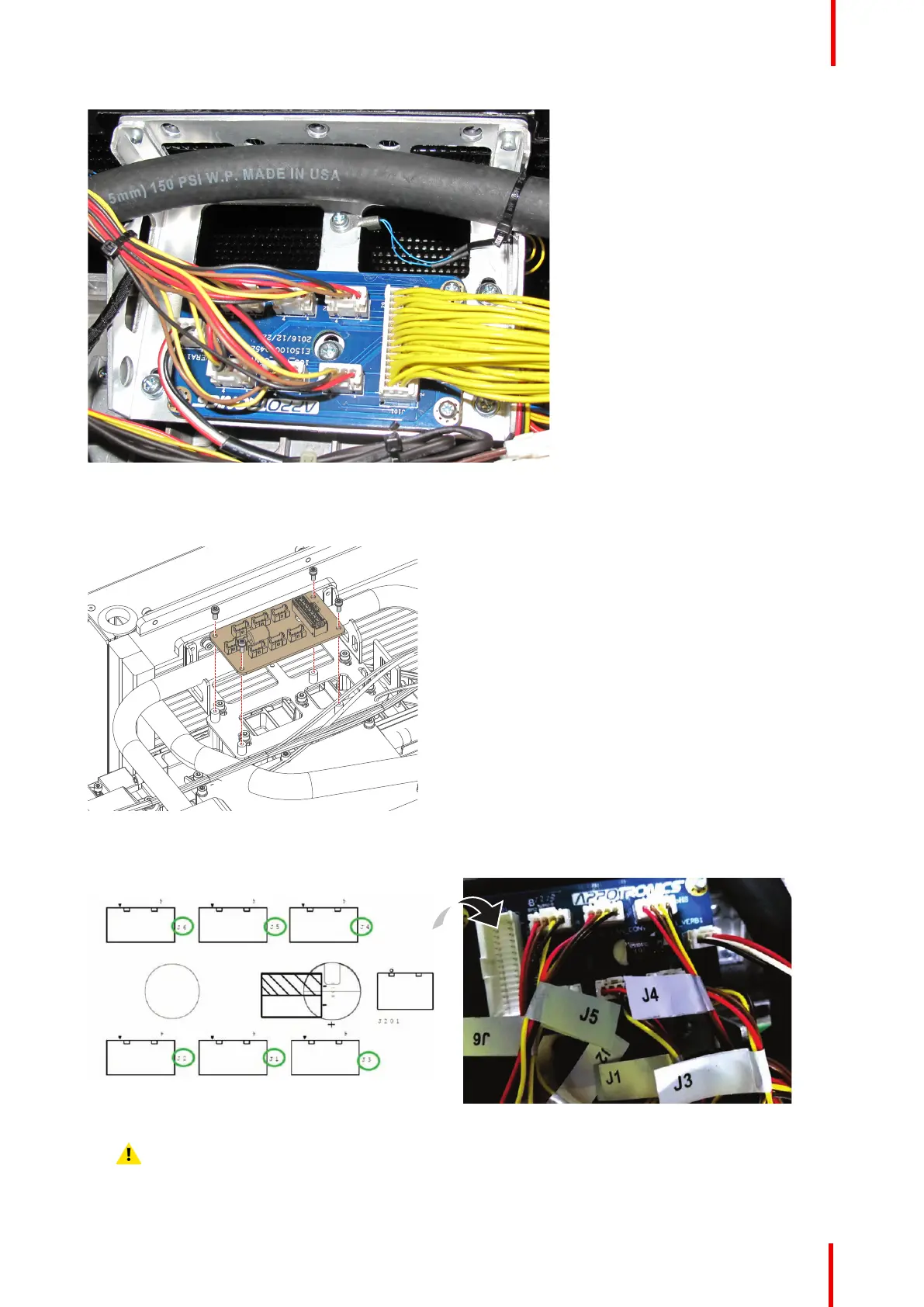

Image 7-28
3. Replace the Fan Interconnection Board as illustrated. Use a 2.5 mm Allen wrench to loosen and tighten the
screws.
Image 7-29
4. Reconnect all wire units to the Fan Interconnection board as illustrated.
Image 7-30
Caution: Pay attention to the labels on the fan wires and the fan connector numbers.
Laser Phosphor Light Source
