R5906848 /04 DP2K SLP Series 81

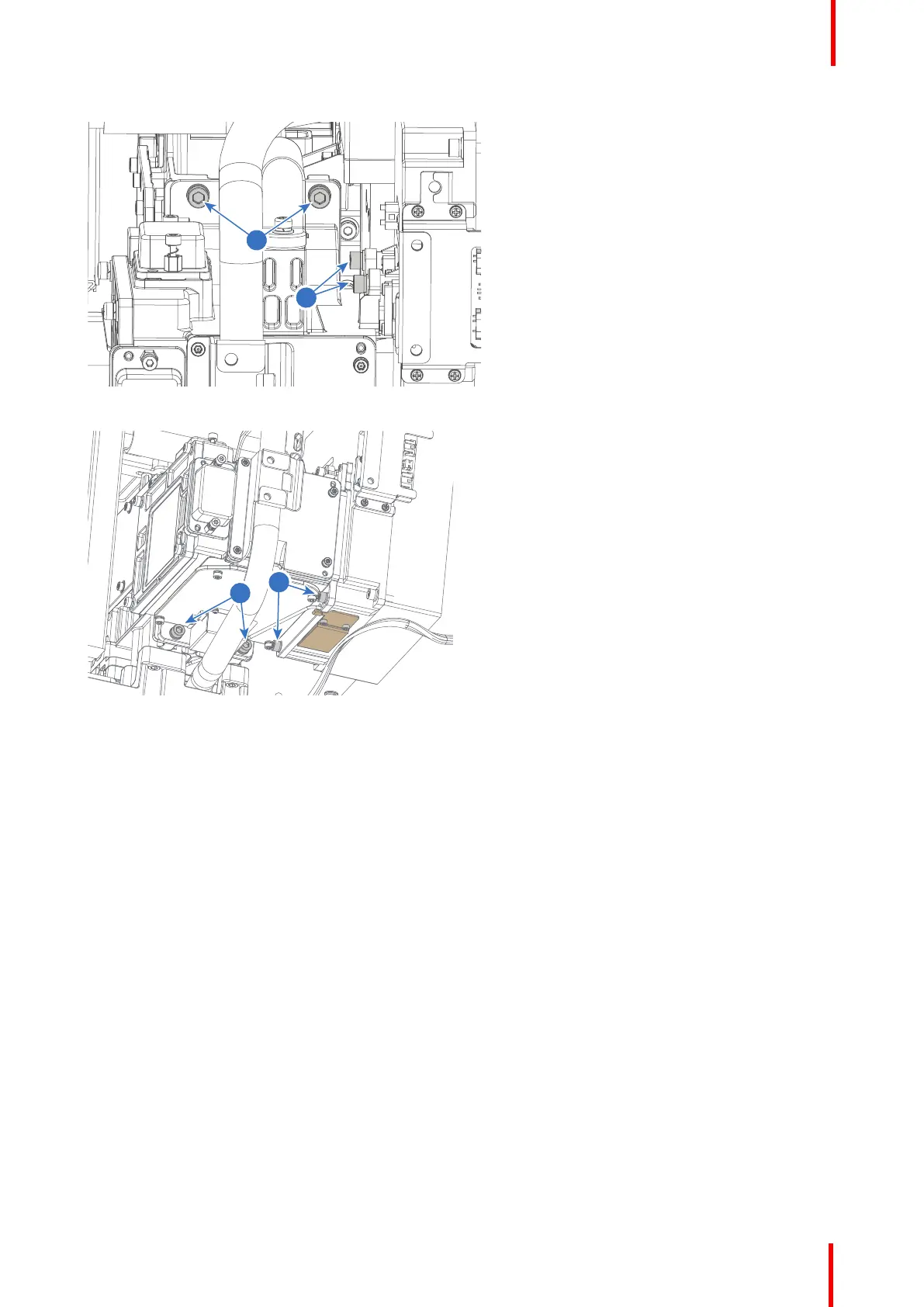

Image 7-45
Image 7-46
5. Reconnect the loose wiring to the safety switches.
6. Reconnect the wiring back to the Light Source interconnection board. For more info, see “Replacing the Light
Sensor Interconnection Board”, page 74.
7. Place the tubing into the protective holder of the combiner unit (reference 2).
