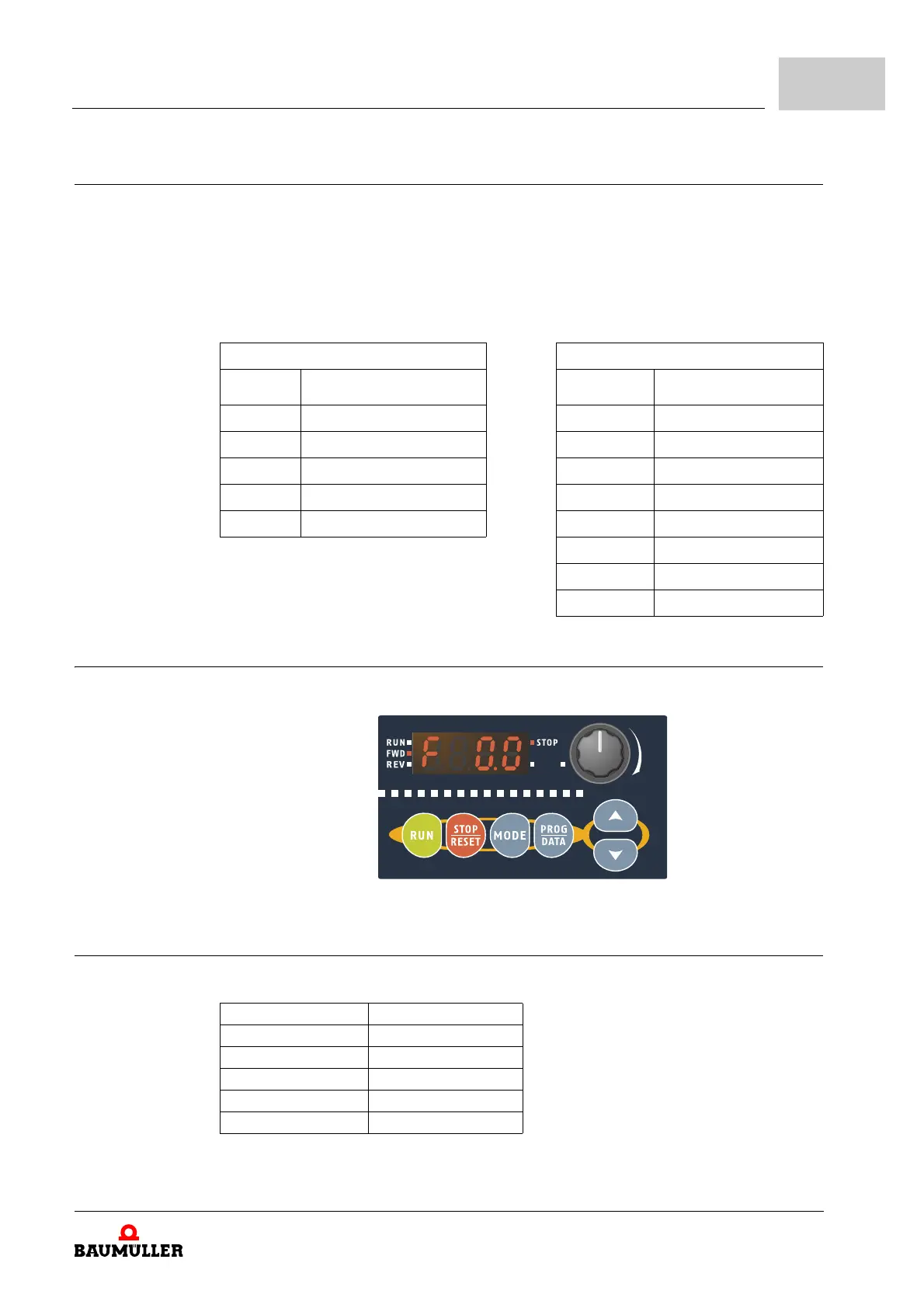

Baumuller b maXX BM1000 - Non-Fuse Circuit Breaker; Digital Keypad; Digital Keypad Cable

Spare parts and accessories
Manual b maXX
®
BM1000
Document No. 5.07003.04
133
of 174
B
B.5 Non-fuse circuit breaker
Per UL 508C, paragraph 45.8.4, part a:
m For 1-phase drives, the current rating of the breaker shall be 4 times maximum input
current rating.
m For 3-phase drives, the current rating of the breaker shall be 4 times maximum output
current rating.
(Refer to ZD.3 Electrical data– from page 143 for rated input/output current)
B.6 Digital keypad
BM1-HMI-01-00-00
Figure 71: Digital keypad
B.7 Digital keypad cable
1-phase 3-phase
Model Recommended
non-fuse breaker [A]
Model Recommended
non-fuse breaker [A]
BM1211 10 BM1412 5
BM1212 15 BM1413 5
BM1213 20 BM1414 10
BM1224 30 BM1425 15
BM1225 50 BM1426 20
BM1437 30
BM1438 40
BM1439 50
Model Length
K-HMI-BM1-006 0.6 m
K-HMI-BM1-010 1.0 m
K-HMI-BM1-020 2.0 m
K-HMI-BM1-030 3.0 m
K-HMI-BM1-050 5.0 m
