Baumuller b maXX BM1000 - Commissioning Example

Operation
Manual b maXX
®
BM1000
Document No. 5.07003.04
77
of 174
7

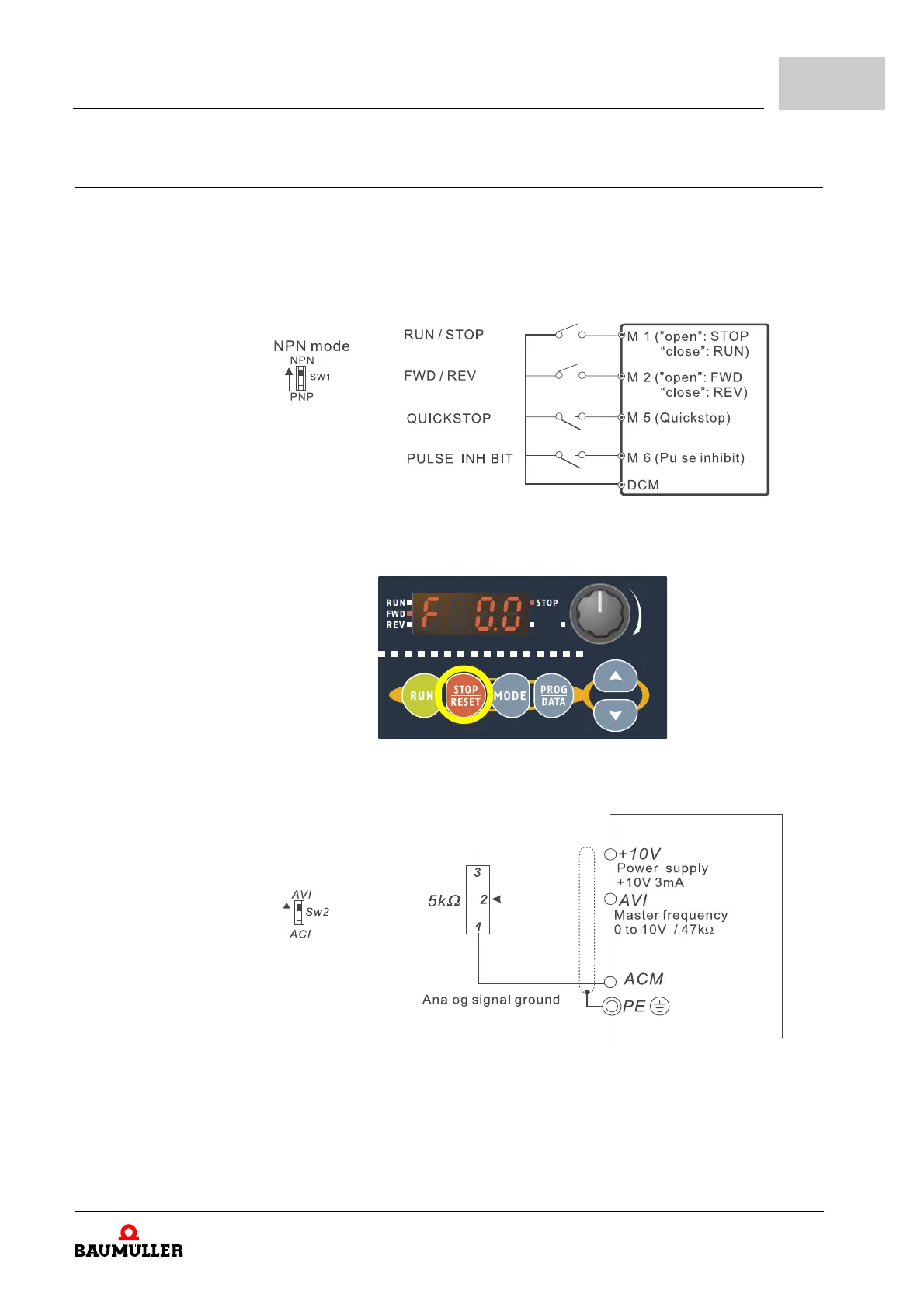

7.6 Commissioning example
m Source of first command
Required
functionality
RUN / STOP from multi-function input MI1
FWD (forward running)
REV (reverse running) from multi-function input MI2
Additional STOP from digital keypad
m First master frequency from analog voltage input AVI
