Baumuller b maXX BM1000 - Installation with Metal Separation; Installation Without Metal Separation

Installation space
Manual b maXX
®
BM1000
Document No. 5.07003.04 Baumüller Nürnberg GmbH
38
of 174
5.4

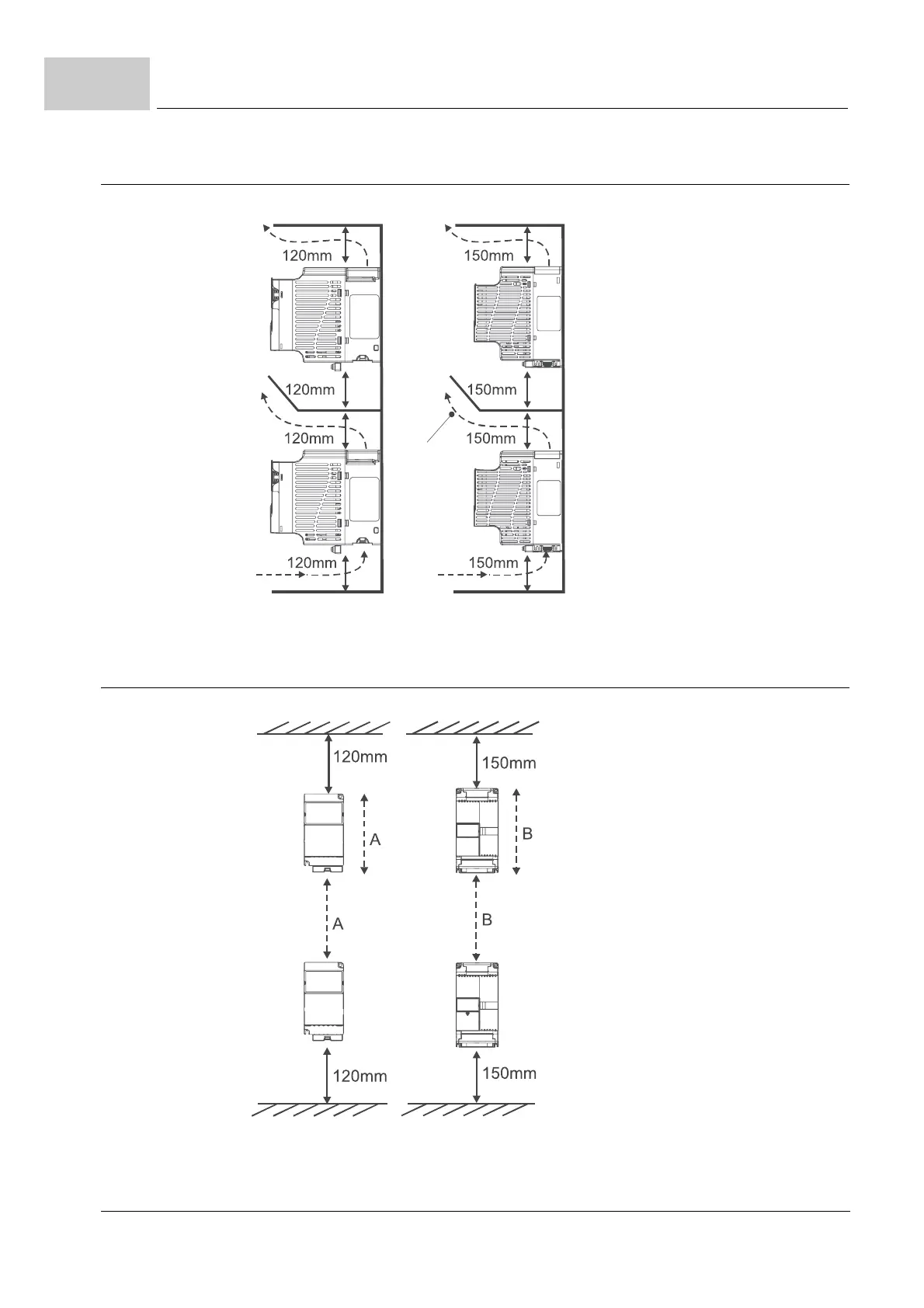

5.4.3 Installation with metal separation
Frame 1 Frame 2 and 3
Figure 16: Installation with metal separation
5.4.4 Installation without metal separation
Frame 1 Frame 2 and 3
Figure 17: Installation without metal separation
Air flow
