Baumuller b maXX BM1000 - Mounting Instruction

Mounting
Manual b maXX
®
BM1000
Document No. 5.07003.04
41
of 174
5

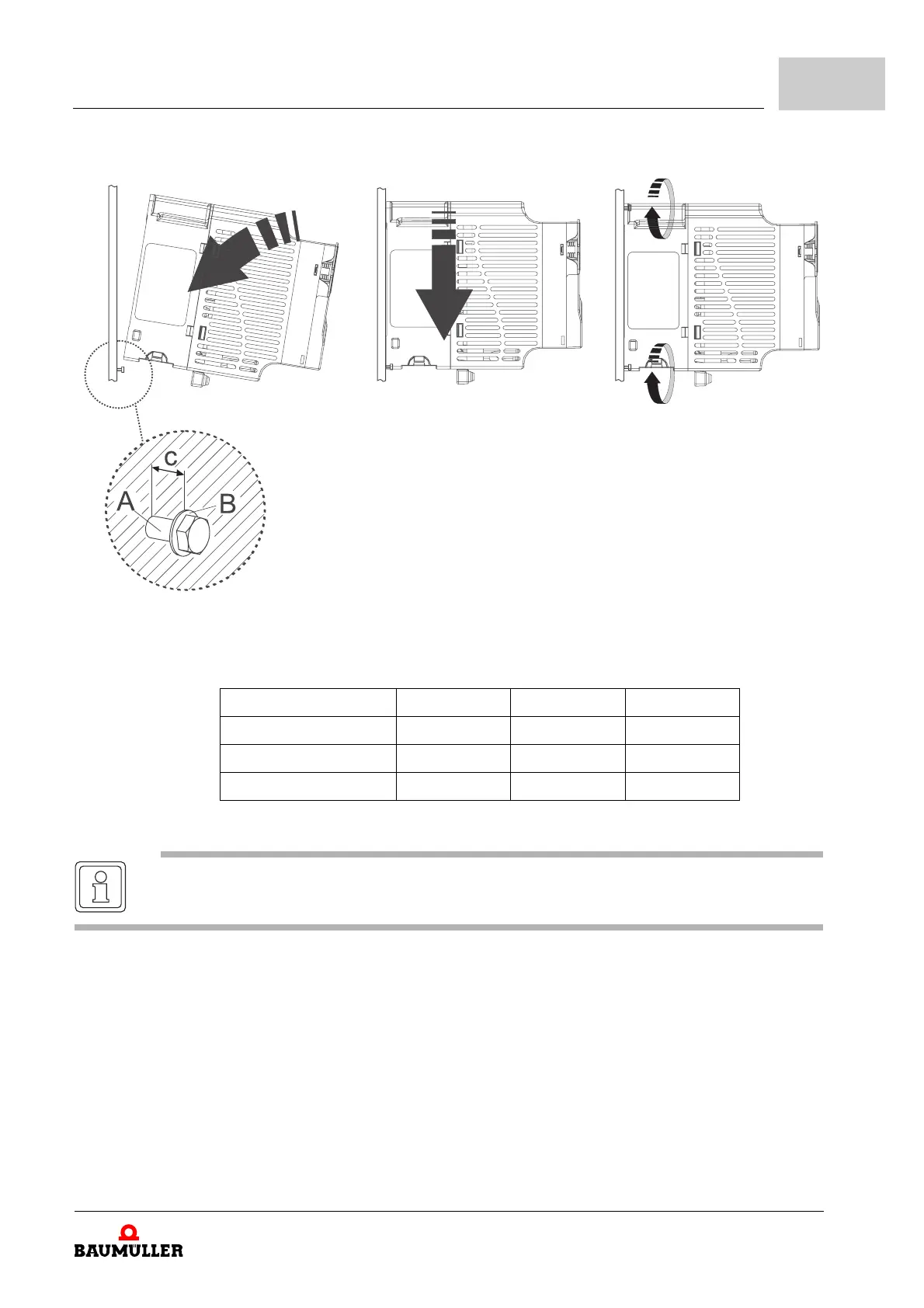

Figure 20: Mounting instruction
Device Frame 1 Frame 2 Frame 3
A - screws 2 x M4 4 x M4 4 x M5
B - washers 2 x (4.3 x 10) 4 x (4.3 x 10) 4 x (5.3 x 10)
C - mount spacing c = 12 mm c = 12 mm c = 16 mm
NOTE
Spare parts for DIN-rail mounting see ZB.8 DIN rail– on page 134.
