Installation
Manual b maXX
®
BM1000
Document No. 5.07003.04
53
of 174
6
m with external power

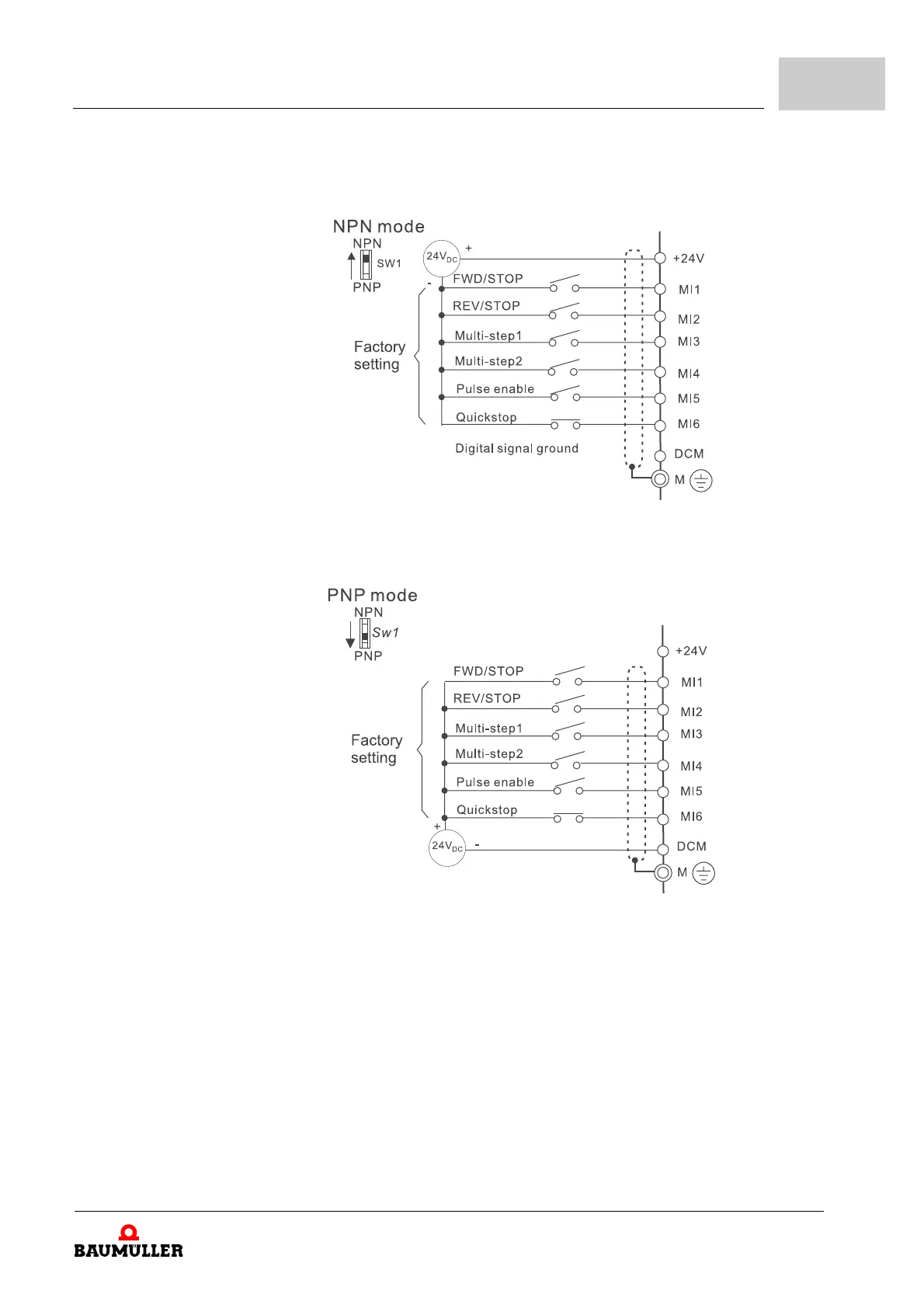

Figure 23: Connection NPN mode and PNP mode - with external power
