6.14 Connect the DC link of the devices in parallel
m The devices can absorb mutual voltage that generated to DC link when deceleration
m Enhance brake function and stabilize the voltage of the DC link
m The brake module can be added to enhance brake function after connecting in parallel
m Only the same power system can be connected in parallel
m It is recommended to connect 5 devices in parallel (no limit in power)

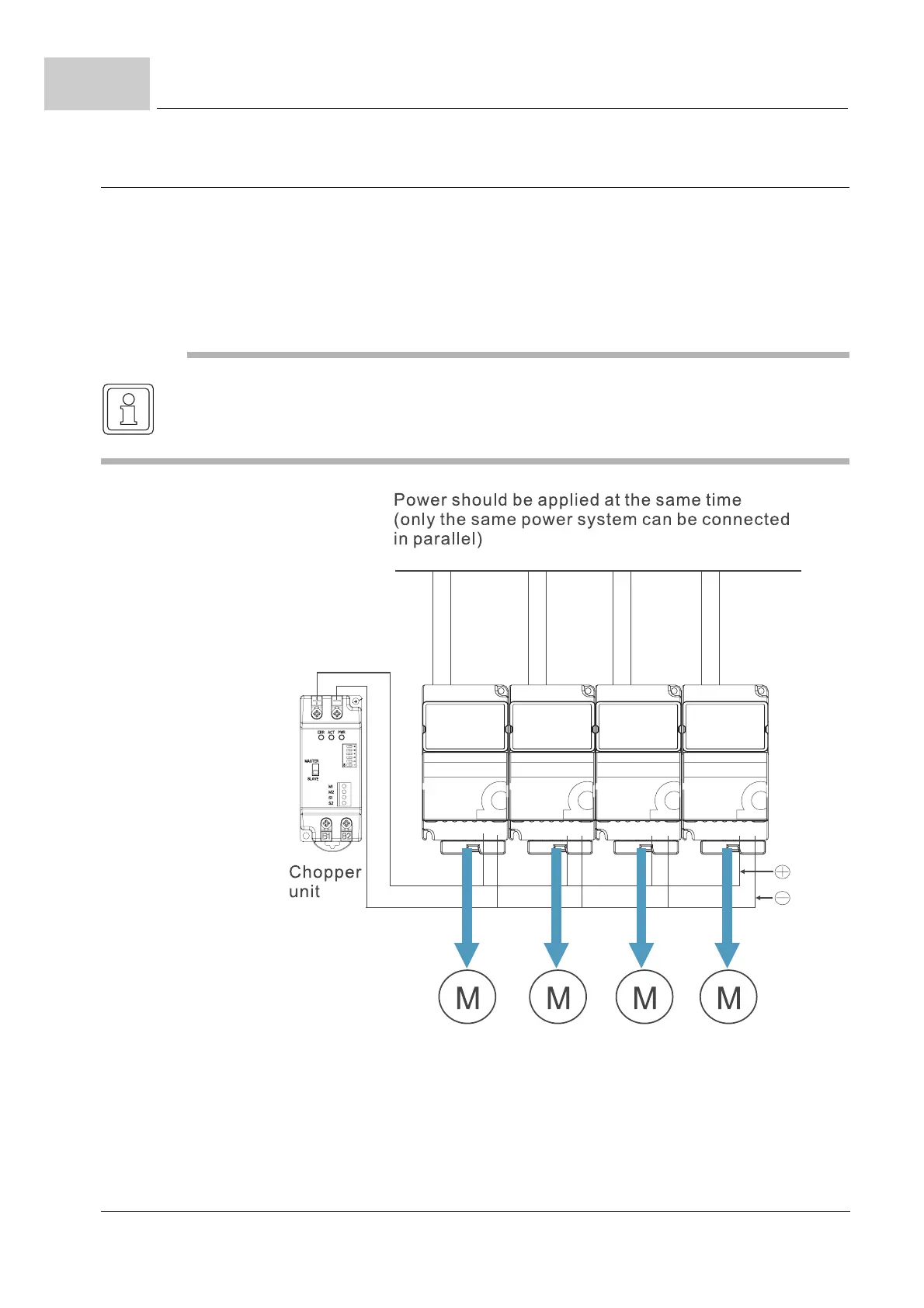

Figure 39: DC link of the devices in parallel
NOTE
Power should be applied at the same time (only the same power system can be connected in
parallel)
