Baumuller b maXX BM1000 - Main Terminals Connections

External connections
Manual b maXX
®
BM1000
Document No. 5.07003.04 Baumüller Nürnberg GmbH
58
of 174
6.10

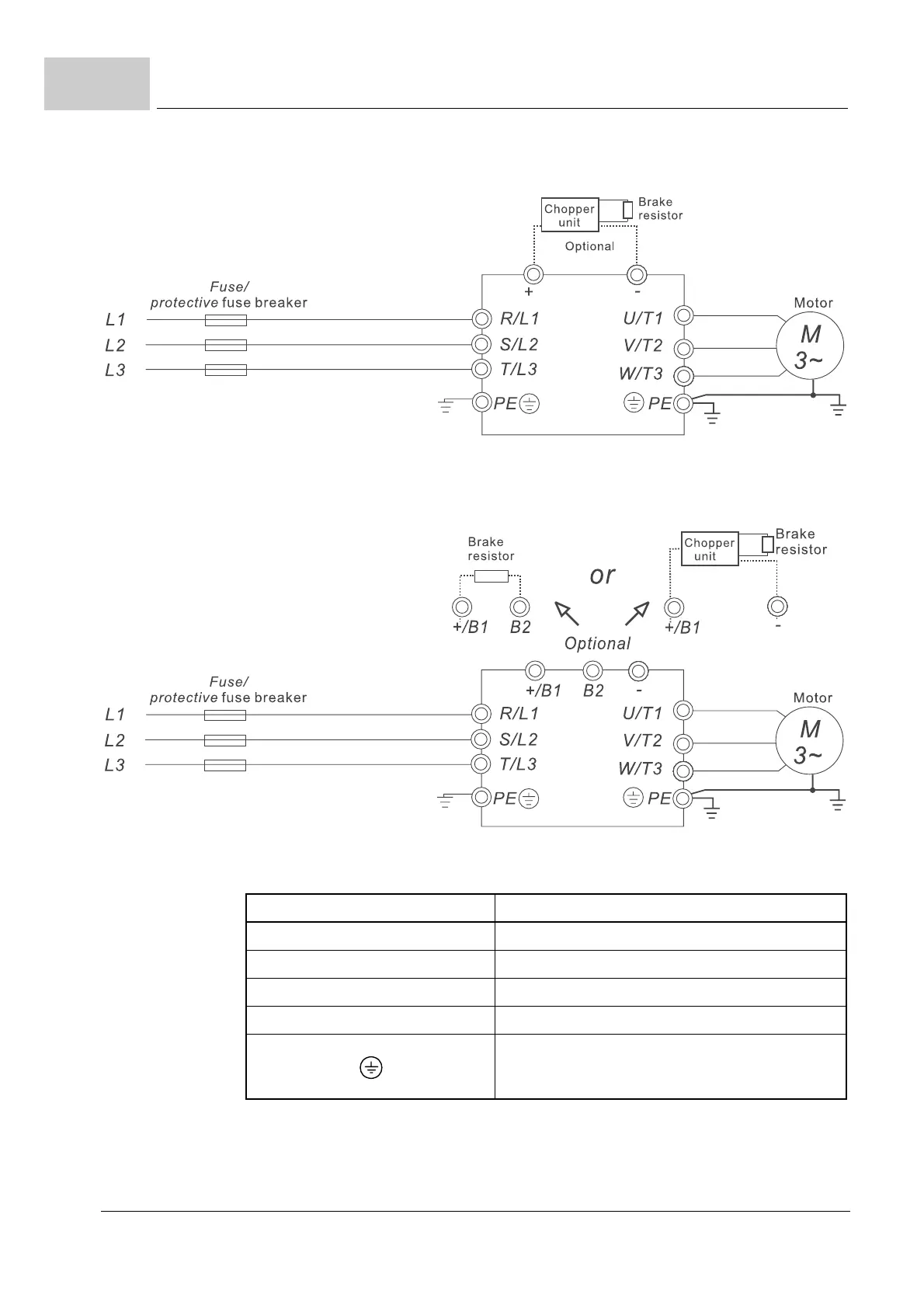

m BM1412, BM1413, BM1414 (Frame 1)
Figure 28: Main terminals connections 3
m BM1425, BM1426, BM1437, BM1438, BM1439 (Frame 2)
Figure 29: Main terminals connections 4
Terminal Symbol Explanation of Terminal Function
R/L1, S/L2, T/L3 Input terminals (1-phase/3-phase)
U/T1, V/T2, W/T3 Output terminals for connecting 3-phase motor
+/B1, B2 Connections for braking resistor (optional)
+/B1, - Connections for external chopper unit (optional)
Earth connection, please comply with local regu-
lations.
