6.10.1 Specifications of main circuit terminals
Frame 1 Frame 2 Frame 3

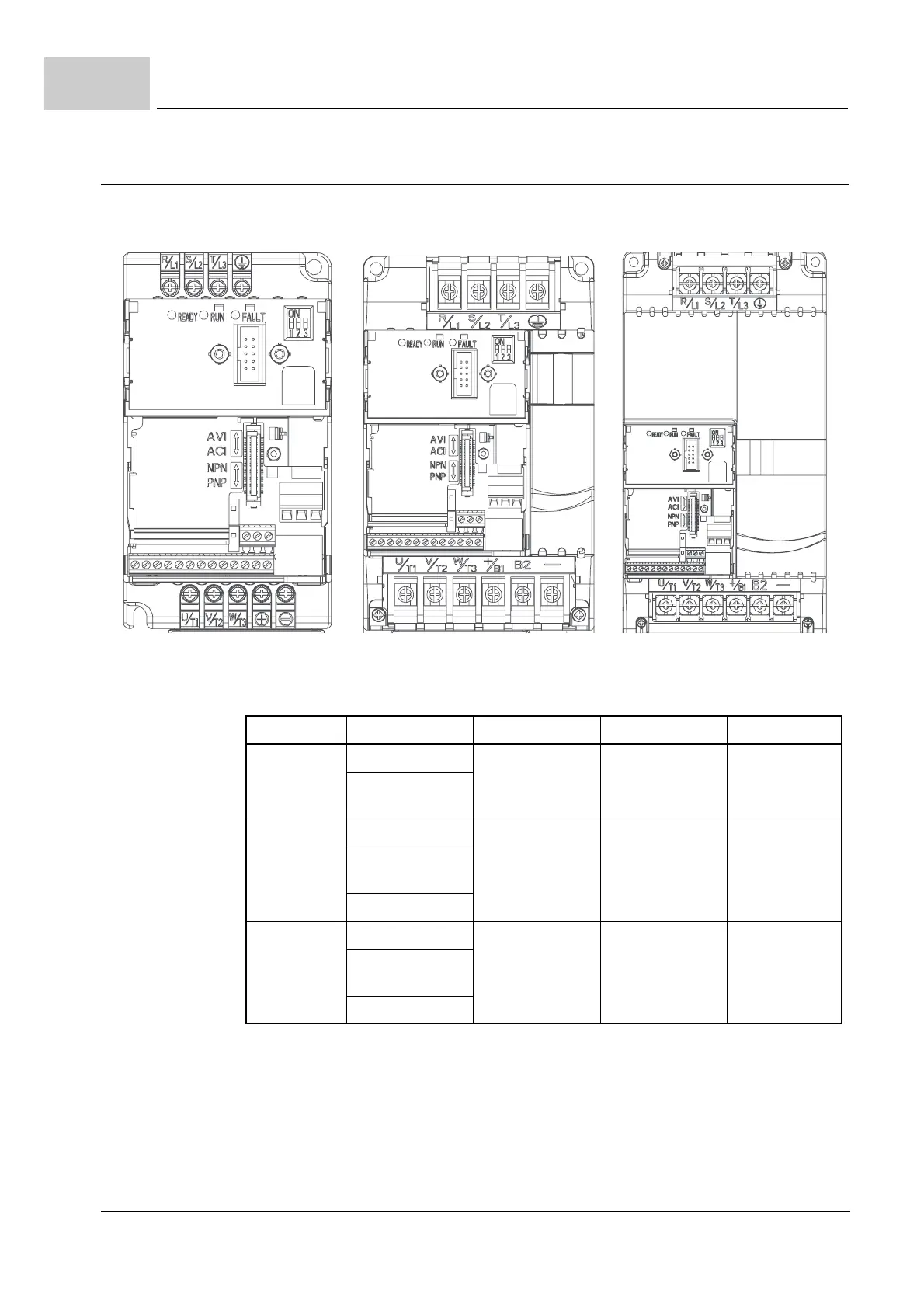

Figure 25: Mains circuit terminals
Frame Power terminals Torque Wire Wire type
1
R/L1, S/L2, T/L3
1.4 Nm
12-14 AWG,
(3.3-2.1 mm²)
Copper only,
75°
C
U/T1, V/T2, W/
T3, PE
2
R/L1, S/L2, T/L3
1.8 Nm
8-18 AWG,
(8.4-0.8mm²)
Copper only,
75°
C
U/T1, V/T2, W/
T3
+/B1, B2, -, PE
3
R/L1, S/L2, T/L3
3.0 Nm
8-16 AWG,
(8.4-1.3mm²)
Copper only,
75°
C
U/T1, V/T2, W/
T3
+/B1, B2, -, PE
