Baumuller b maXX BM1000 User Manual

Setting of address and baudrate
Manual b maXX
®
BM1000
Document No. 5.07003.04 Baumüller Nürnberg GmbH
154
of 174
E.5

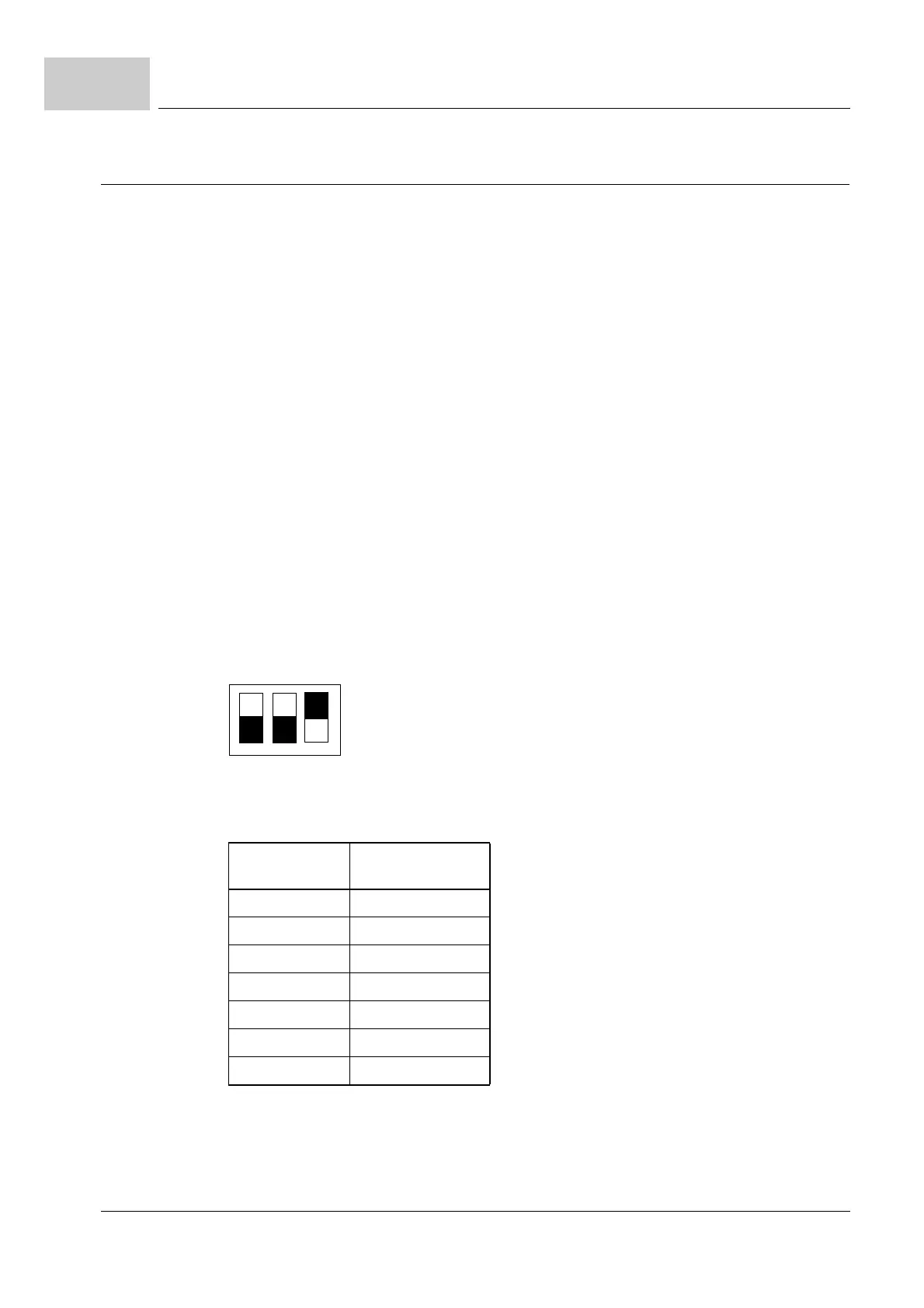

E.5.3 Setting of address via DIP switch with multiplier
P2148 ≠ 0, address setting via DIP switch with multiplier.
The DIP switch values 1 to 7 select P2141 to P2147. The CANopen address is P2148 multiplied
with the selected parameter (P2141 to P2147) and then copied to P0870 automatically.
The baudrate must be set via P2140 if the DIP switch is set ≠ 0.
The value set in P2140 is copied internal to P0871 and used as baudrate.
 DIP switch setting
The DIP switch must be set ≠ 0. The setting range is 1 to 7.
The DIP switch values 1 to 7 select P2141 to P2147. The CANopen address is P2148 multi-
plied with the selected parameter (P2141 to P2147) and then copied to P0870 automatically.
 CANopen address settings via DIP switch and multiplier
The multiplier parameter P2148 must be set ≠ 0.
Default value: P2148 = 8
The CANopen address is calculated as follows:
CANopen address = DIP switch ⋅ P2148
Example:
For example the DIP switch setting is 4 and the multiplier P2148 = 4
⇒ CANopen address = 16
2
0
2
1
2
2
1 2 3
ON
OFF
DIP switch
setting
Address storage
parameter
1 P2141
2 P2142
3 P2143
4 P2144
5 P2145
6 P2146
7 P2147
