CANopen
Manual b maXX
®
BM1000
Document No. 5.07003.04
153
of 174
D

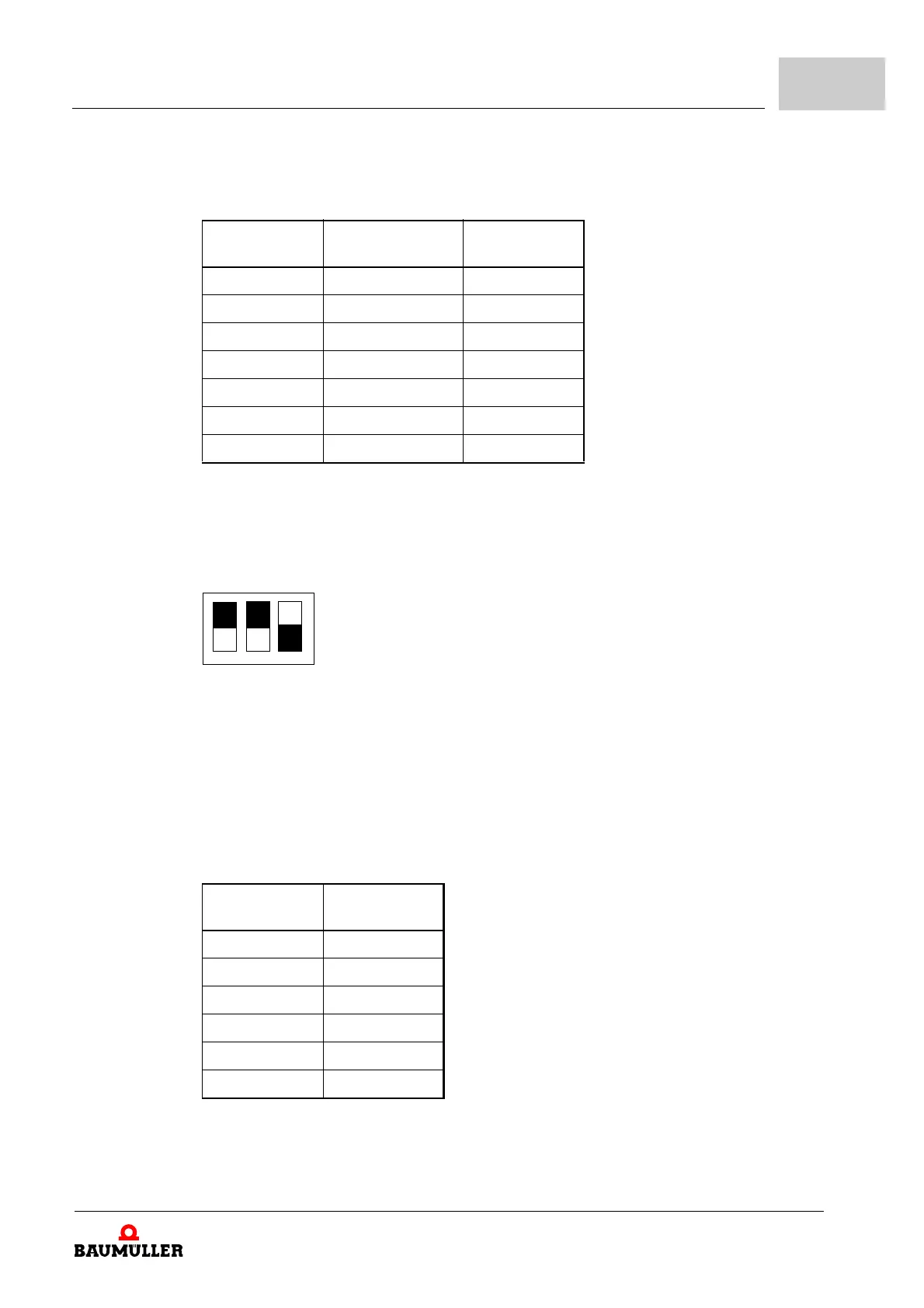

 CANopen address settings via address storage.
The multiplier parameter P2148 must be set to 0. This setting deactivates the multiplier.
Example:
DIP switch value = 3 is set, the address is read from P2143. The stored address value in P2143
(23 default value) is copied to P0870 and used as CANopen address.
The value range of parameters P2141 to P2147 is 0 to 127, the address range can be set from
1 to 127.
 CANopen baudrate setting via P2140
Default value: P2140 = 2
DIP switch
setting
Address storage
parameter
Default values
1 P2141 21
2 P2142 22
3 P2143 23
4 P2144 24
5 P2145 25
6 P2146 26
7 P2147 27
2
0
2
1
2
2
1 2 3
ON
OFF
P2140 Baudrate
kbit/s
0 1000
1 500
2 250
3 125
4 100
5 50
