7.5 Preparations before commissioning
Carefully check the following items before proceeding.
Make sure that the wiring is correct. In particular, check that the output terminals U/T1,
V/T2, W/T3 are NOT connected to power and that the drive is well grounded.
Verify that there are no short-circuits between terminals and from terminals to ground
or mains power.
Check for loose terminals, connectors or screws.
Verify that no other equipment is connected to the motor.
Make sure that all switches are OFF before applying power to ensure that the device
doesn't start running and there is no abnormal operation after applying power.
Make sure that the front cover is correctly installed before applying power.
Do NOT operate the device with humid hands.
Check the following items after applying power: The display without digital keypad
should be as follows.

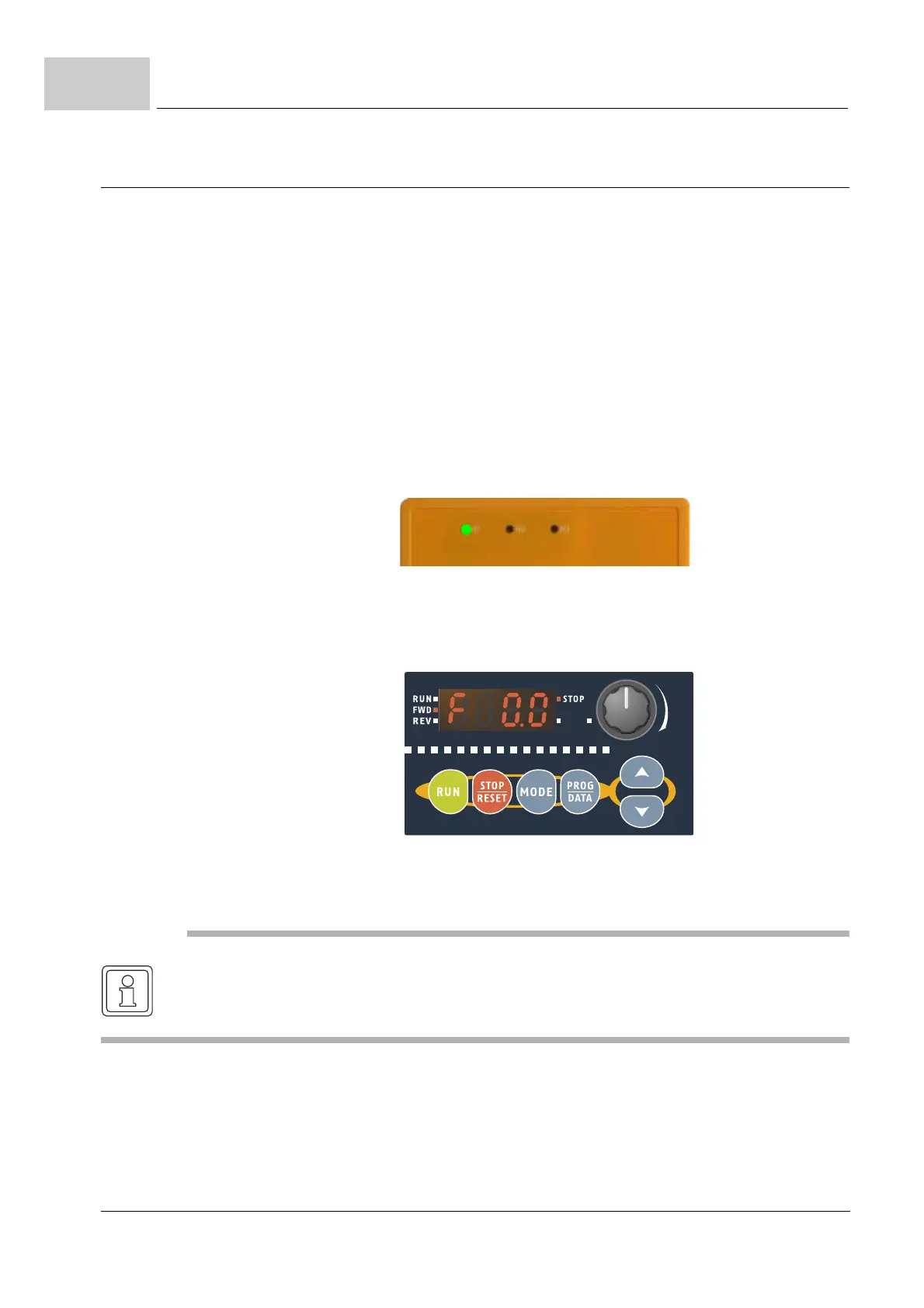

When power is applied. LED „H1“ should light up
Figure 45: Device ready without digital keypad
The display with digital keypad should light up as follows (normal status with no error)
When power is ON, it will is displayed „F0.0“ and LED „STOP“
and „FWD“ should light up
Figure 46: Device ready digital keypad
H1 H2 H3
NOTE
If the drive has a built-in fan, it should run. The factory setting of Fan control P0024 = 0 (fan
always on).
