n Frame 3 (5,5 - 11,0 kW)

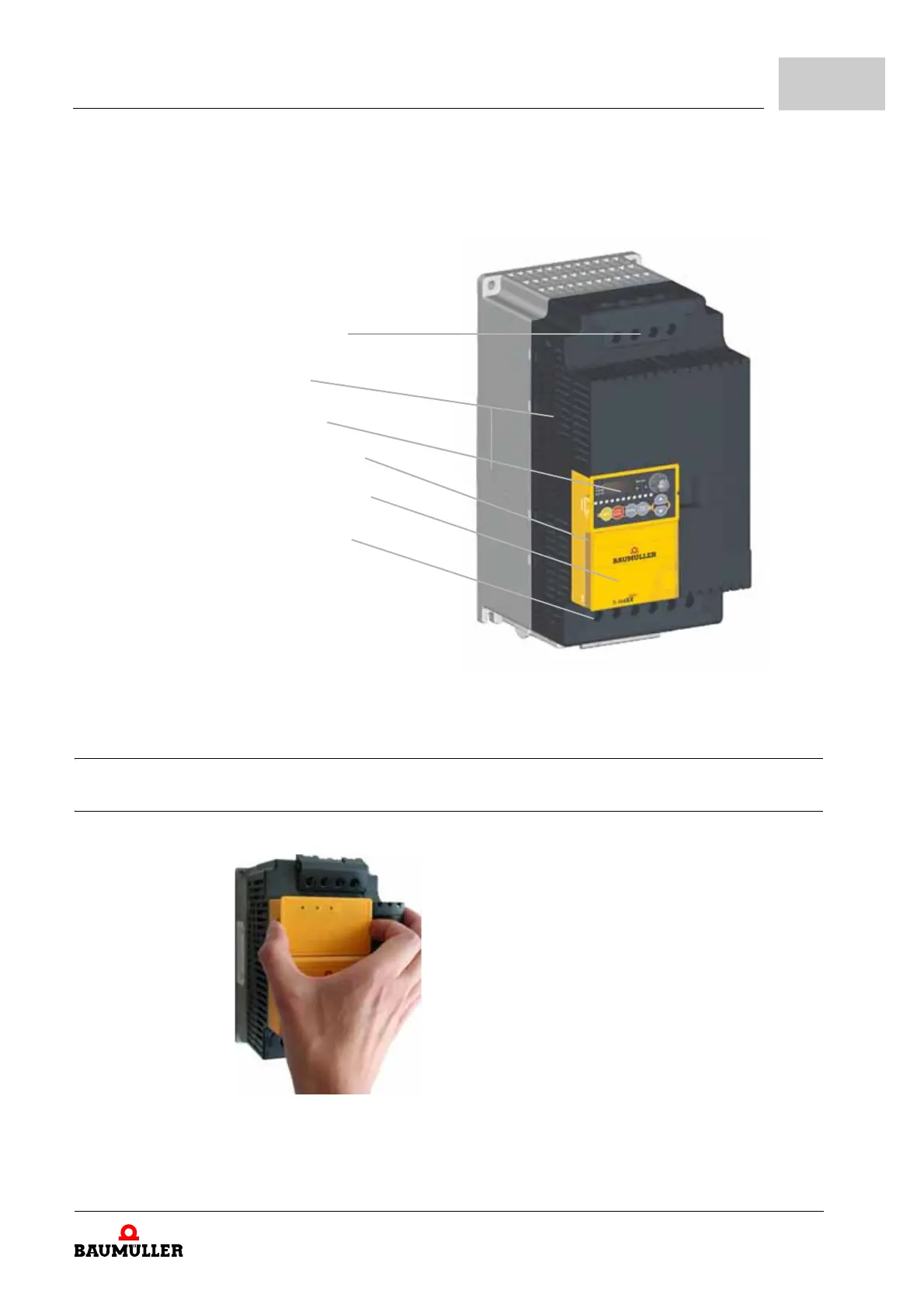

Figure 7: b maXX
®
BM1000 Frame 3
4.5 Preparation for installation and wiring
4.5.1 Remove keypad
Figure 8: Remove keypad
Input Terminals
(R/L1, S/L2, T/L3)
Housing
Keypad
Control board case
Control board cover
Output terminals
(U/T1, V/T2, W/T3)
