6.10.6 Grounding terminals
 Make sure that the leads are connected correctly and the b maXX
®
1000 is properly
grounded. (Ground resistance should not exceed 0.1Ω.)
 Use ground leads that comply with local regulations and keep them as short as possi-
ble.
 Multiple b maXX
®
1000 units can be installed in one location. All the units should be
grounded directly to a common ground terminal, as shown in the figure below.

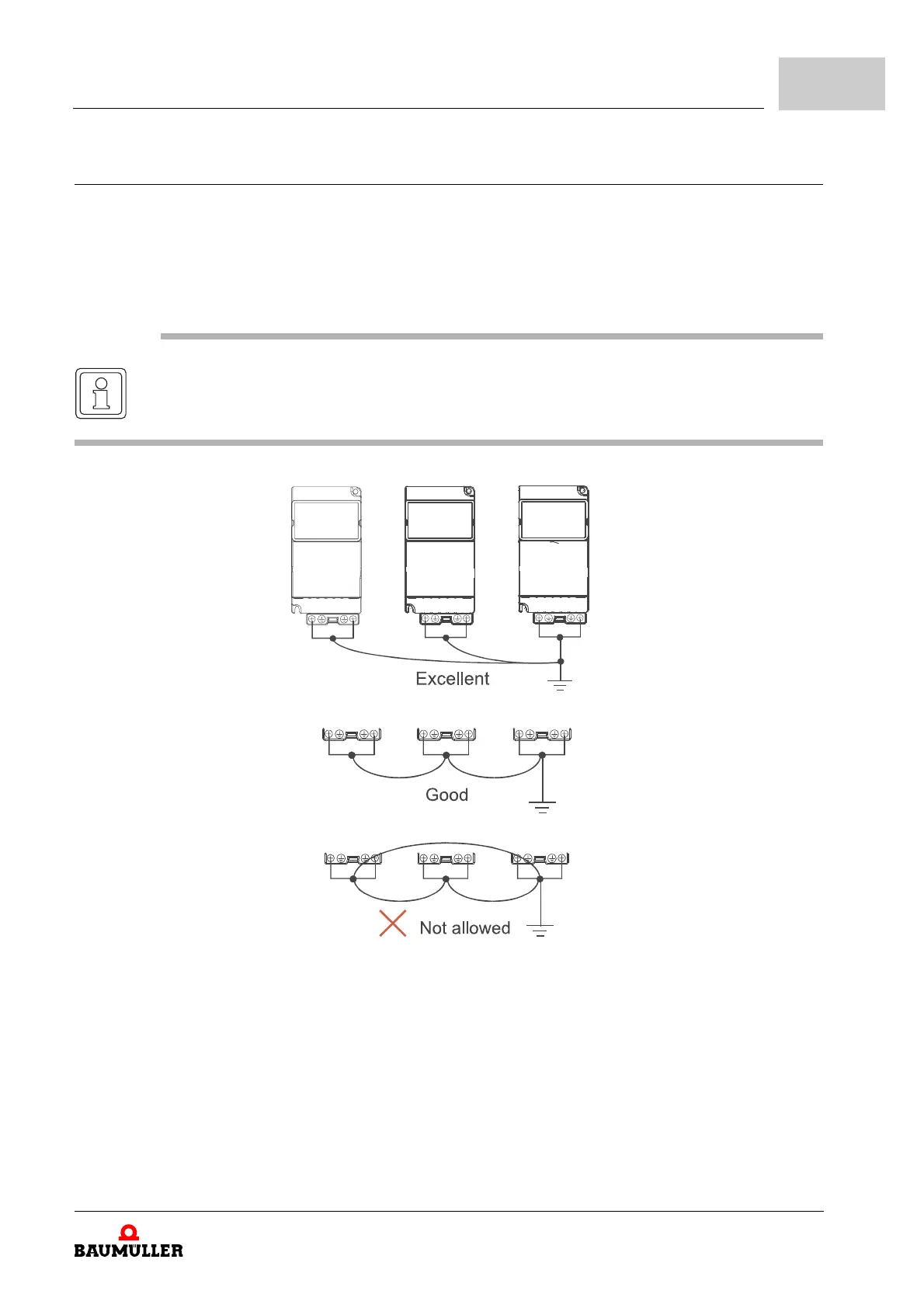

Figure 31: Connecting grounding terminals
NOTE
Ensure there are no ground loops.
